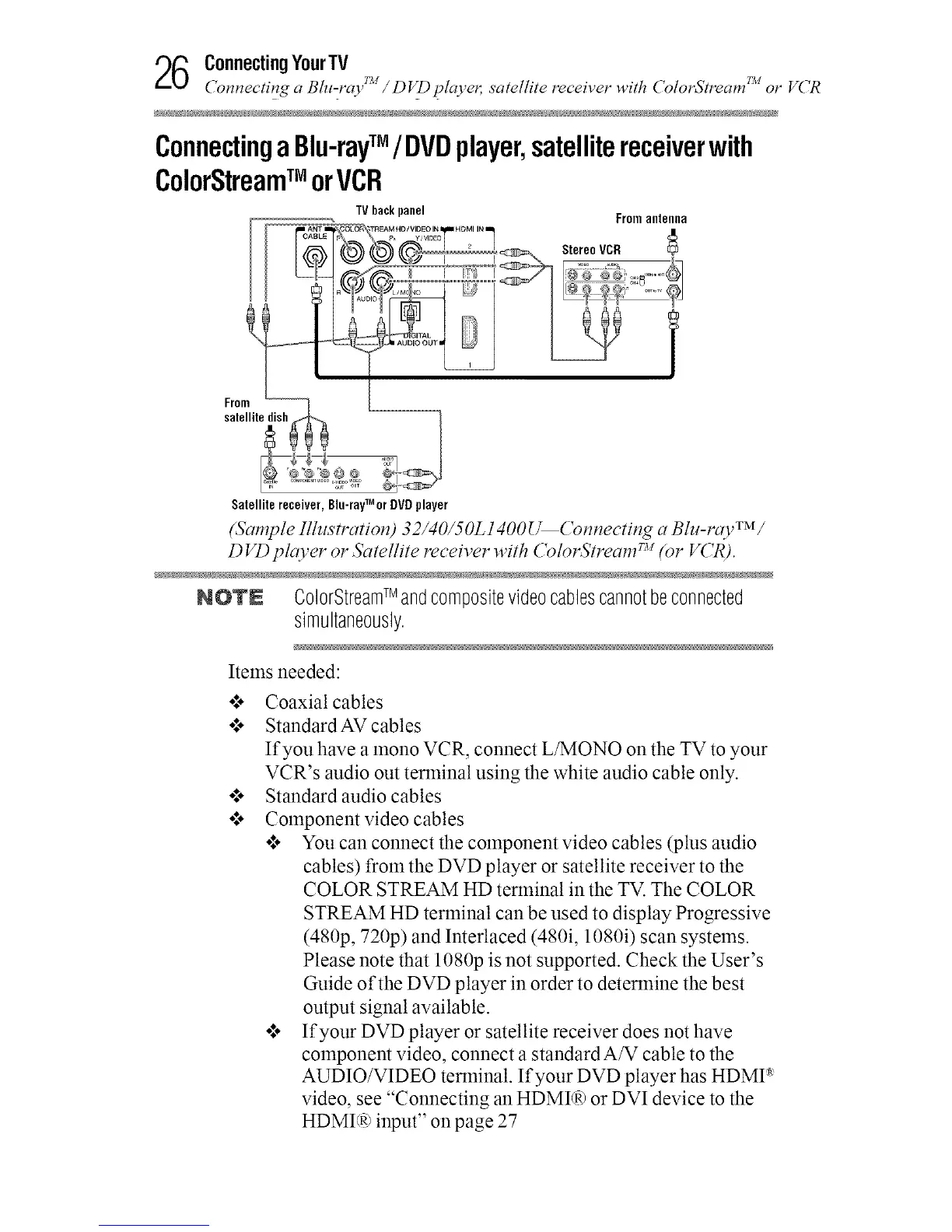

6 ConnectingYourTV
Connecting a Bht-rco 'a_I/ D VD player, satellite receiver with ColorStream_ oi"VCR
ConnectingaBlu-rayTM / DVDplayer,satellitereceiverwith
ColorStreamTM orVCR
TV back panel From antenna
_ COLOR _TREAMHD/VIDEO IN HDMI IN
Fra
satellite_sh _ I
Satellitereceiver,Blu-rayTM orDVD player
(Sample Illustration) 32/40/50L1400_Connecting a B/u-ravTM /
D VD pl_o,'eror Satellite receiver with ('olorStream TM (or VCR).
NOTE OolorStreamTM andcompositevideocablescannotbeconnected
simultaneously.
Items needed:
Coaxial cables
Standard AV cables
If you have a lnono VCR, connect L/MONO on the TV to your
VCR's audio out terminal using the white audio cable only.
Standard audio cables
Component video cables
o,**You can connect the component video cables (plus audio
cables) from the DVD player or satellite receiver to the
COLOR STREAM HD terminal in the TV. The COLOR
STREAM HD terminal can be used to display Progressive
(480p, 720p) and Interlaced (480i, 1080i) scan systems.
Please note that 1080p is not supported. Check the User's
Guide of the DVD player in order to determine the best
output signal available.
o:* If your DVD player or satellite receiver does not have
component video, connect a standard A/V cable to the
AUDIO/VIDEO terminal. If your DVD player has HDMT*
video, see "Connecting an HDMI(R)or DVI device to the
HDMI(R_input" on page 27
