26 1600XPi Series UPS Installation and Operation Manual – 60616-014
12 LCD Touchscreen Layout
The touchscreen serves as input and display. Touch the active portion of the display to execute a command.
12.1 Startup Display
The default opening screen for the UPS is the Main screen. The operator can begin operating the UPS immediately by
pressing the RUN key.
Only the Main and Settings tab screens allow operator input. The Monitor and Records display screens are read-only.
No data can be entered in these screens.
From the Main screen, the UPS can be placed On-Line by pressing RUN, or placed in Bypass Mode by pressing STOP. A
key status indicator at the upper right-hand corner of each key indicates which key is active: a dot indicates that key is ac-
tive; no dot indicates that key is not active. See the illustration below.
The Settings screen allows modication of the UPS operating parameters.
At the top of the display are four status indicators: % Load, Battery Information, UPS System Status, and System Time.
At the top left of the display are a bank of four touch-sensitive keys:
Home – Pressing HOME key returns the display to the top menu of the currently selected tab.
Security Level – Pressing the Security Level key activates the log-in security screen.
(Speaker) – Pressing the Speaker key will disable/enable the audible alarm.
Touchscreen Lock – Locks touchscreen except for this key.

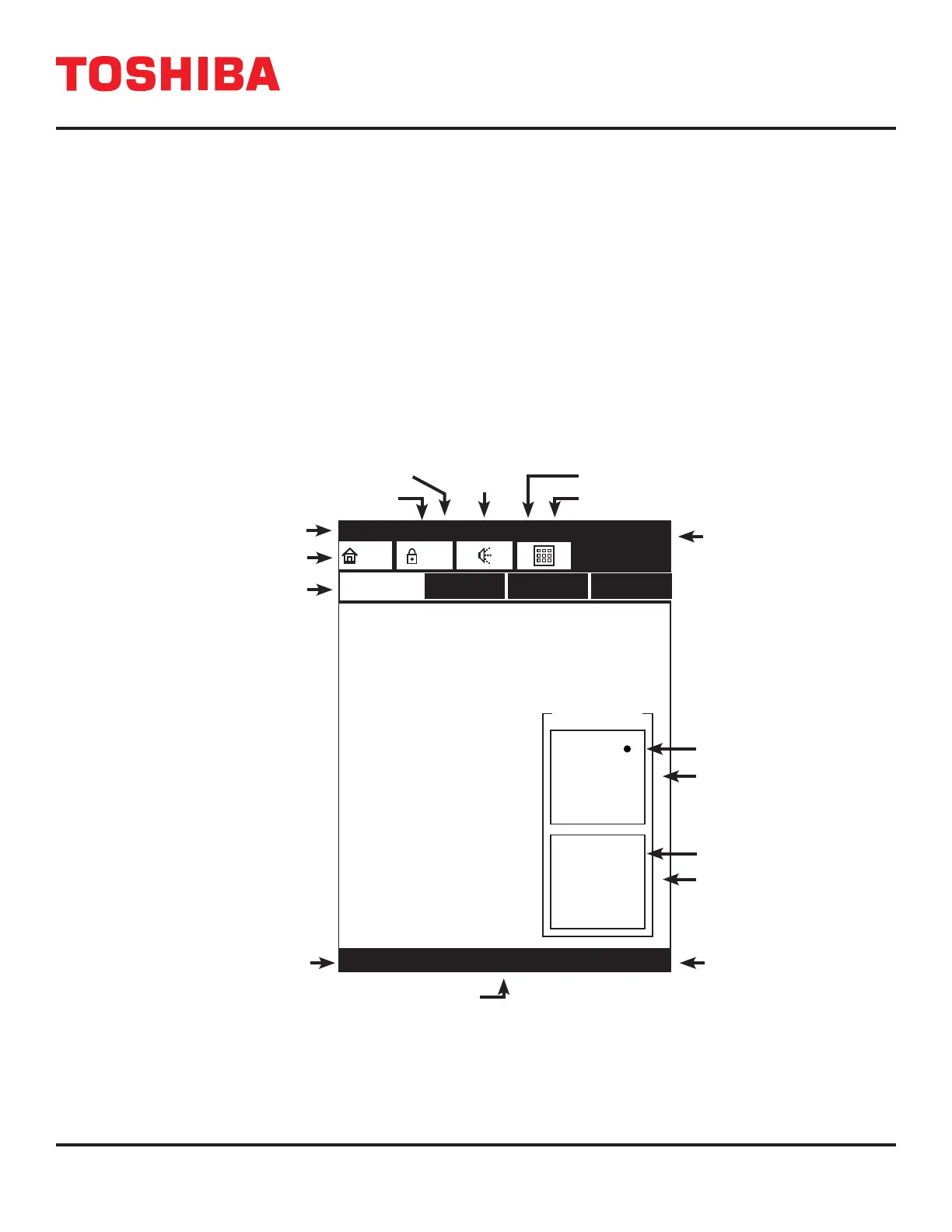

LCD TOUCHSCREEN
DISPLAY LAYOUT
UPS System Status
Warning Code
UPS
System
Mode
Fault Code
12-Hour
Clock
Security Level: USR – User
ADM – Administrator
Function Tabs
Home Page
RUN key
STOP key
On-Line
DVCOH
ASYN
1600XP
On-Line UPS
UPS Serial Number
20080112345
UPS Typeform
UXPB2B100C6
RUN
STOP
UPS Controls
Speaker
On/O
Main Monitor Settings Records
12:35 PM
INV
HOME
USR
Touchscreen lock
96%
100%
% FullLoad
Battery Information
Key Status Indicator
(UPS is in On-Line mode)
Key Status Indicator
(UPS is NOT in Bypass
mode)
To Next Page
