46 1600XPi Series UPS Installation and Operation Manual – 60616-014

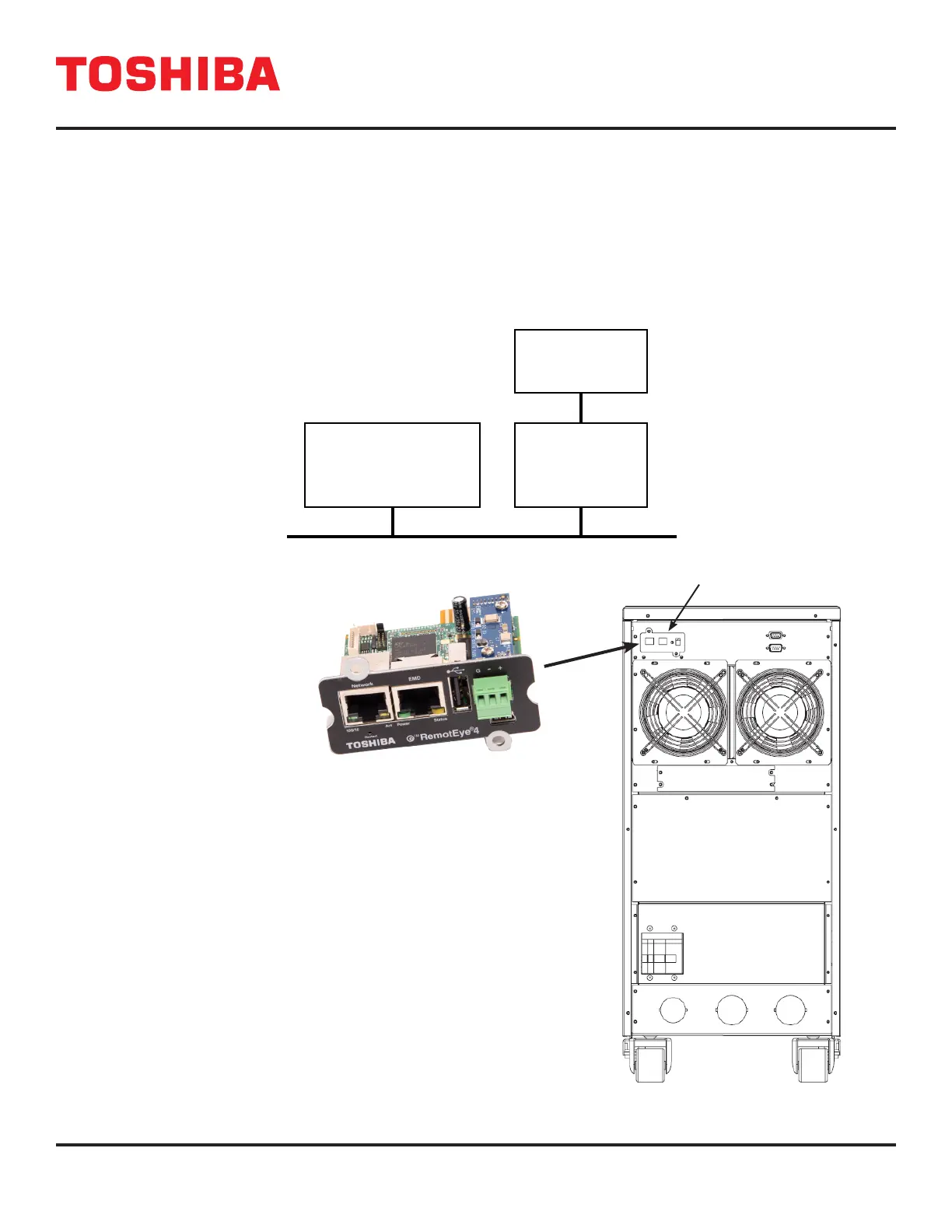

18.4 RemotEye Network Card
The RemotEye 4 is the network communication card for the Toshiba UPS. The RemotEye communications card is pre-
installed as a standard with the 1600XPi.
This card slides into a slot located on the back side (See illustration) of the UPS. The card provides a network, or LAN-
based communication interface for the UPS. When installed, the UPS can be managed remotely using the common SNMP
and HTTP web-based network protocols. The following diagram shows the ow of the Network Management Station.
To install the RemotEye network card, Follow the steps below:
1. Turn the UPS o󰀨 using the proper shutdown procedure.
2. Remove the blank cover plate over the extension option slot.
3. Slide the RemotEye printed circuit board into the extension option slot of
the UPS.
4. Secure the printed circuit board using the UPS supplied screws.
5. See the RemotEye User Manual, P/N 62330 (RemotEye III), or P/N 9098
(RemotEye 4), to complete the hardware setup and software setting for
proper RemotEye operation.
NETWORK ETHERNET BACKBONE
NETWORK MANAGEMENT
STATION OR PC WITH
WEB BROWSER
REMOTEYE
NETWORK CARD
TOSHIBA UPS
Mounting
Mounting
Screws
Receptacle
Panel
Connector
RemotEye Card
REMOTEYE NETWORK CARD LOCATION
