54 1600XPi Series UPS Installation and Operation Manual – 60616-014
22 Optional Receptacle Panel Installation Instructions
These are the instructions for installing the optional Modular Output Receptacle Panels for the1600XPi Series UPS.
WARNING: The work outlined in these instructions is to be performed only on a completely de-energized UPS system.

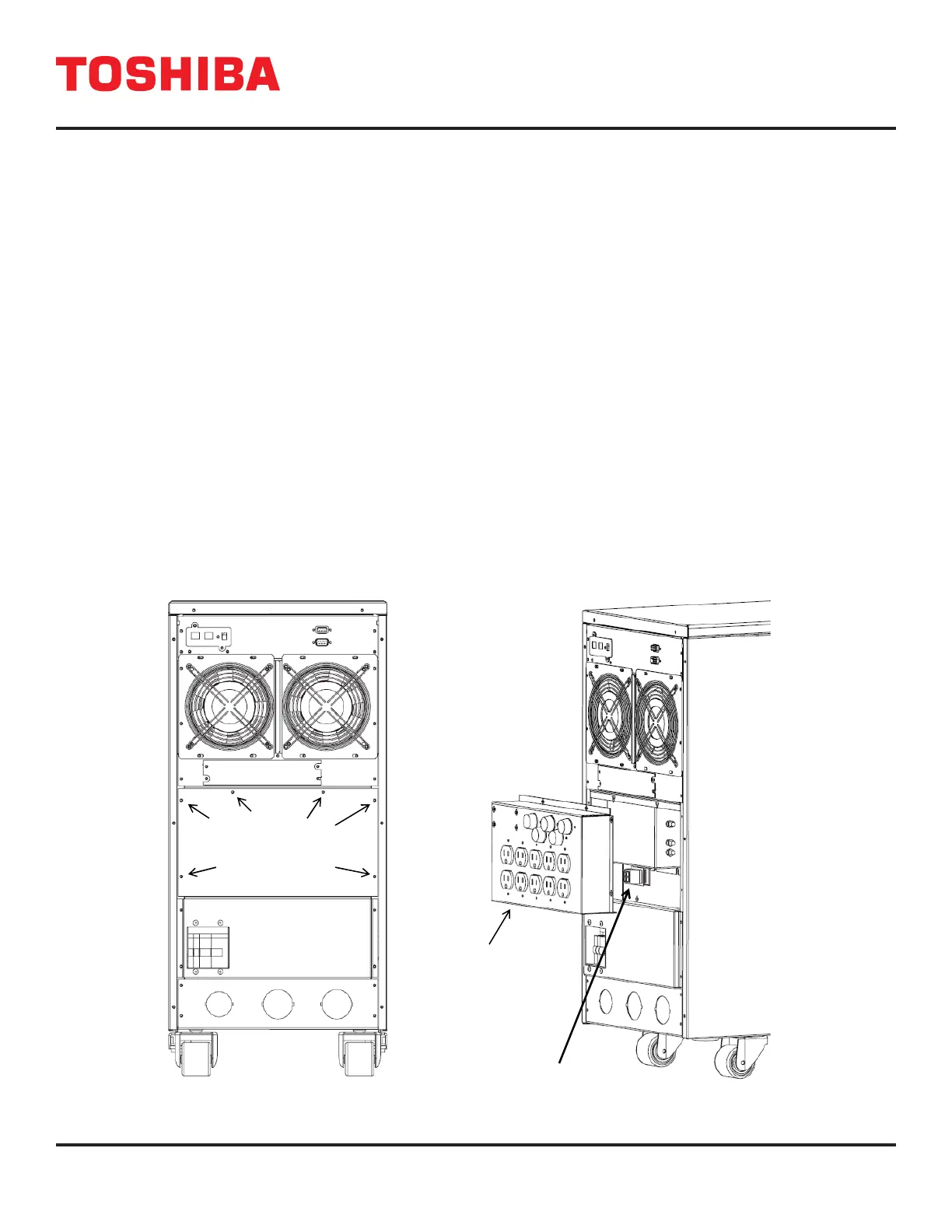

Refer to Figure 1 for location of UPS referenced material. Refer to Figure 2 for material referring to the receptacle panel
module. There are dierent panels available depending on the UPS typeform.
Step 1: Remove the modular receptacle panel cover plate.
On the rear of the UPS, locate the cover plate for the receptacle panel module interface
(See Figure 1).
Remove the 6 mounting screws.
Remove the cover plate. A square-shaped plug will be exposed.
Step 2: Snap-In Output Receptacle modular panel.
Carefully mate the square-shaped connector on the UPS to its matching counter part on the rear of the modular panel.
Step 3: Mount the receptacle panel.
Attach the screws removed from the cover plate through the mounting holes of the receptacle panels and back into the UPS
mounting points.
Screws
Receptacle
Panel
Connector
Figure 1 Figure 2
