271600XPi Series UPS Installation and Operation Manual – 60616-014
The second row of keys are the function tabs.
At the bottom of the display three event codes display the latest operational information: Faults, Warnings, and the current
UPS System Mode. (See page 57 through page 60)

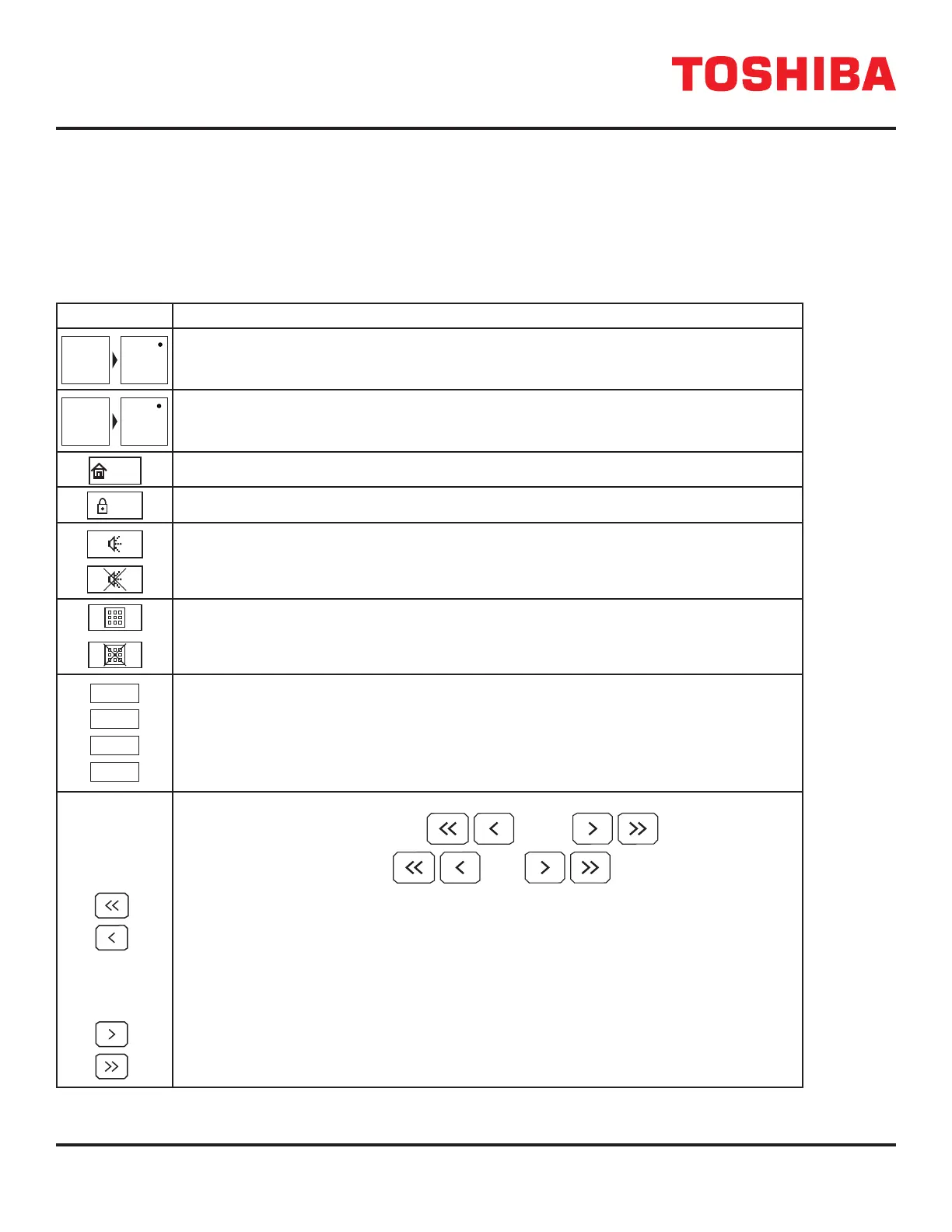

12.2 Operating Keys
The icons listed in the table below identify the touch-sensitive keys on the main touchscreen. The keys are di󰀨erent types
of controls that can be activated by pressing that area of the touchscreen.
Key Functional Description
Run Key - Press and hold the key 1-2 seconds (until the UPS ‘beeps’) to put the UPS in
On-Line mode. The active status indicator (upper right dot) will appear on the RUN key
and disappear from the STOP key.
Stop Key - Press and hold the key 1-2 seconds (until the UPS ‘beeps’) to put the UPS in
Bypass mode. The active status indicator (upper right dot) will appear on the STOP key
and disappear from the RUN key.
Home Key - Press to return to top menu of respective tab.
Security Level Key. Press to open security login screen.
Event Alarm Mute Key- Press to silence current event alarm.
Alarm Muted Key- Alarm remains silenced until next event.
Touchscreen Enabled Key- Press to disable (lockout) all touchscreen keys except this
key.
Touchscreen Disabled Key - Press to enable (un-lock) touchscreen.
Four function tab keys: Main, Monitor, Settings, Records
Main - Start and Stop keys, UPS Serial number and typeform.
Monitor - Shows Mimic display for accessing Input/Output/Bypass/Battery data.
Settings - Provides access to adjustable performance parameters.
Records - Access fault, warning and other records.
As displayed on:
Monitor and Settings screens:
Records screens:
Go To First Page/Record Key.
Go to Previous Page/Record Key.
Menu selection under Monitor and Settings tabs.
Shows the current page or record number, and total number of pages or records.
Go to Next Page/Record Key.
Go To Last Page/Record Key.
2 / 3
2 / 3
BAT
BAT 2 / 3
USR
HOME
Main
Monitor
Settings
Records
RUN RUN
STOP STOP
