531600XPi Series UPS Installation and Operation Manual – 60616-014

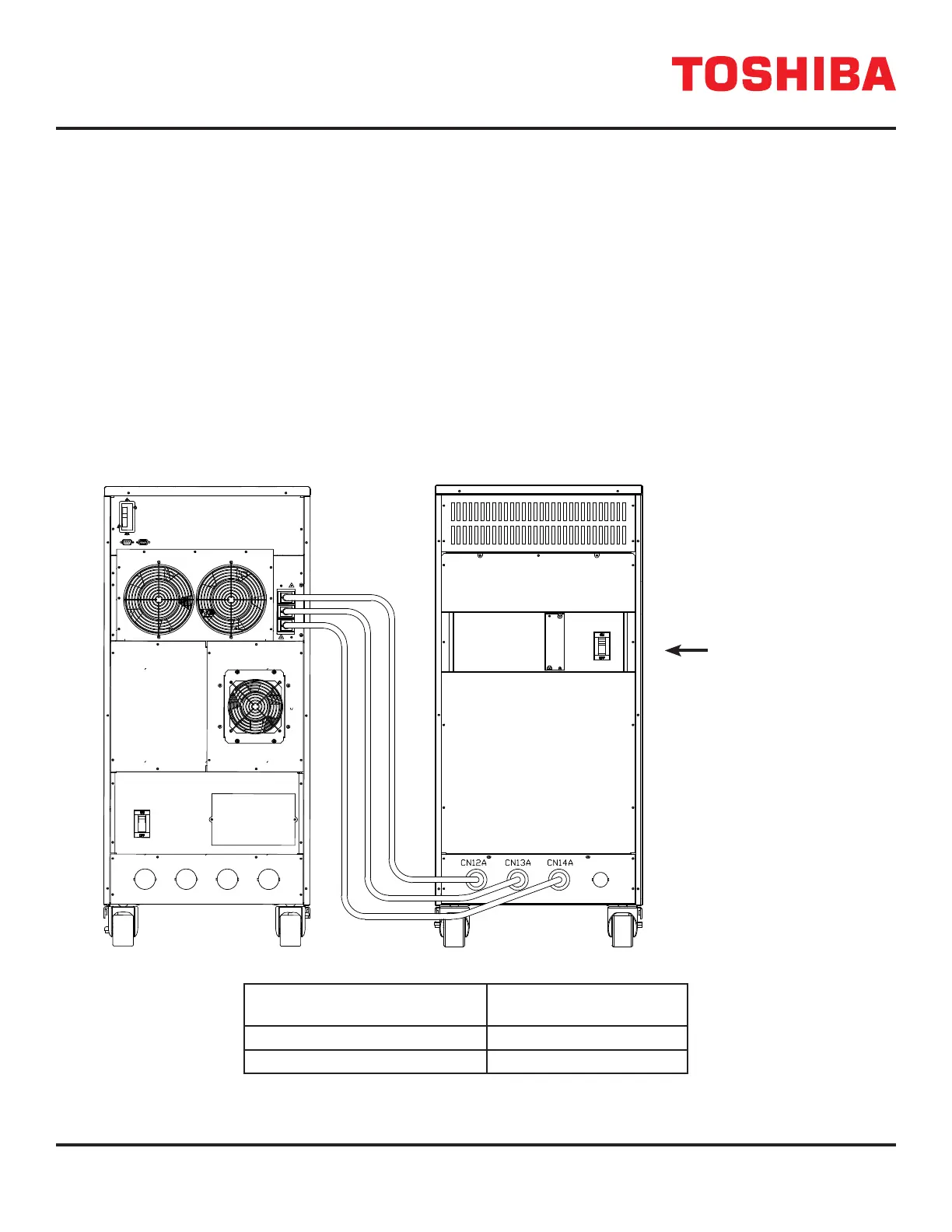

21 External Battery Cabinet Connections
Optional external battery cabinets can be used to extend the backup time of the UPS beyond that available with the
internal batteries. The external battery cabinets connect to the UPS via Anderson-style connectors.
Battery cabinets are available in either matching or non-matching styles. All 1600XPi battery cabinets are equipped with
Anderson-style keyed connectors that plug into the 1600XPi UPS.
Non-matching battery cabinets also come with an additional separate power cord for secondary recharging of the battery
cabinet.
For UPS and Matching battery cabinet runtimes, see Appendix D.
For Matching battery cabinet dimensions and weights, see Appendix E.
For Non-matching battery cabinet dimensions and runtimes, see Appendix F.
UPS Model Battery Cabinet
MCCB Capacity
3.6, 5.2, 6 kVA 50 A
8, 10, 14, 18, 22 kVA 100 A
See the applicable battery cabinet manual for additional details.
MCCB
(Battery Cabinet Main
Circuit Breaker)
To Next Page
