32 1600XPi Series UPS Installation and Operation Manual – 60616-014

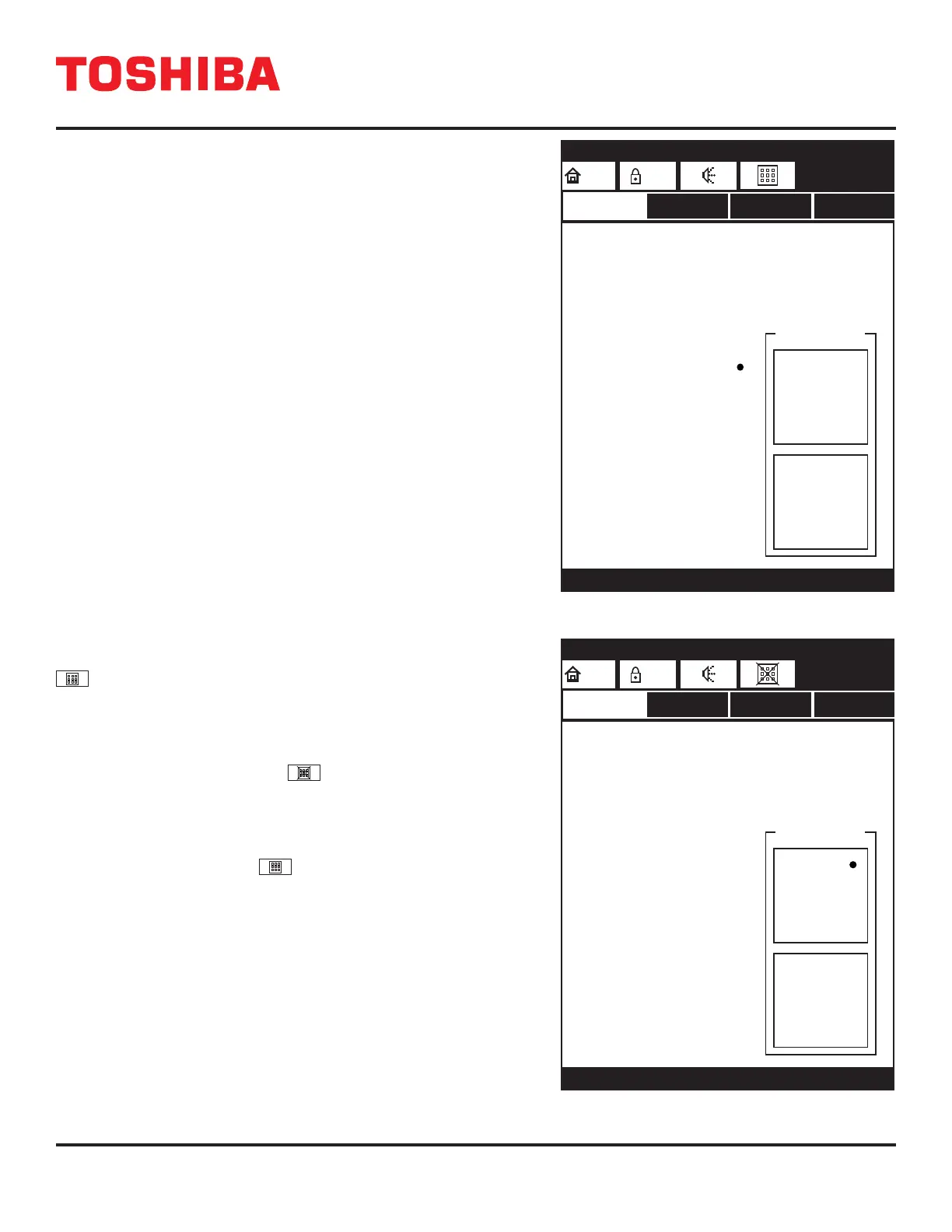

14 Screen Tab: Main

The Main tab is also the opening tab on startup for the

UPS. Press RUN to place the UPS in On-Line mode,

and press STOP to place the UPS in Bypass mode.

RUN/Stop the UPS

Press and momentarily hold (approximately one to two

seconds) the RUN or STOP key to place the UPS in

On-Line or Bypass mode respectively.

The touchscreen display can be disabled for safety or

convenience by pressing the touchscreen lockout key,

(NOTE: The touchscreen lockout key is disabled when

the screen is in keypad mode.)

The Lockout key will change to and the touch-

screen will not respond to any input except a touch to

the lockout key.

Touching the lockout key again will toggle the lockout

o󰀨, the graphic will change to indicating the touch-

screen is active.

MAIN SCREEN

On-Line

DVCOH

ASYN

1600XP

On-Line UPS

UPS Serial Number

20080112345

UPS Typeform

UXPB2B100C6

RUN

STOP

UPS Controls

Main Monitor Settings Records

12:35 PM

INV

HOME

USR

96% 100%

MAIN SCREEN DISABLED
