7.4 Frequency Setting (FC)
Both the keypad (Panel Control) and the input signal terminals (Remote Control) can
be used for setting the inverter's operating frequencies. For details on frequency setting
see section 8.3 (Panel Control) and section 8.4 (Remote Control).
The inverter's output frequency can be set from the keypad either by directly entering
the frequency or by pressing the "up" and "down" keys until the desired
frequency is reached.

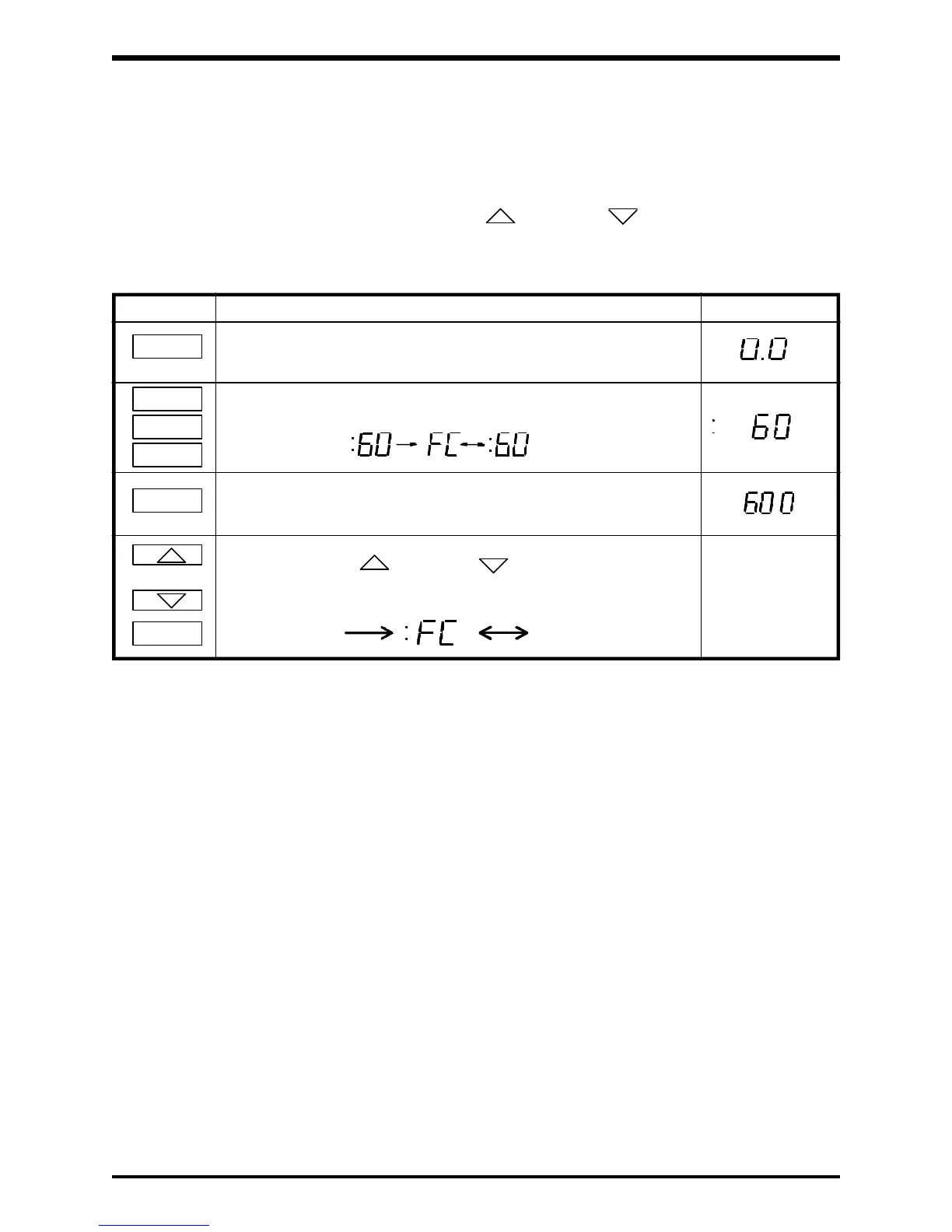

Key Action Display
The inverter must always be placed in the monitor mode before
setting the operating frequency and engaging the run command.
7 - 5
MON
Sets the inverter's operating frequency to 60Hz. The inverter
will not run until the RUN command is pressed.
6
0
WRT
Engages the run command. The inverter's output frequency will
"ramp up" to 60Hz, causing the motor to accelerate to its 60Hz
speed.
RUN
or
WRT
Pressing the "up" or "down" scroll keys will increase
or decrease the inverter's output frequency, respectively.
For example: :[value]
:[value]
:[value]
