TOSHIBA
8.2 Starting/Stopping-Remote Control
The remote STARTING/STOPPING possibilities are identified in the following
figure and table.
8 - 5

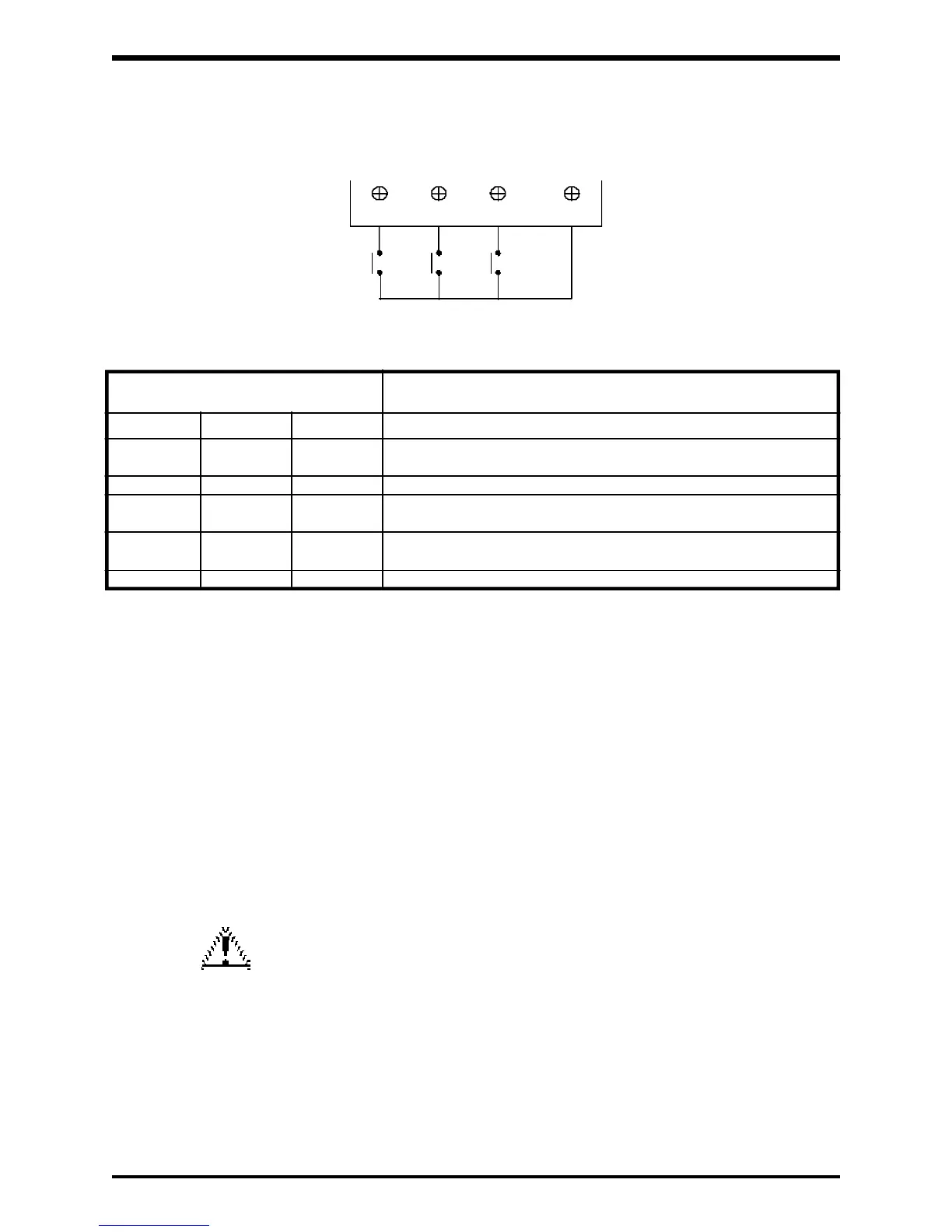

START/STOP Terminals Connections
ST F R CC
F RST
Remote START/STOP Connections Possibilities
Terminal Connection Action
ST-CC F-CC R-CC
OFF ON/OFF ON/OFF The inverter is OFF. OFF will be displayed. If running
when ST-CC is broken the motor will coast to a stop.
ON OFF OFF The inverter is ON but not running.
ON ON OFF The inverter is ON and will run in a FORWARD direction if an
input signal is applied.
ON OFF ON The inverter is ON and will run in a REVERSE direction if an
input signal is applied.
ON ON ON Same as REVERSE connection above.
ON = short circuit
OFF = open circuit
Note:
1) With ST-CC (ON), switching F-CC or R-CC (OFF) will cause the motor to decelerate to
a stop.
2) If input power is turned off (with MCCB) while inverter is running, the motor will coast to
a stop.
3) Acceleration and Deceleration rates are determined by the preset values of 1st
Function #2 (ACC/DEC).
4) When switching from a forward run to a reverse run the motor will decelerate to a stop,
then accelerate in the reverse direction.
CAUTION
Avoid using the input power switch (MCCB) to start and
stop the inverter. Use for an emergency stop only.
