10 - 1
DIMENSIONS in inches(millimeters)
2-"H" DIA.
B
AE
D
F
2-SLOT "G" DIA.
C
.25
2-SLOT "G" DIA.
.25
C
E A
D
F
B
2-"H" DIA.

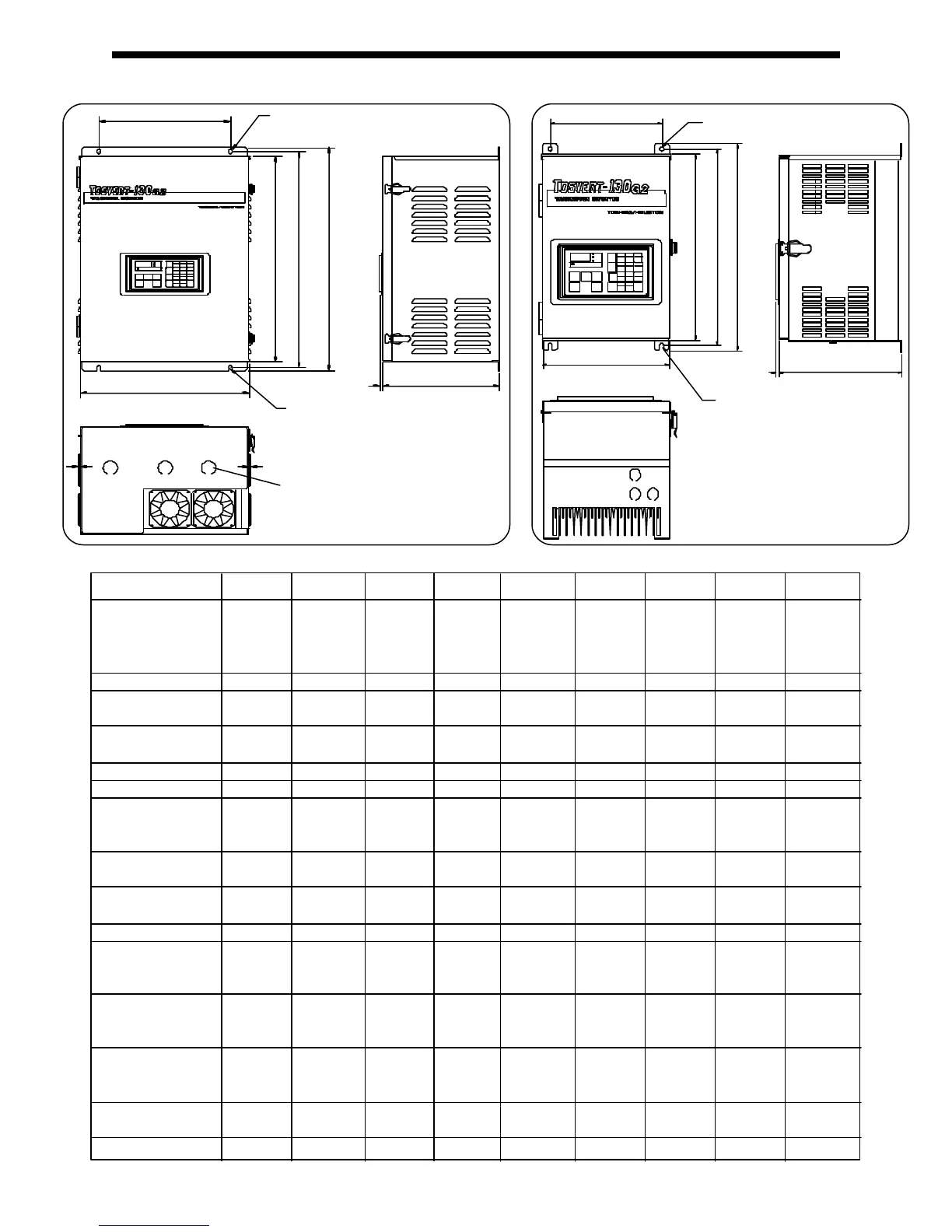

10.0 Dimensions/Component Layouts/Schematics
10.1 Basic Dimensions
.188 .188
MODEL FIG A B C D E F G H
VT130G2+2010 2 12.63(321) 8.72(221) 7.47(190) 11.38(289) 12.00(305) 7.69(195) .28(7) .28(7)
VT130G2+2015
VT130G2+2025
VT130G2+2035
VT130G2+2055 2 12.63(321) 8.72(221) 8.41(214) 11.38(289) 12.00(305) 7.69(195) .28(7) .28(7)
VT130G2+2080 1 18.75(476) 14.38(365) 9.94(252) 17.13(435) 18.09(459) 11.25(286) .38(10) .38(10)
VT130G2+2110
VT130G2+2160 1 20.75(527) 14.38(365) 9.94(252) 19.13(486) 20.09(510) 11.25(286) .38(10) .38(10)
VT130G2+2220
VT130G2+2270 1 23.63(600) 17.38(441) 11.50(292) 21.63(549) 22.75(578) 14.25(362) .50(13) .50(13)
VT130G2+2330 1 36.50(927) 19.25(489) 13.56(344) 33.88(861) 35.34(898) 12.63(321) .63(16) .63(16)
VT130G2+4015 2 12.63(321) 8.72(221) 7.47(190) 11.38(289) 12.00(305) 7.69(195) .28(7) .28(7)
VT130G2+4025
VT130G2+4035
VT130G2+4055 2 12.63(321) 8.72(221) 8.41(214) 11.38(289) 12.00(305) 7.69(195) .28(7) .28(7)
VT130G2+4080
VT130G2+4110 1 18.75(476) 14.38(365) 9.94(252) 17.13(435) 18.09(459) 11.25(286) .38(10) .38(10)
VT130G2+4160
VT130G2+4220 1 20.75(527) 14.38(365) 9.94(252) 19.13(486) 20.09(510) 11.25(286) .38(10) .38(10)
VT130G2+4270 1 23.63(600) 17.38(441) 11.50(292) 21.63(549) 22.75(578) 14.25(362) .50(13) .50(13)
VT130G2+4330
VT130G2+4400
VT130G2+4500 1 36.50(927) 19.25(489) 13.56(344) 33.88(861) 35.34(898) 12.63(321) .63(16) .63(16)
VT130G2+4600
VT130G2+4750
VT130G2+410K 1 57.00(1448) 19.25(489) 13.16(334) 54.16(1376)55.81(1418) 12.63(321) .69(18) .69(18)
VT130G2+412K
VT130G2+415K
VT130G2+420K 1 59.94(1522) 25.88(657) 14.47(368) 57.00(1448)58.75(1492) 11.81(300) .69(18) .69(18)
VT130G2+425K
VT130G2+430K 1 77.00(1956) 24.00(610) 20.00(508) 72.00(1829)75.00(1905) 16.00(406) .69(18) .69(18)
Knockouts not supplied
on VT130G2+430K
FIGURE 1 FIGURE 2
