8.4.3 Jog
The jogging frequency is immediately output when the remote JOG is activated.
The functions "JOG" and "J.StP" must be preset. Use 1st Function #6 key to
access these functions. In addition, the JOG(SS2) terminal must be set for
"JOG". This is accomplished by setting the function parameter "1.tb" to 1 or 3.
Use 1st Function #8 key to access this function. The terminal connections,

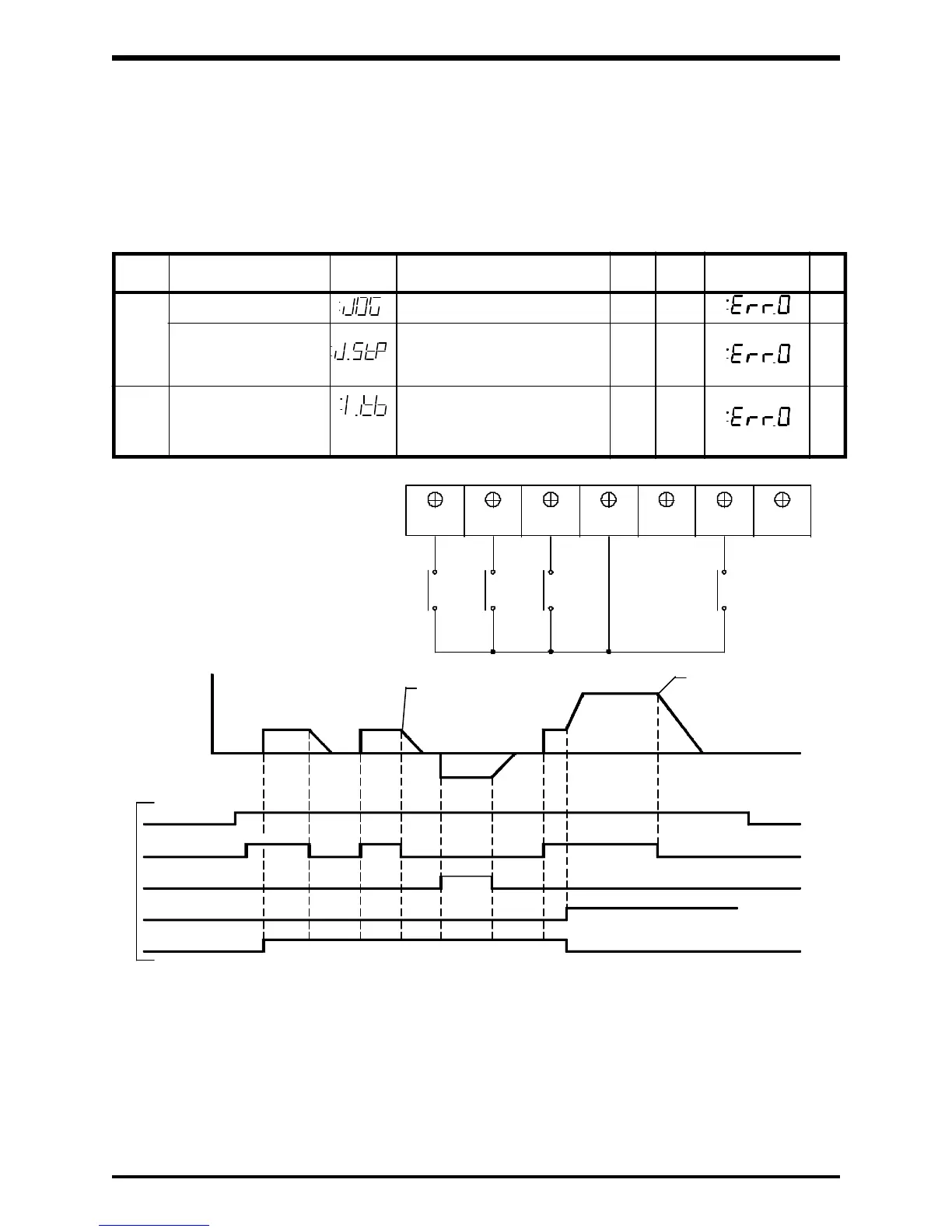

function parameters, and input/output graph are all shown below:
Function Function Adjustment Factory Error Ref.
No. Name Display Range Unit Set Message Page
Jog drive frequency 0 to 20 Hz 5 8-23
6 Jog stop control 0: Deceleration
1: Coast stop Hz 0 8-23
2: DC injection stop
Multifunction input 0: SS2, SS3
8 1: JOG, SS3 2 8-24
2: SS2, AD2
3: JOG, AD2
Function Parameters
Notes:
1) A jogging run cannot be engaged by closing the JOG switch during a run.
2) The inverter will decelerate at the selected rate during: deceleration stop, coast
to stop, injection stop.
3) F-CC must be broken for DC injection to be applied; breaking only JOG(SS2)-CC
allows the inverter to accept other input signals and is not a "true" off.
4) See table on next page for terminal inputs and actions.
ST F R CC SS1
JOG
(SS2)
AD2
(SS3)
ST F R
Terminal Connections Required
For Remote Jog
Output
Frequency
Jogging run
frequency (JOG)
set via panel
Run frequency
setting from
terminals
R-CC
ST-CC
F-CC
PP, RR, IV
JOG-CC
Terminal inputs
Hz
Time
