TOSHIBA

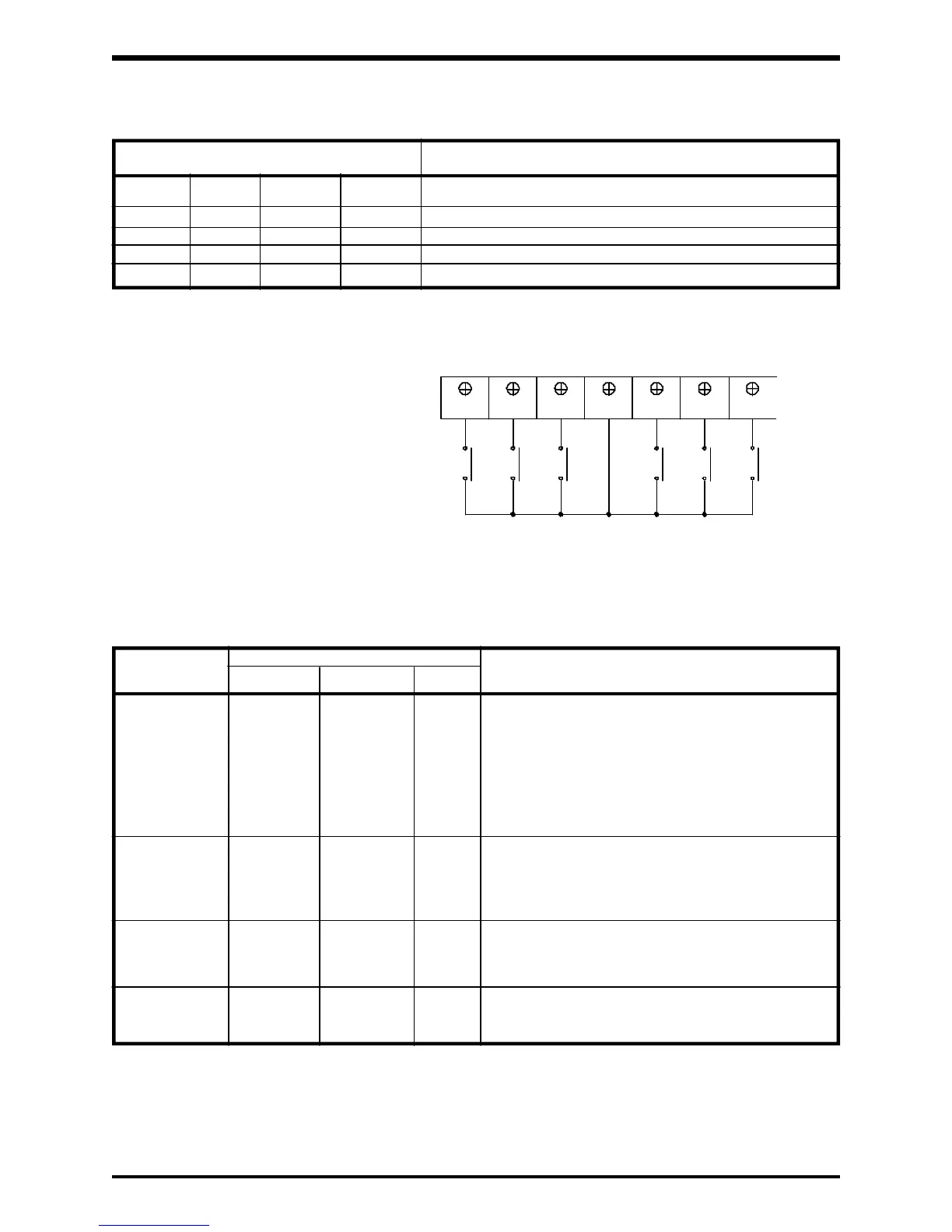

8.4.3 Jog (Cont'd)
Terminal Connections Action
ST F R
ON ON OFF OFF Jogging Stop
ON ON OFF ON Reverse Jogging Run
ON ON ON OFF Forward Jogging Run
ON ON ON ON Reverse Jogging Run
JOG
(SS2)
8.4.4 7 Preset Speeds
For remote operation the following preset functions, terminals, and chart must
be used. Follow the same procedure as in section 8.3.4 for setting the preset
speed frequencies.
8 - 15
Terminal inputs and actions
Terminals SS2 and SS3 have dual functions, however only one function can be
used at a time. Enabling the other functions (JOG, AD2) disables functions
SS2 and SS3, thus limiting the number of accessable preset frequencies.
The following chart identifies the functions of the 3 terminals (SS1, SS2, SS3)
and their corresponding accessable preset frequencies.
Setting selection Terminal Selection 1.tb Frequency setting
of parameter1.tb AD2/SS3-CC JOG/SS2-CC SS1-CC via terminals
OFF OFF OFF Operating frequency set via PP, IV, RR terminals
OFF OFF ON 1st operating frequency
0 OFF ON OFF 2nd operating frequency
(SS2) OFF ON ON 3rd operating frequency
(SS3) ON OFF OFF 4th operating frequency
ON OFF ON 5th operating frequency
ON ON OFF 6th operating frequency
ON ON ON 7th operating frequency
OFF OFF OFF Operating frequency set via PP, IV, RR terminals
1 OFF ON OFF Jogging
(JOG) OFF OFF ON 1st operating frequency
(SS3) ON OFF OFF 2nd operating frequency
ON OFF ON 3rd operating frequency
2 *ON/OFF OFF OFF Operating frequency set via PP, IV, RR terminals
(SS2) *ON/OFF OFF ON 1st operating frequency
(AD2) *ON/OFF ON OFF 2nd operating frequency
*ON/OFF ON ON 3rd operating frequency
3 *ON/OFF OFF OFF Operating frequency set via PP, IV, RR terminals
(JOG) *ON/OFF ON OFF Jogging
(AD2) *ON/OFF OFF ON 1st operating frequency
Terminal Inputs
ST F R CC SS1
JOG
(SS2)
AD2
(SS3)
F SS1 SS2 SS3
RST
Note:
When "1.tb" (accessible by TB KEY #8) is set to 2 or 3 the AD2 function is activated. This
function enables the user to remotely switch between the ACC/DEC patterns 1 and 2, provided
SEL2=0. If SEL2=1 then the only pattern available is given by ACC2, DEC2, Pt.2. With AD2-CC
terminals shorted (ON) all ACC/DEC patterns are run using the settings of the ACC2, DEC2, Pt.2
parameters.
Terminal Connections Required for
Remote Preset Speeds
