10.1.1 PoE Config
On this page, you can configure the parameters to implement PoE function.
Choose the menu PoE→PoE Config→PoE Config to load the following page.

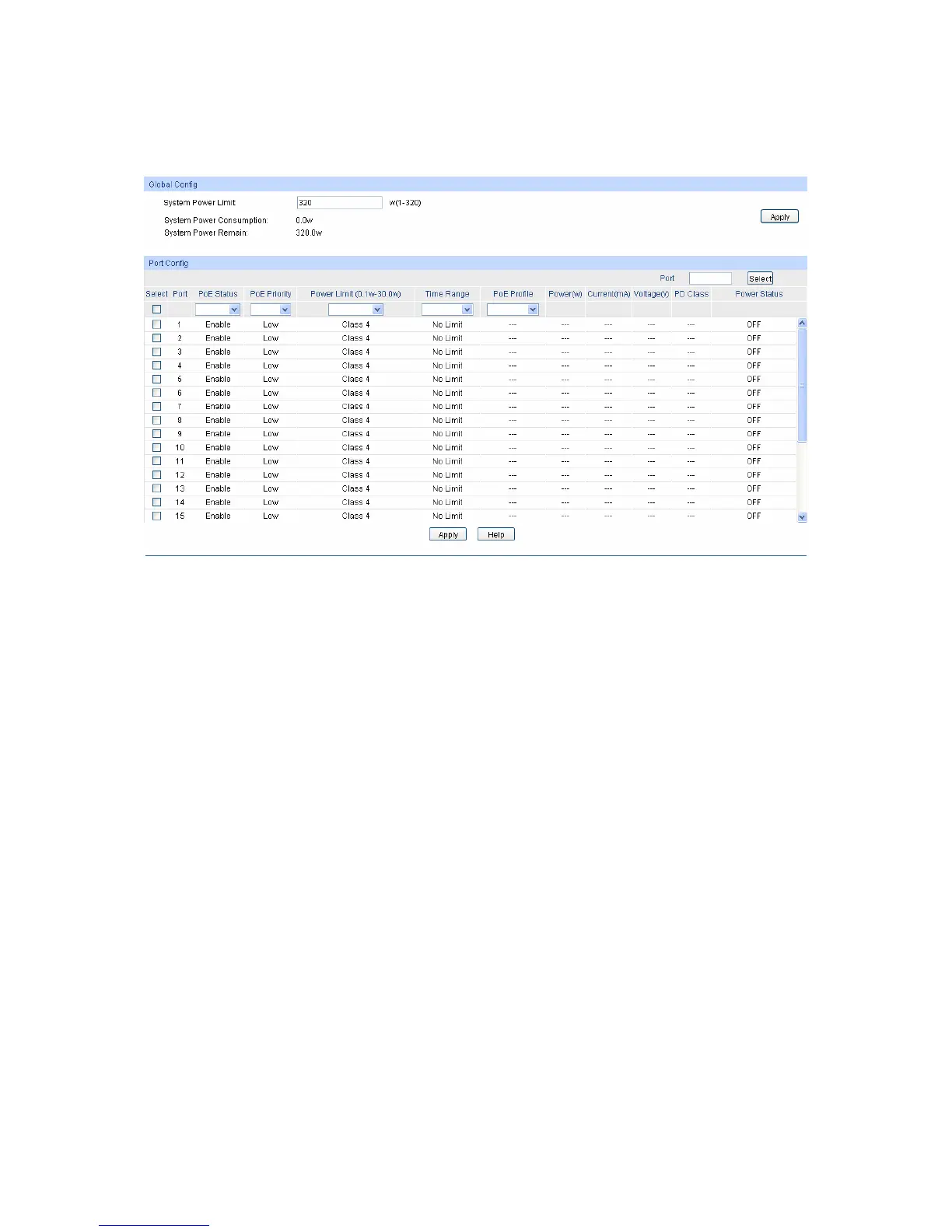

Figure 10-1 PoE Config
The following items are displayed on this screen:
¾ Global Config
System Power
Limit:
Specify the max power the PoE switch can supply.
System Power
Consumption:
Displays the PoE switch's real time system power consumption.
System Power
Remain:
Displays the PoE switch's real time remaining system power.
¾ Port Config
Port Select: Click the Select button to quick-select the corresponding entry
based on the port number you entered.
Select: Select the desired port to configure its parameters.
Port: Displays the port number.
PoE Status: Select to disable/enable the PoE feature for the corresponding
port. If set enable, the corresponding port can supply power to the
linked PD (Powered Device).
PoE Priority: The priority levels include High, Middle and Low in descending
order. When the supply power exceeds the system power limit,
the PD linked to the port with lower priority will be disconnected.
132
