Note:
The amount of Engine ID characters must be even.
13.1.2 SNMP View
The OID (Object Identifier) of the SNMP packets is used to describe the managed objects of the
switch, and the MIB (Management Information Base) is the set of the OIDs. The SNMP View is
created for the SNMP management station to manage MIB objects.
Choose the menu SNMP→SNMP Config→SNMP View to load the following page.

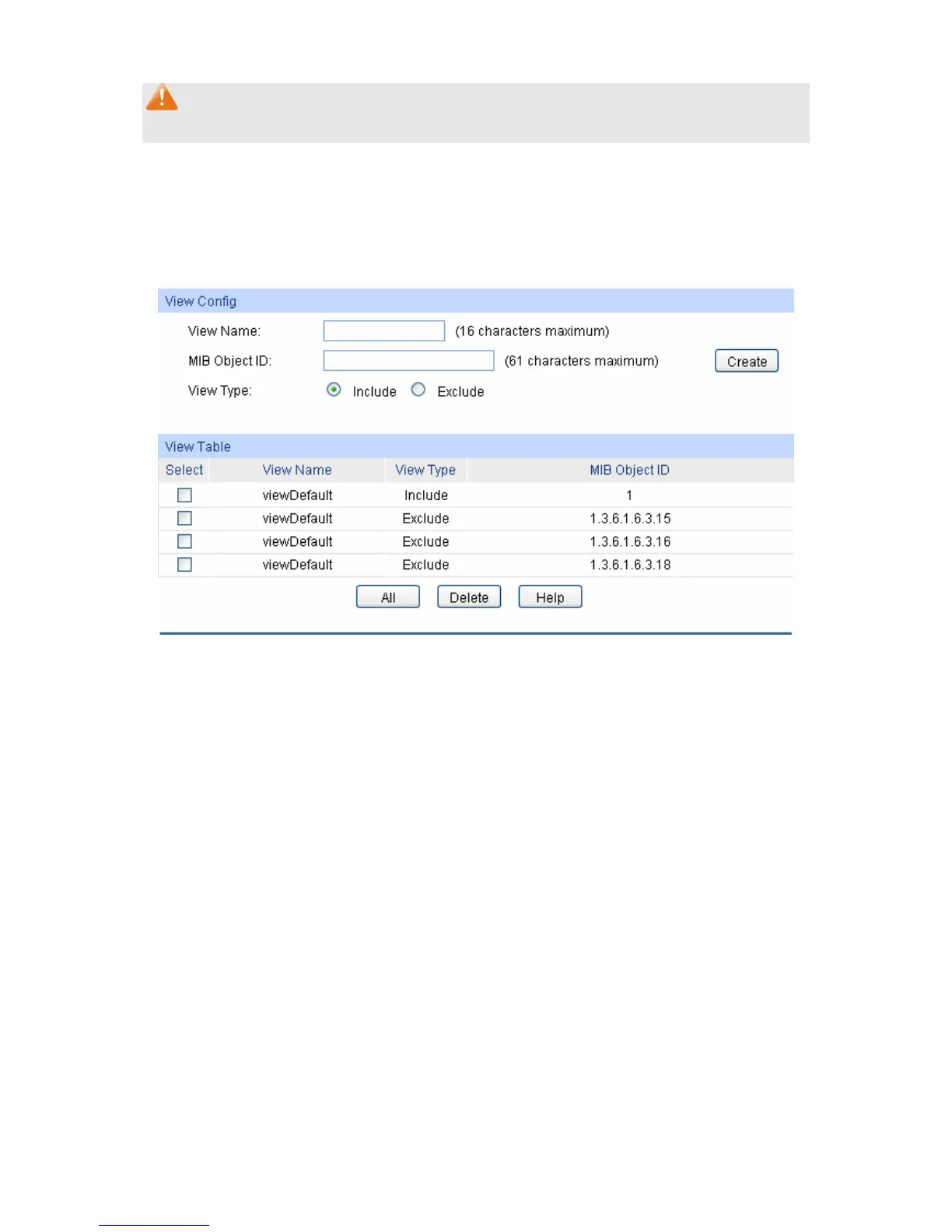

Figure 13-4 SNMP View
The following entries are displayed on this screen:
¾ View Config
View Name: Give a name to the View for identification. Each View can
include several entries with the same name.
MIB Object ID: Enter the Object Identifier (OID) for the entry of View.
View Type: Select the type for the view entry.
z Include: The view entry can be managed by the SNMP
management station.
z Exclude: The view entry cannot be managed by the
SNMP management station.
¾ View Table
Select: Select the desired entry to delete the corresponding view. All
the entries of a View will be deleted together.
View Name: Displays the name of the View entry.
View Type: Displays the type of the View entry.
MIB Object ID: Displays the OID of the View entry.
182
