Detail：
Click the Detail button to view the complete information
collected for the port.
15.1.3 NDP Config
On this page you can configure the NDP function for the switch.
Choose the menu Cluster→NDP→NDP Config to load the following page.

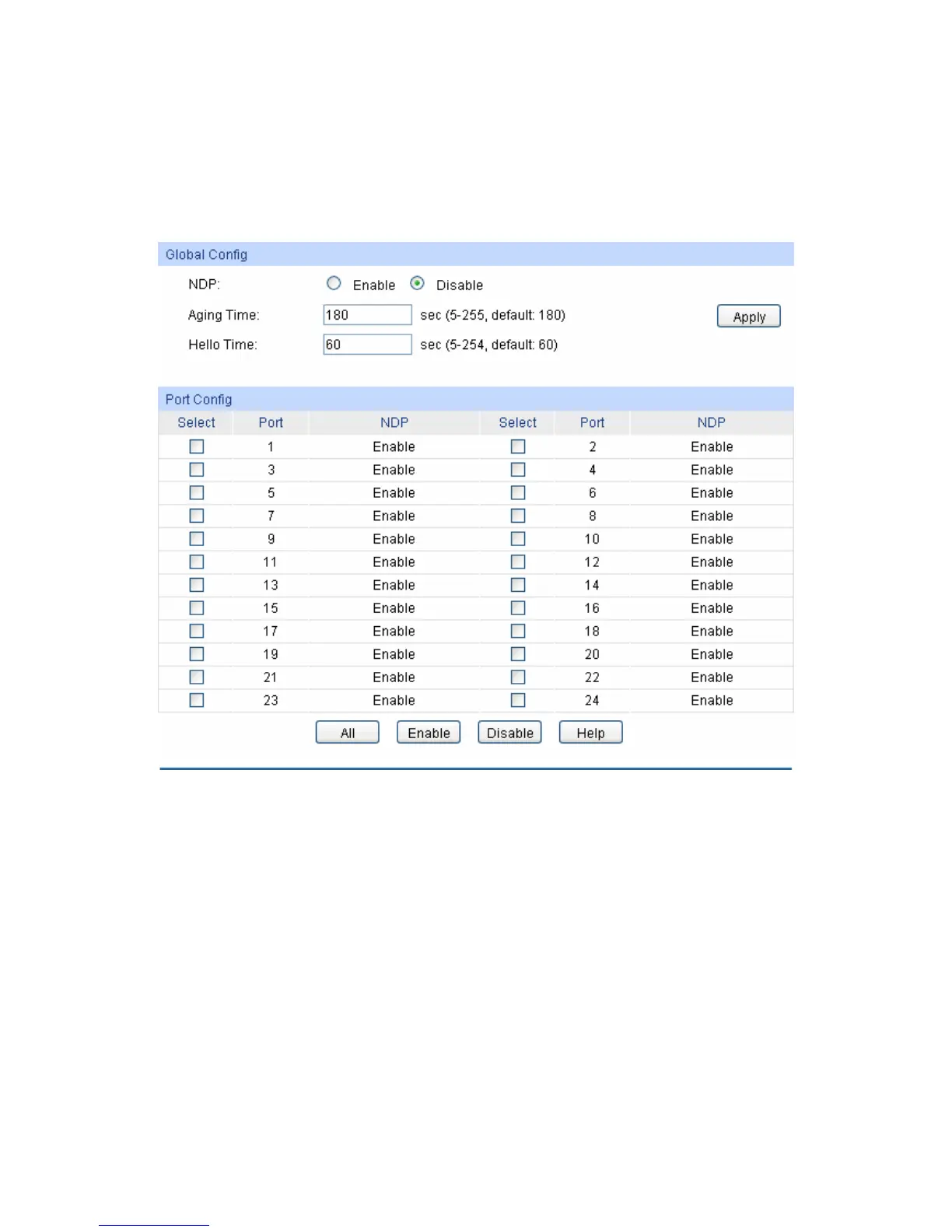

Figure 15-4 NDP Config
The following entries are displayed on this screen:
¾ Global Config
NDP: Select Enable/Disable NDP function globally.
Aging Time: Enter the period for the neighbor switch to keep the NDP
packets from this switch.
Hello Time: Enter the interval to send NDP packets.
¾ Port Config
Select: Select the desired port to configure its NDP status.
Port: Displays the port number of the switch.
NDP: Displays NDP status of the current port.
214
