The packet in Protocol VLAN is processed in the following way:
VLAN packets are processed in the following way:
1. When receiving an untagged packet, the switch matches the packet with the current Protocol
VLAN. If the packet is matched, the switch will add a corresponding Protocol VLAN tag to it. If
no Protocol VLAN is matched, the switch will add a tag to the packet according to the PVID of
the received port. Thus, the packet is assigned automatically to the corresponding VLAN for
transmission.
2. When receiving tagged packet, the switch will process it based on the 802.1Q VLAN. If the
received port is the member of the VLAN to which the tagged packet belongs, the packet will
be forwarded normally. Otherwise, the packet will be discarded.
3. If the Protocol VLAN is created, please set its enabled port to be the member of
corresponding 802.1Q VLAN so as to ensure the packets forwarded normally.
6.3.1 Protocol Group Table
On this page, you can create Protocol VLAN and view the information of the current defined
Protocol VLANs.
Choose the menu VLAN→Protocol VLAN→Protocol Group Table to load the following page.

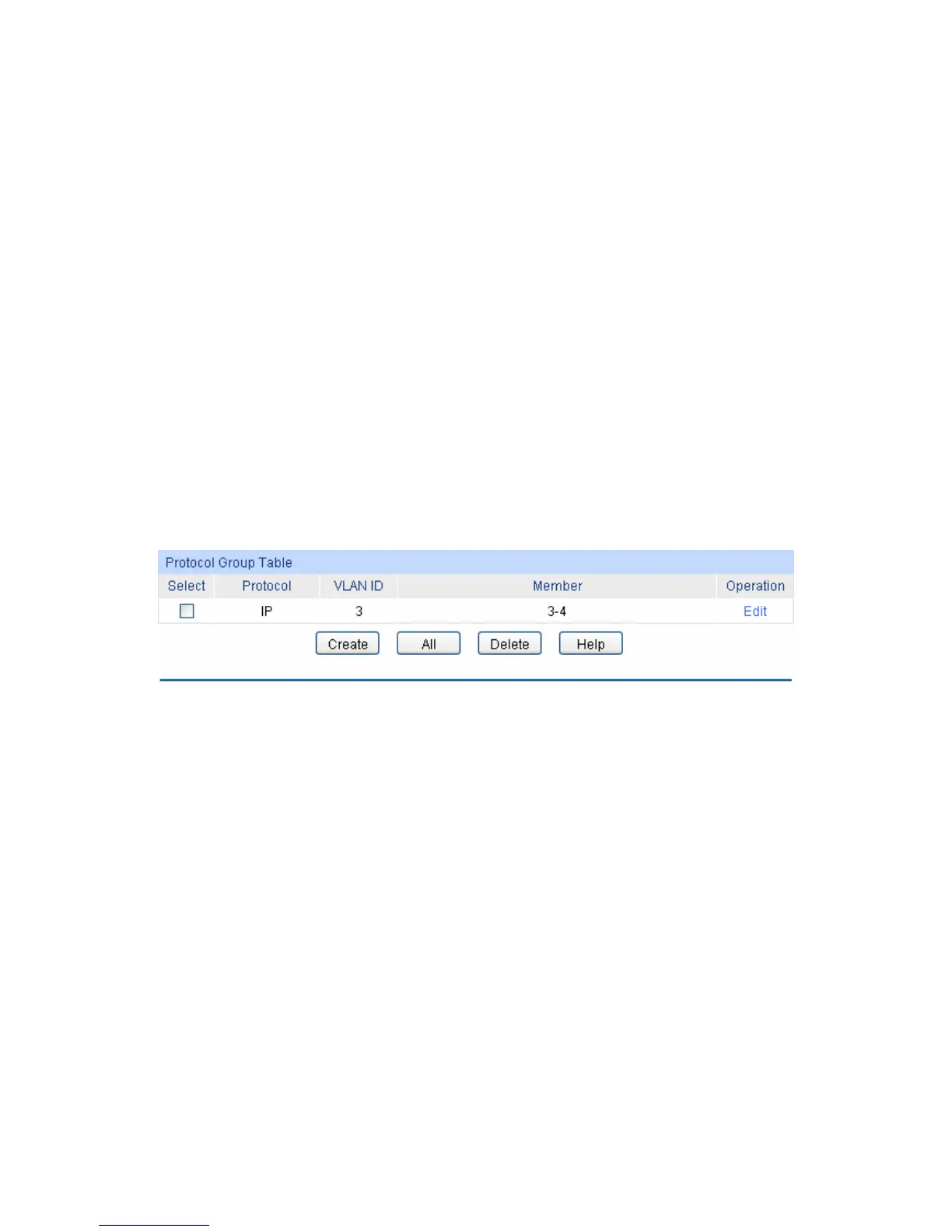

Figure 6-8 Protocol Group Table
The following entries are displayed on this screen:
¾ Protocol Group Table
Select: Select the desired entry. It is multi-optional.
Protocol: Displays the protocol of the protocol group.
VLAN ID: Displays the corresponding VLAN ID of the protocol group.
Member: Displays the member of the protocol group.
Operation: Click the Edit button to modify the settings of the entry. And click the
Modify button to apply your settings.
6.3.2 Protocol Group
On this page, you can create Protocol VLAN and view the information of the current defined
Protocol VLANs.
Choose the menu VLAN→Protocol VLAN→Protocol Group to load the following page.
65
