2.3.2 Rear Panel
The rear panel of TL-SG3424P features a power socket and a Grounding Terminal (marked
with
).

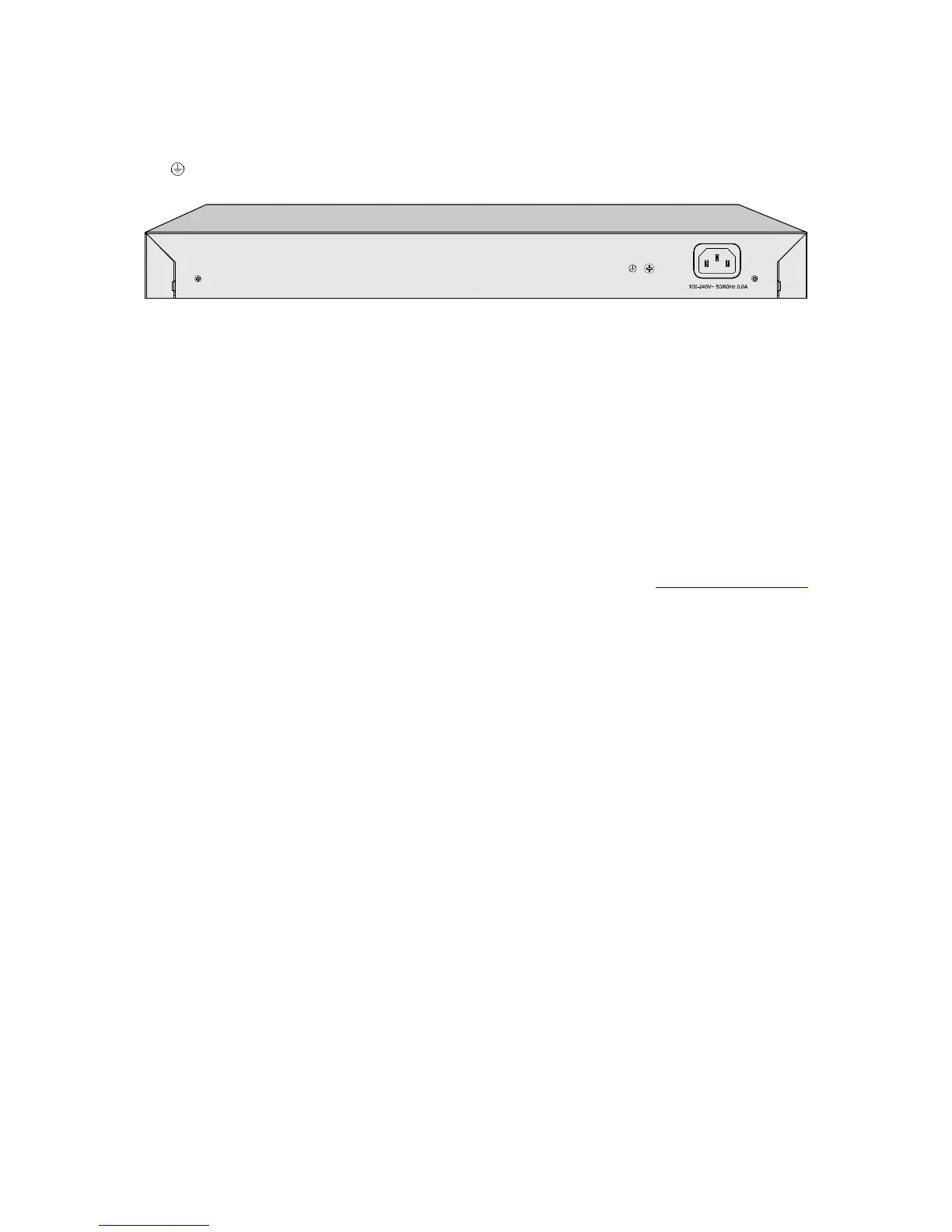

Figure 2-2 Rear Panel
¾ Grounding Terminal: TL-SG3424P already comes with Lightning Protection Mechanism. You
can also ground the switch through the PE (Protecting Earth) cable of AC cord or with Ground
Cable. For detail information, please refer to Installation Guide.
¾ AC Power Socket: Connect the female connector of the power cord here, and the male
connector to the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage (100-240V~ 50/60Hz 0.6A).
