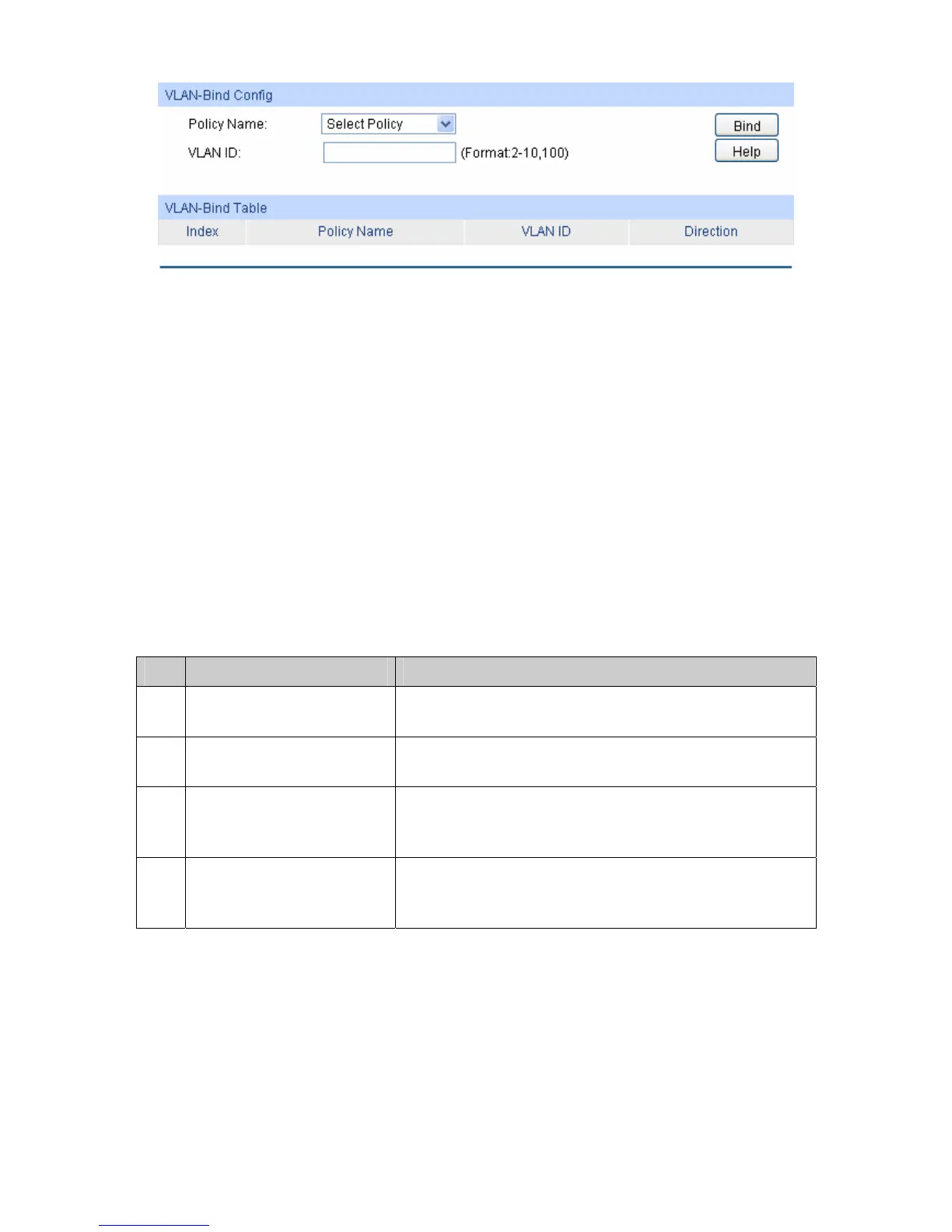

Figure11-14 Bind the policy to the VLAN
The following entries are displayed on this screen:
¾ VLAN-Bind Config
Policy Name: Select the name of the policy you want to bind.
VLAN ID: Enter the ID of the VLAN you want to bind.
¾ VLAN-Bind Table
Index: Displays the index of the binding policy.
Policy Name: Displays the name of the binding policy.
VLAN ID: Displays the ID of the VLAN bound to the corresponding policy.
Direction: Displays the binding direction.
Configuration Procedure:
Step Operation Description
1 Configure effective
time-range
Required. On ACL→Time-Range configuration pages,
configure the effective time-ranges for ACLs.
2 Configure ACL rules Required. On ACL→ACL Config configuration pages,
configure ACL rules to match packets.
3 Configure Policy Required. On ACL→Policy Config configuration pages,
configure the policy to control the data packets those match
the corresponding ACL rules.
4 Bind the policy to the
port/VLAN
Required. On ACL→Policy Binding configuration pages,
bind the policy to the port/VLAN to make the policy effective
on the corresponding port/VLAN.
11.5 Application Example for ACL
¾ Network Requirements
1. The manager of the R&D department can access to the forum of the company and the Internet
without any forbiddance. The MAC address of the manager is 00-46-A5-5D-12-C3.
2. The staff of the R&D department cannot access to the Internet during the working time but can
visit the forum all day.
3. The staff of the marketing department can access to the Internet all day but cannot visit the
forum during the working time.
