IEEE 802.1Q VLAN function is implemented on the VLAN Config and Port Config pages.
6.1.1 VLAN Config
On this page, you can view the current created 802.1Q VLAN.
Choose the menu VLAN→802.1Q VLAN→VLAN Config to load the following page.

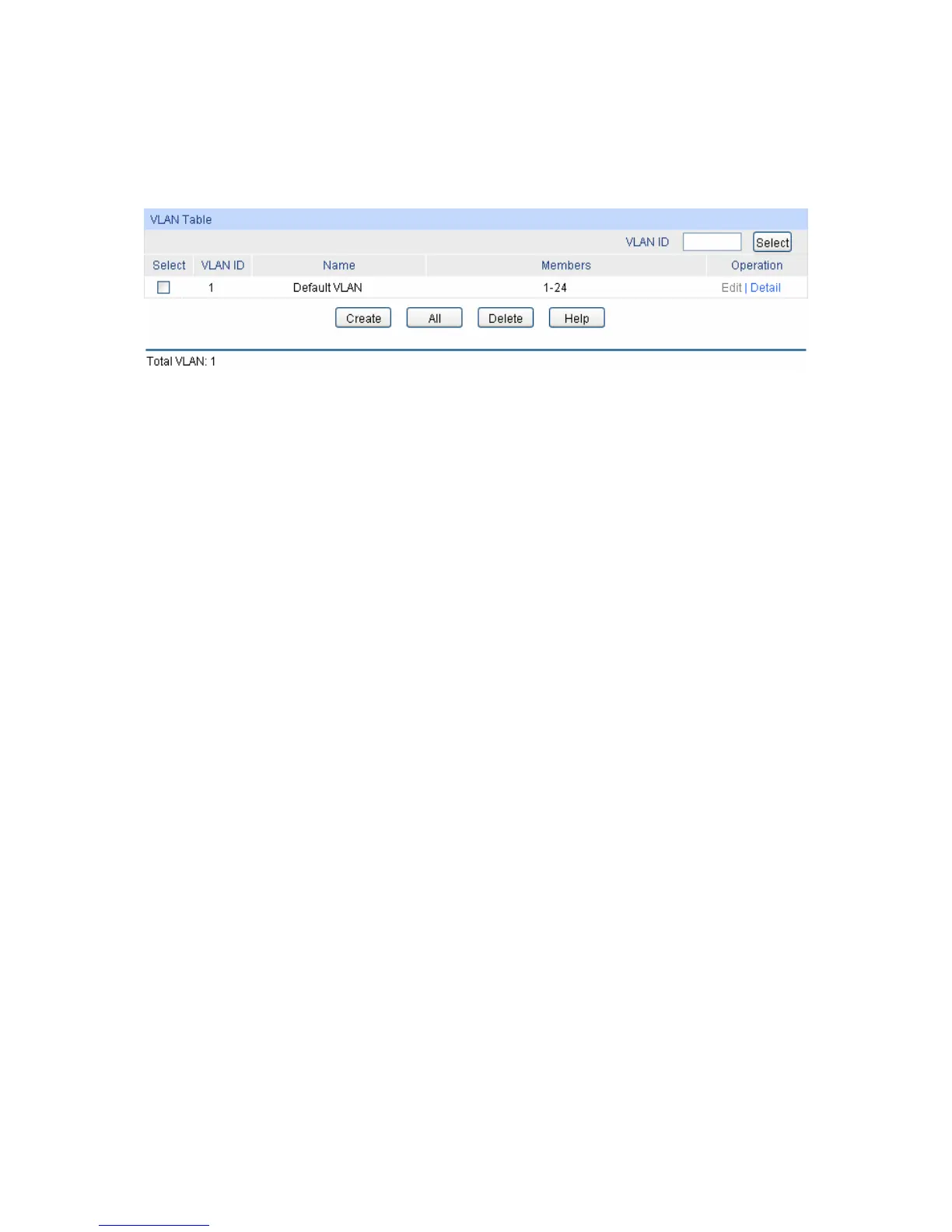

Figure 6-3 VLAN Table
To ensure the normal communication of the factory switch, the default VLAN of all ports is set to
VLAN1. VLAN1 cannot be deleted.
The following entries are displayed on this screen:
¾ VLAN Table
VLAN ID Select：
Click the Select button to quick-select the corresponding entry
based on the VLAN ID number you entered.
Select：
Select the desired entry to delete the corresponding VLAN. It is
multi-optional.
VLAN ID：
Displays the ID number of VLAN.
Description：
Displays the user-defined description of VLAN.
Members：
Displays the port members in the VLAN.
Operation：
Allows you to view or modify the information for each entry.
z Edit: Click to modify the settings of VLAN.
z Detail: Click to get the information of VLAN.
Click Edit button to modify the settings of the corresponding VLAN. Click Create button to create a
new VLAN.
57
