TP-Link tl-wr845n User Manual

TL-WR845N
300Mbps Wireless N Router
4.18.7 Password

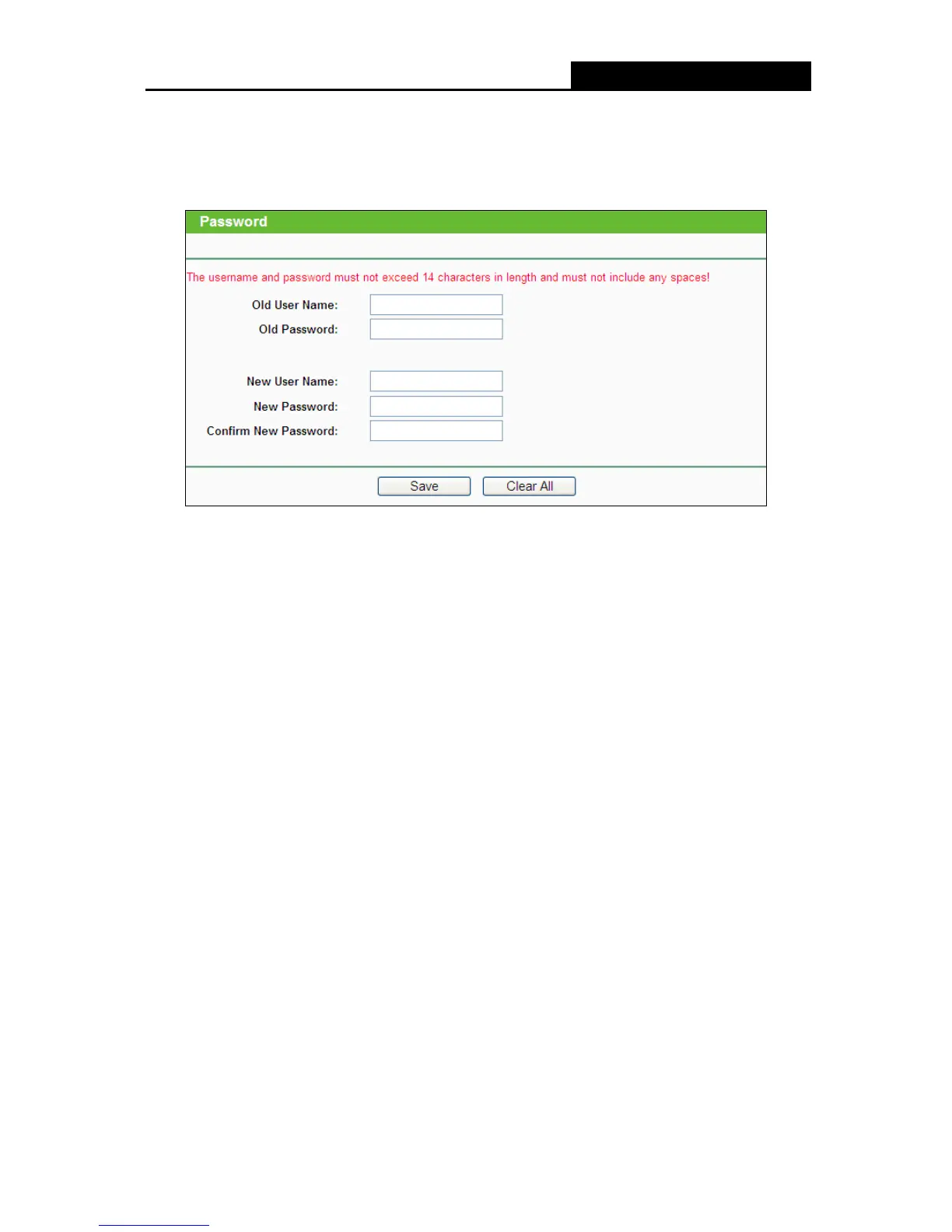

Choose menu “System Tools > Password”, you can change the factory default user name and
password of the router in the next screen as shown in the figure below.
It is strongly recommended that you should change the factory default user name and password
of the router, because all users who try to access the router's Web-based utility or Quick Setup
will be prompted for the router's default user name and password.

Note:
The new user name and password must not exceed 14 characters in length and not include any
spaces. Enter the new Password twice to confirm.
Click the Save button when finished.
Click the Clear All button to clear all.
4.18.8 System Log
Choose menu “System Tools > System Log”, you can view the logs of the router.
-93-

TP-Link tl-wr845n Specifications

General

DSL WAN	No
Ethernet WAN	Yes
VPN support	PPTP, L2TP, IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
Ethernet LAN (RJ-45) ports	5
Product type	Tabletop router
Product color	White
Antennas quantity	3
Antenna gain level (max)	5 dBi
Output current	0.6 A
Output voltage	9 V
Power source type	DC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, RoHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	144 mm
Width	230 mm
Height	35 mm
