TP-Link tl-wr845n User Manual

TL-WR845N
300Mbps Wireless N Router

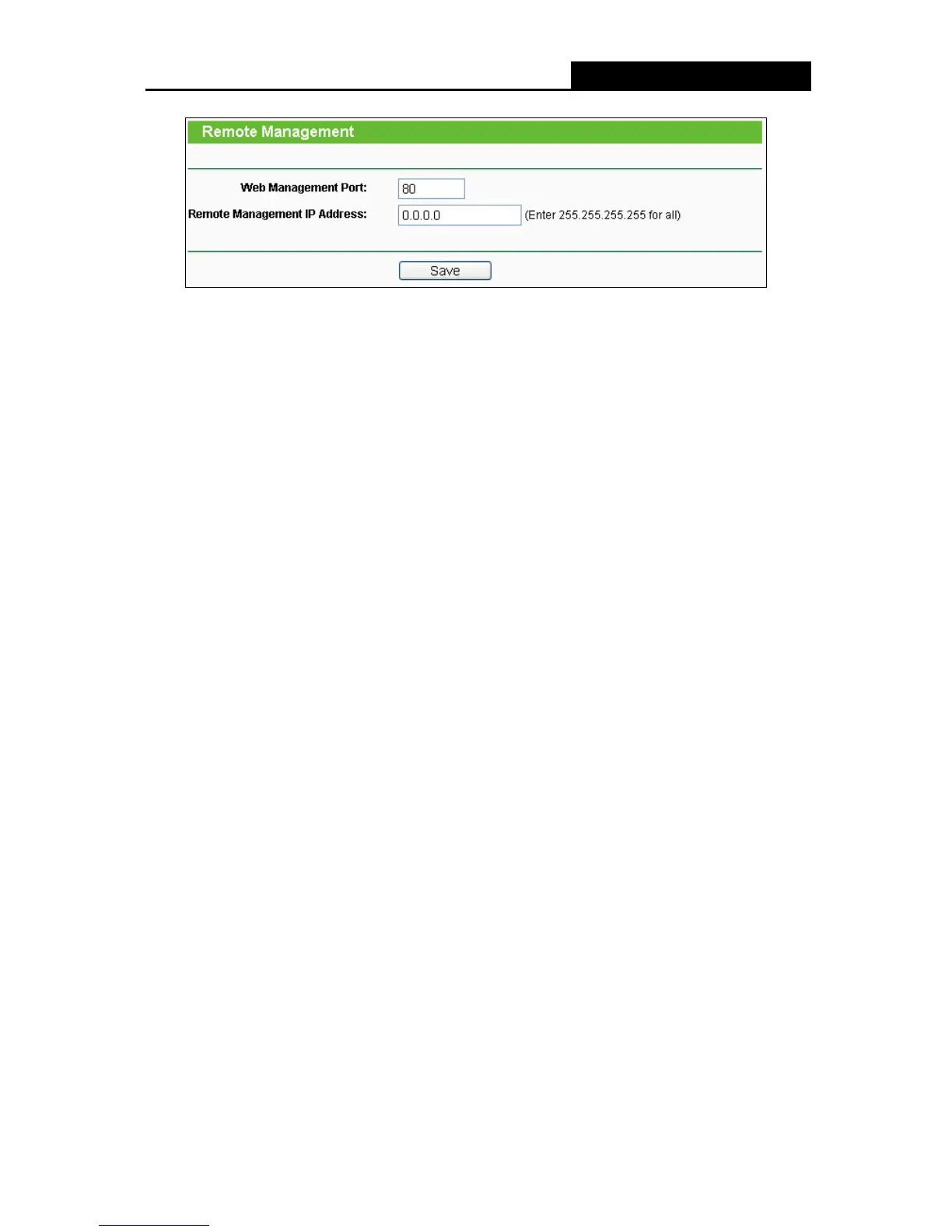

 Web Management Port - Web browser access normally uses the standard HTTP service
port 80. This router's default remote management web port number is 80. For greater security,
you can change the remote management web port to a custom port by entering that number
in the box provided. Choose a number between 1 and 65534 but do not use the number of
any common service port.
 Remote Management IP Address - This is the current address you will use when accessing
your router from the Internet. This function is disabled when the IP address is set to the
default value of 0.0.0.0. To enable this function change 0.0.0.0 to a valid IP address. If set to
255.255.255.255, then all the hosts can access the router from internet.

Note:
1. To access the router, you should type your router's WAN IP address into your browser's
address (in IE) or Location (in Navigator) box, followed by a colon and the custom port
number. For example, if your router's WAN address is 202.96.12.8, and the port number
used is 8080, please enter http://202.96.12.8:8080 in your browser. Later, you may be
asked for the router's password. After successfully entering the username and password,
you will be able to access the router's web-based utility.
2. Be sure to change the router's default password to a very secure password.
4.11 Parental Control
Choose menu “Parental Control”, and you can configure the parental control in the screen as
shown in the figure below. The Parental Control function can be used to control the internet
activities of the child, limit the child to access certain websites and restrict the time of surfing.
-57-

TP-Link tl-wr845n Specifications

General

DSL WAN	No
Ethernet WAN	Yes
VPN support	PPTP, L2TP, IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
Ethernet LAN (RJ-45) ports	5
Product type	Tabletop router
Product color	White
Antennas quantity	3
Antenna gain level (max)	5 dBi
Output current	0.6 A
Output voltage	9 V
Power source type	DC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, RoHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	144 mm
Width	230 mm
Height	35 mm
