TL-WR845N
300Mbps Wireless N Router
Click the Next button to go to the next page, or click the Previous button return to the previous
page.

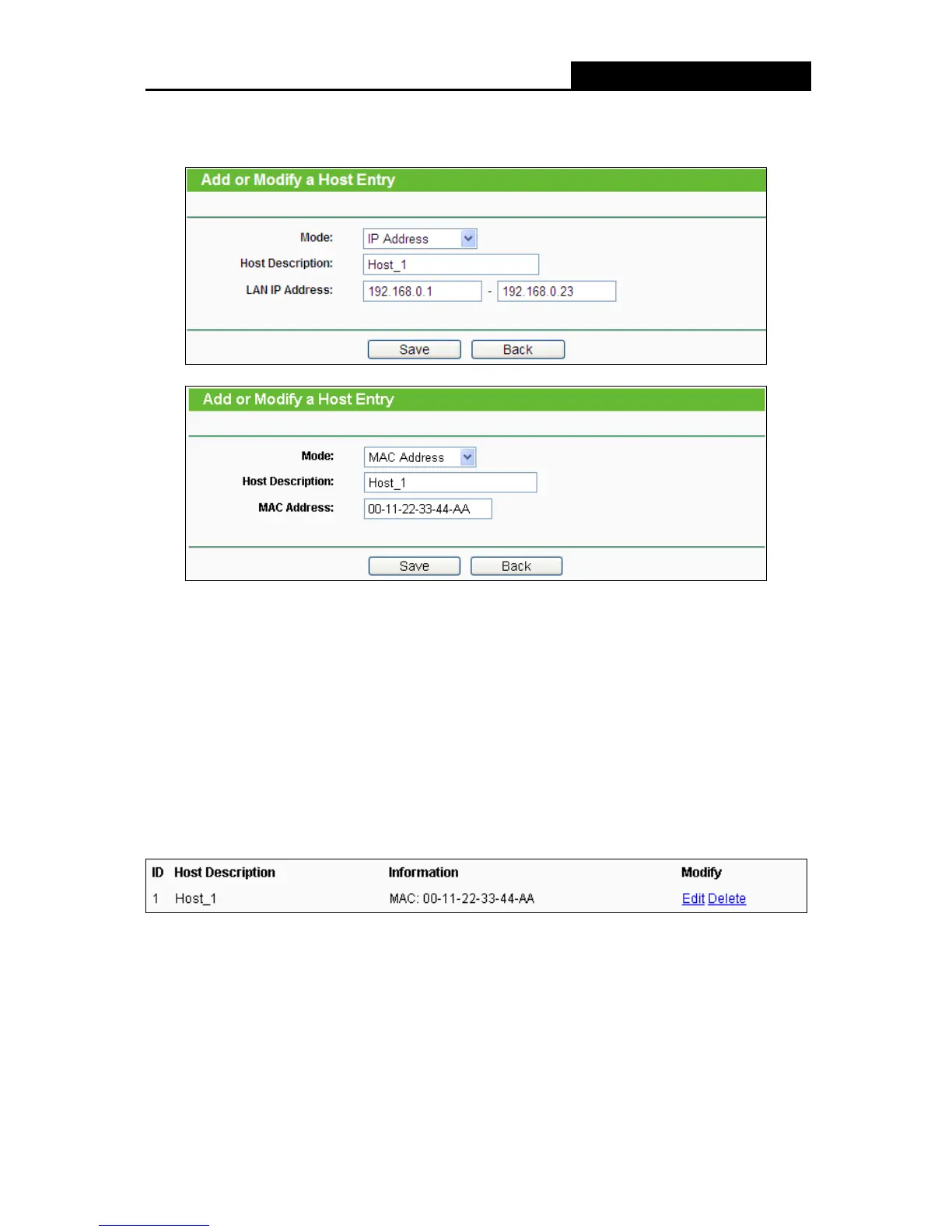

For example: If you desire to restrict the internet activities of host with MAC address
00-11-22-33-44-AA, you should first follow the settings below:
1. Click Add New... button on the page of Host Settings to enter the Add or Modify a Host
Entry page.
2. In Mode field, select MAC Address from the drop-down list.
3. In Host Description field, create a unique description for the host (e.g. Host_1).
4. In MAC Address field, enter 00-11-22-33-44-AA.
5. Click Save to complete the settings.
Then you will go back to the Host Settings page and see the following list.
4.12.3 Target
Choose menu “Access Control > Target”, you can view and set a Target list in the screen as
shown in the figure below. The target list is necessary for the Access Control Rule.
-64-

TP-Link tl-wr845n Specifications

General

DSL WAN	No
Ethernet WAN	Yes
VPN support	PPTP, L2TP, IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
Ethernet LAN (RJ-45) ports	5
Product type	Tabletop router
Product color	White
Antennas quantity	3
Antenna gain level (max)	5 dBi
Output current	0.6 A
Output voltage	9 V
Power source type	DC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, RoHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	144 mm
Width	230 mm
Height	35 mm
