TP-Link tl-wr845n User Manual

TL-WR845N
300Mbps Wireless N Router
3. Incoming Port Range cannot overlap each other.
4.9.3 DMZ

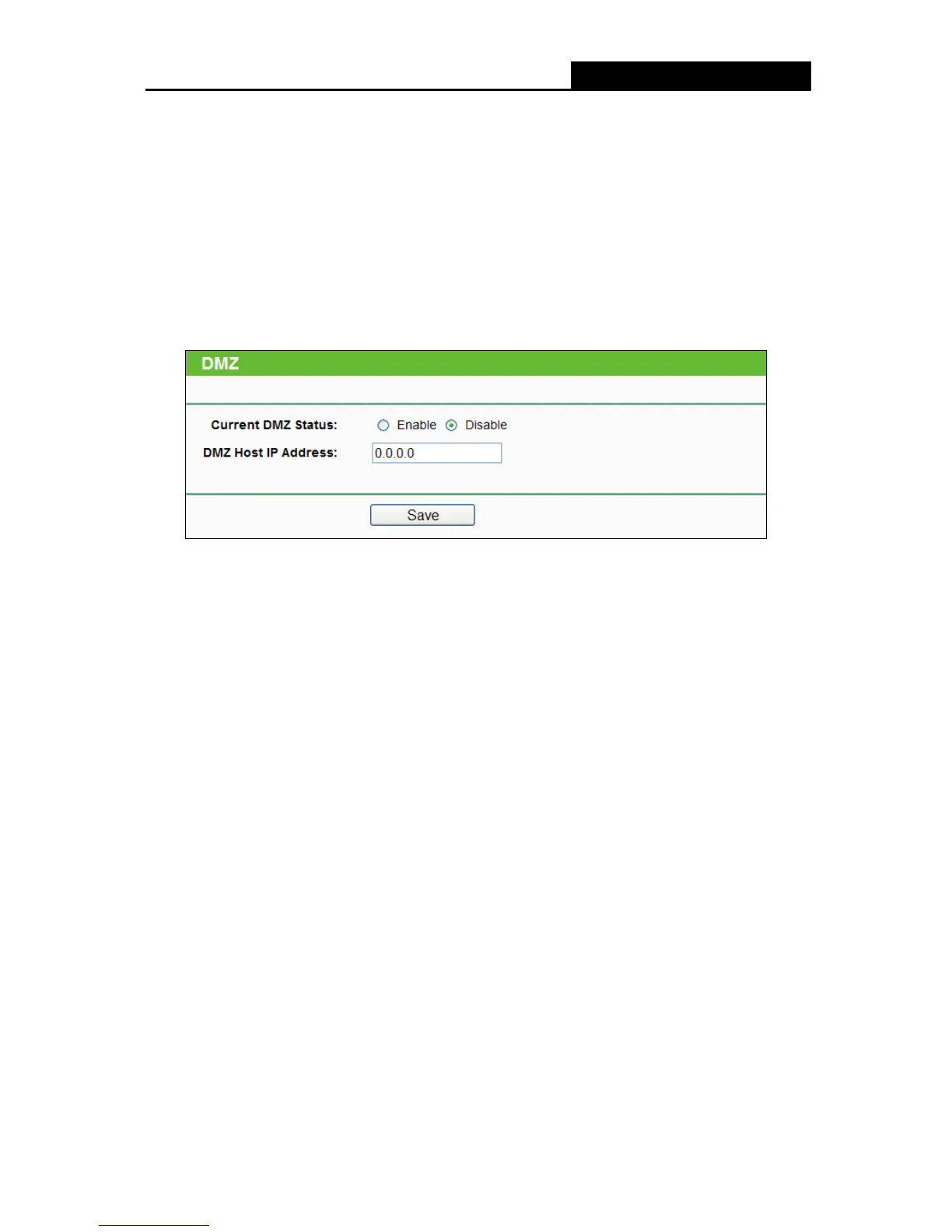

Choose menu “Forwarding > DMZ”, you can view and configure DMZ host in the screen.The
DMZ host feature allows one local host to be exposed to the Internet for a special-purpose service
such as Internet gaming or videoconferencing. DMZ host forwards all the ports at the same time.
Any PC whose port is being forwarded must have its DHCP client function disabled and should
have a new static IP Address assigned to it because its IP Address may be changed when using
the DHCP function.
To assign a computer or server to be a DMZ server:
1. Click the Enable radio button
2. Enter the local host IP Address in the DMZ Host IP Address field
3. Click the Save button.

Note:
After you set the DMZ host, the firewall related to the host will not work.
4.9.4 UPnP
Choose menu “Forwarding > UPnP”, you can view the information about UPnP(Universal Plug
and Play) in the screen.The UPnP feature allows the devices, such as Internet computers, to
access the local host resources or devices as needed. UPnP devices can be automatically
discovered by the UPnP service application on the LAN.
-51-

TP-Link tl-wr845n Specifications

General

DSL WAN	No
Ethernet WAN	Yes
VPN support	PPTP, L2TP, IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
Ethernet LAN (RJ-45) ports	5
Product type	Tabletop router
Product color	White
Antennas quantity	3
Antenna gain level (max)	5 dBi
Output current	0.6 A
Output voltage	9 V
Power source type	DC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, RoHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	144 mm
Width	230 mm
Height	35 mm
