TP-Link tl-wr845n User Manual

TL-WR845N
300Mbps Wireless N Router

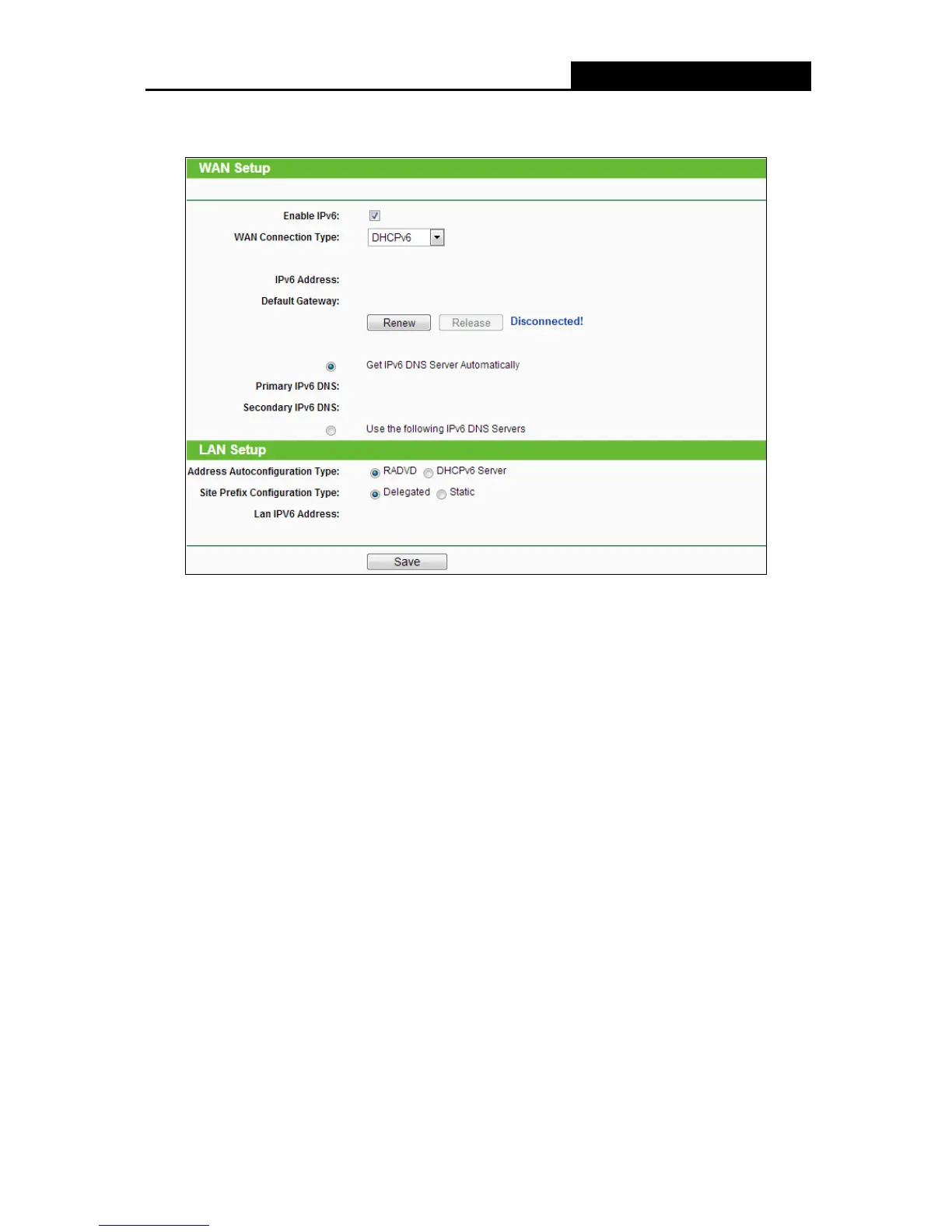

4.17.2 IPv6 Setup
 Enable IPv6 - Tick the checkbox to enable the IPv6 function. It’s enabled by default.
 WAN Connection Type - Choose the correct WAN connection type based on your ISP
network topology.
• SLAAC - Connections which use RADVD IPv6 address assignment.
• DHCPv6 - Connections which use dynamic IPv6 address assignment.
• Static IPv6 - Connections which use static IPv6 address assignment.
• PPPoEv6 - Connections which use PPPoEV6 that requires a user name and password.
• Tunnel 6to4 - Connections which use 6to4 address assignment.
Different types of WAN connection require you to do different settings. Below are the detailed
explanations for the respective type.
-79-

TP-Link tl-wr845n Specifications

General

DSL WAN	No
Ethernet WAN	Yes
VPN support	PPTP, L2TP, IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
Ethernet LAN (RJ-45) ports	5
Product type	Tabletop router
Product color	White
Antennas quantity	3
Antenna gain level (max)	5 dBi
Output current	0.6 A
Output voltage	9 V
Power source type	DC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, RoHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	144 mm
Width	230 mm
Height	35 mm
