TL-WR845N
300Mbps Wireless N Router
the use of cryptographic security services. To allow IPSec tunnels to pass through the
router, keep the default, Enabled.
 ALG - It is recommended to enable Application Layer Gateway (ALG) because ALG allows
customized Network Address Translation (NAT) traversal filters to be plugged into the
gateway to support address and port translation for certain application layer "control/data"
protocols such as FTP, TFTP, H323 etc.
 FTP ALG - To allow FTP clients and servers to transfer data across NAT, keep the
default Enable.
 TFTP ALG - To allow TFTP clients and servers to transfer data across NAT, keep the
default Enable.
 H323 ALG - To allow Microsoft NetMeeting clients to communicate across NAT, keep
the default Enable.
 RTSP ALG - To allow some media player clients to communicate with some streaming
media servers across NAT, click Enable.
 SIP ALG - To allow some multimedia clients to communicate across NAT, click Enable.
Click the Save button to save your settings.

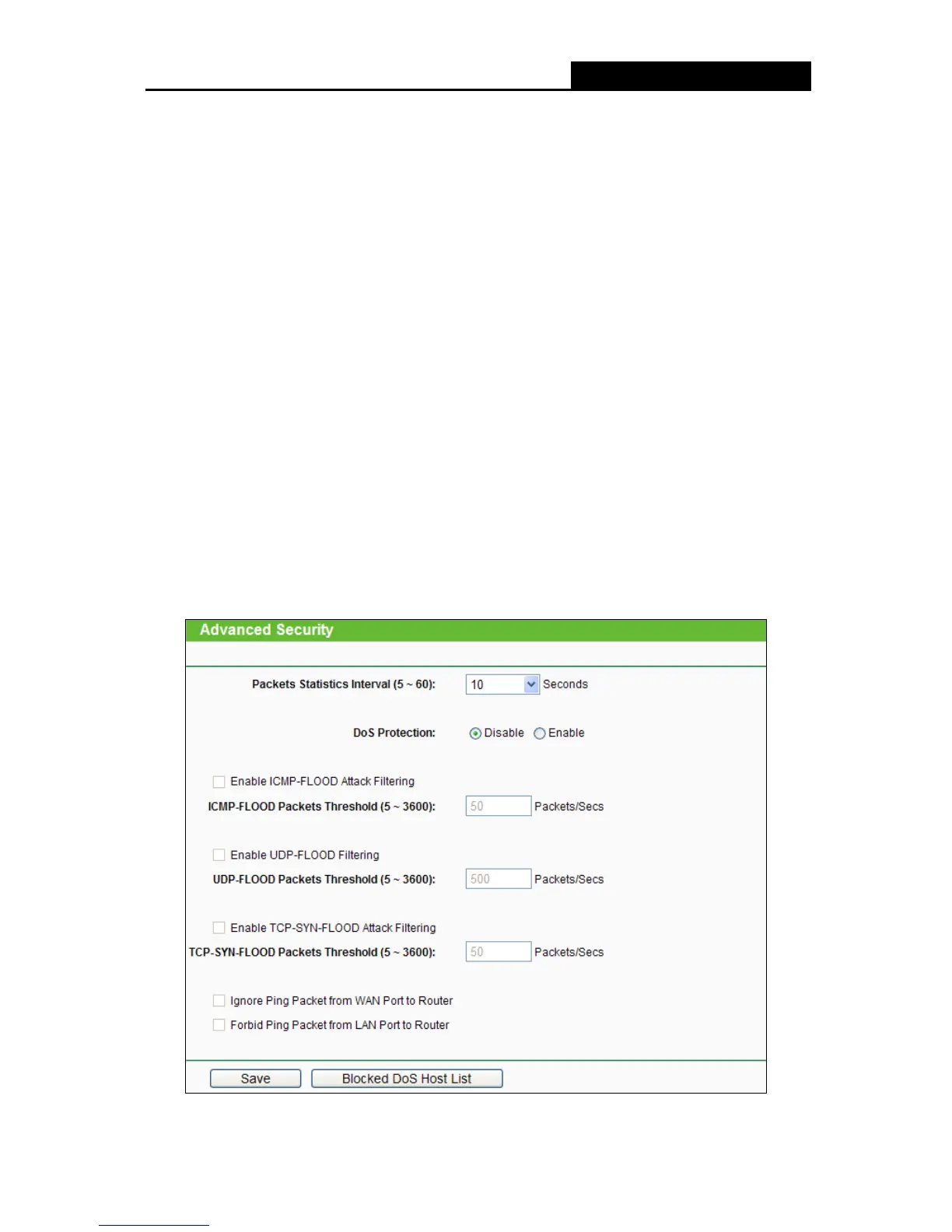

4.10.2 Advanced Security
Choose menu “Security > Advanced Security”, you can protect the router from being attacked
by TCP-SYN Flood, UDP Flood and ICMP-Flood in the screen as shown in the figure below.
-54-

TP-Link tl-wr845n Specifications

General

DSL WAN	No
Ethernet WAN	Yes
VPN support	PPTP, L2TP, IPSec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Memory card slot(s)	-
Ethernet LAN (RJ-45) ports	5
Product type	Tabletop router
Product color	White
Antennas quantity	3
Antenna gain level (max)	5 dBi
Output current	0.6 A
Output voltage	9 V
Power source type	DC
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, RoHS
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %

Weight and Dimensions

Depth	144 mm
Width	230 mm
Height	35 mm
