Trane RTHD series User Manual

Operator Interface Controls
86 RTHD-SVX02H-EN
Save.

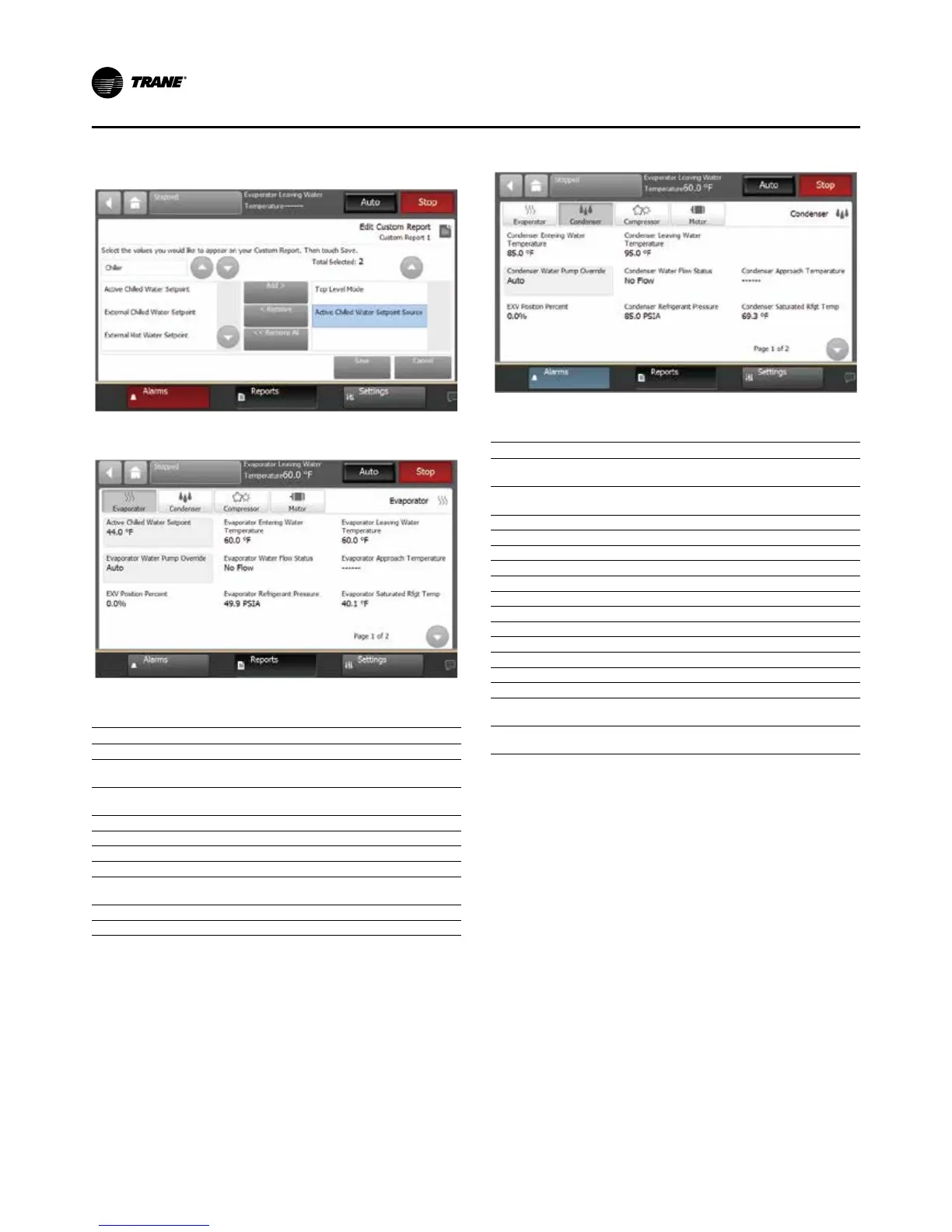

Figure 47. Edit Custom Report screen
Figure 48. Report Evaporator Screen
Table 25. Report Evaporator Screen Items
Description Resolution Units
Active Chilled Water Setpoint X.X
°
F /
°
C
Evaporator Entering Water Tempera-
ture
X.X
°
F /
°
C
Evaporator Leaving Water Tempera-
ture
X.X
°
F /
°
C
Evaporator Water Flow Status Flow, No Flow
Text
Evaporator Water Pump Override Auto, On
Text
Evaporator Approach Temperature X.X
°
F /
°
C
EXV Position Percent X.X
%
Evaporator Refrigerant Pressure XXX.X PSIA/
kPaA
Evaporator Saturated Rfgt Temp X.X
°
F /
°
C
Evaporator Refrigerant Liquid Level X.XX in/mm
Figure 49. Report Condenser Screen
Table 26. Report Condenser Screen Items
Description Resolution Units
Condenser Entering Water Tem-
perature
X.X °F / °C
Condenser Leaving Water Tem-
perature
X.X °F / °C
Condenser Water Flow Status Flow, No Flow Text
Condenser Water Pump Override Auto, On Text
Condenser Approach Temperature X.X °F / °C
EXV Position Percent X.X %
CondenserRefrigerant Pressure XXX.X PSIA/kPaA
Condenser Saturated Rfgt Temp X.X °F / °C
Differential Refrigerant Pressure XXX.X PSIA/kPaA
Outdoor Air Temperature X.X °F / °C
Recovery Active Active Active/InActive Text
Active Heat Recovery Setpoint X.X °F / °C
Heat Recovery Tank Water Temp X.X °F / °C
Heat Recovery Water Flow Switch Flow/No Flow Text
Heat Recovery Entering Water
Temp
X.X °F / °C
Heat Recovery Leaving Water
Temp
X.X °F / °C
