Operator Interface Controls
RTHD-SVX02H-EN 89
Table 29. Settings Screen Items
Description Resolution Units
Chiller Settings
Active Chilled Water Setpoint ± XXX.X
°
F /
°
C
Active Current Limit Setpoint XXX % %RLA
Active Panel Base Load Cmd On/Auto Text
Active Base Loading Setpoint XXX %
Active Base Loading Command On/Auto Text
Differential to Start XXX.X
°
F /
°
C
Differential to Stop XXX.X
°
F /
°
C
Setpoint Source (BAS/Ext/FP, Ext/ Front Panel, Front Panel),BAS/
Ext/FPText
Evaporator Water Pump Off Delay XX Min
Condenser Pump Prestart Time XX Min
High Evap Water Temp Cutout XXX.X
°
F /
°
C
Evaporator Leaving Water Temp Cut-
out
XX.X
°
F /
°
C
Low Refrigerant Temperature Cutout XX.X
°
F /
°
C
Current Limit Softload Start Point XXX.X %
Current Limit Control Softload Time XXXX Sec
Capacity Control Softload Time XXXX Sec
Local Atmospheric Pressure XXX.X psi/kPa
Power Up Start Delay XXX Min
Feature Settings
External Chilled/Hot Water Set-
pointEnableEnable/Disable
Text
External Current Limit SetpointEn-
ableEnable/Disable
Text
LCI-C Diagnostic EncodingEnable/
Disable
Text
Chilled Water Reset(Constant, Out-
door, Return, Disable), Disable
Text
Return Reset Ratio XXX %
Return Start Reset XXX.X
°
F /
°
C
Return Maximum Reset XXX.X
°
F /
°
C
Outdoor Reset Ratio XXX %
Outdoor Start Reset XXX.X
°
F /
°
C
Outdoor Maximum Reset XXX.X
°
F /
°
C
Mode Overrides
Evap Water Pump (Auto, On), Auto Text
Cond Water Pump (Auto, On), Auto Text
Display Reference
Date Format (“mmm dd, yyy”,
“dd-mmm-yyyy”),
mmm dd,
yyy
Text
Data Separator Text
Time Format (12-hour, 24-hour), 12-
hour
Text
Unit System (SI, English) English Text
Pressure Units (Absolute, Gauge),
Absolute
Text
Number Format Text
Display Settings
You can use the Tracer AdaptiView display to change the
format of the information that appears on the display,
and to clean the touch screen.
Viewing the Settings Screen
Touch the Settings button in the main menu area (Figure
43) to view the Settings screen. Display Settings iden-
tifies a column of buttons located on the screen (see
Figure 57). The buttons are:
• Display Preferences
• Language
• Date and Time
• Clean Display
Each button provide access to a screen that is related to
the button name.
Viewing and Changing Display Preferenc-
es
On the Settings screen, touch Display Preferences to
view a screen containing these buttons (see Figure 58):
• Date Format
• Date Separator
• Time Format
• Unit System
• Pressure Units
• Number Format

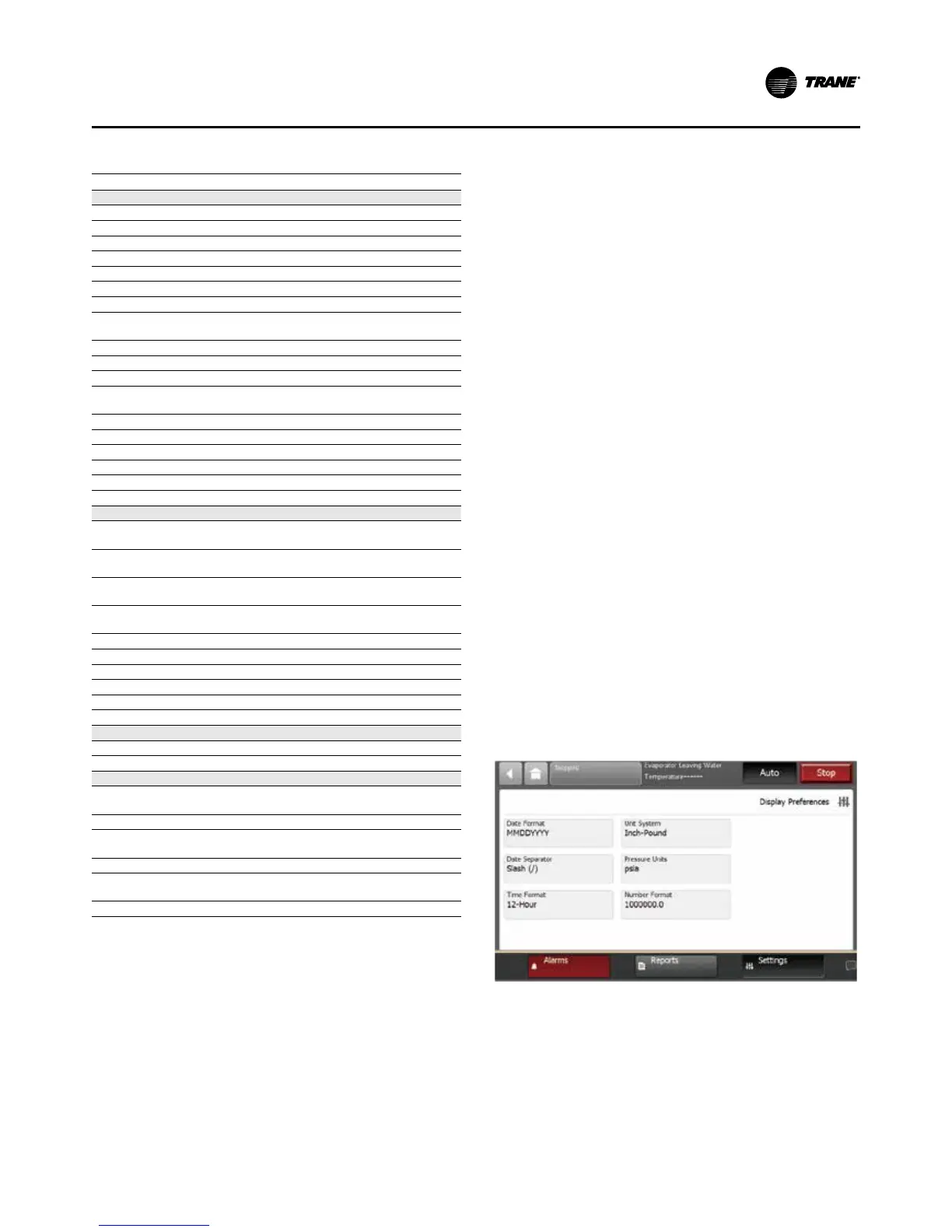

Figure 57. Display ReferenceScreen
Each of the buttons shows the name of a display prefer-
ence and its format (current value). Touch any of these
buttons to view a screen where you can change the for-
mat . The button representing the format currently used
is shaded (see the “MMDDYYYY” button).
