Operator Interface Controls
90 RTHD-SVX02H-EN

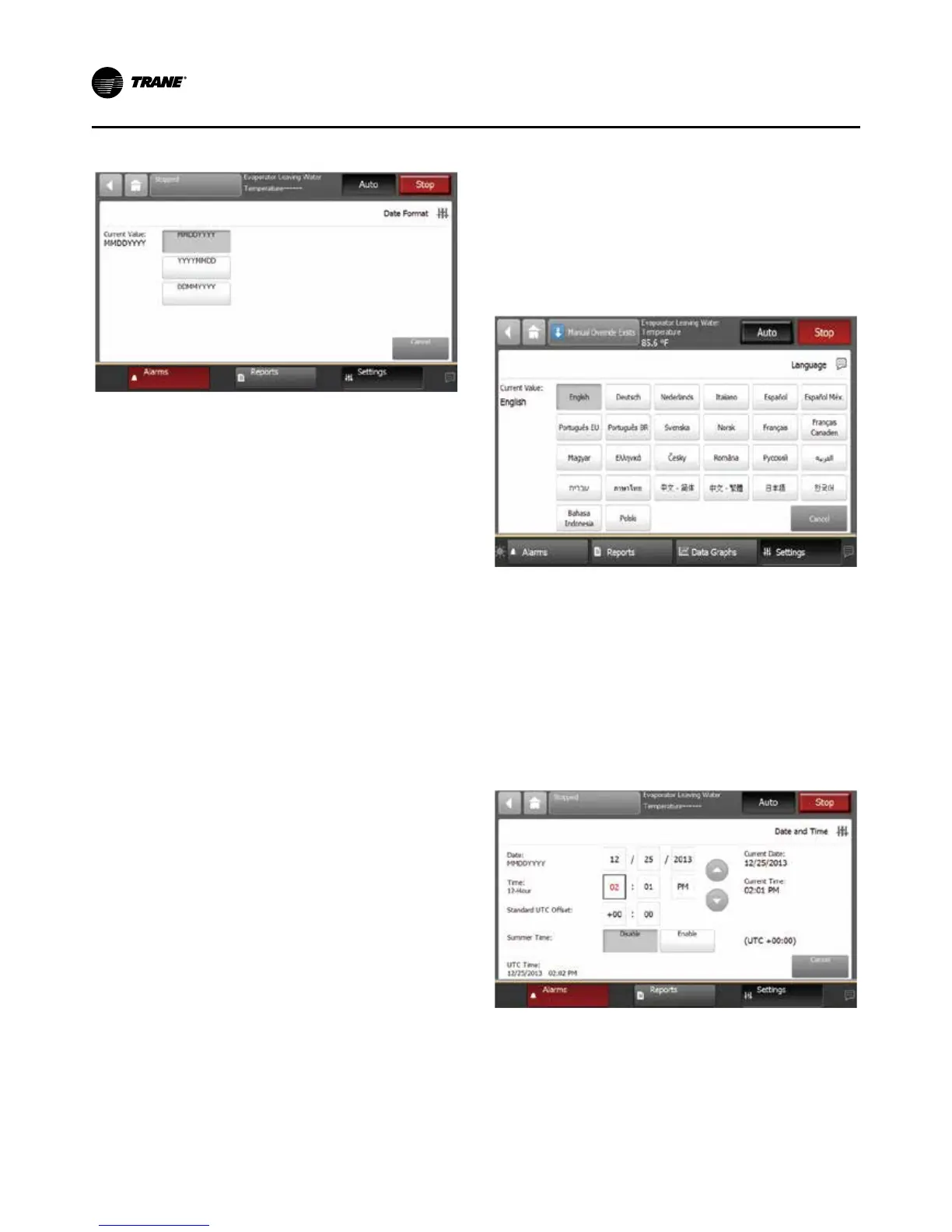

Figure 58. Data Format Page
To change the format:
1. Touch the button that shows that format you prefer.
2. Touch Save to confirm your selection and to return to
the Display Preferences screen.
Date Format
Use the Date Format screen to choose from the following
date formats:
• MMDDYYYY (default)
• YYYYMMDD
• DDMMYYYY
Date Separator
Use the Date Separator screen to choose from the fol-
lowing date formats:
• None
• Slash (default)
• Hyphen
Time Format
Use the Time Format screen to choose from the follow-
ing time formats:
• 12 hour (default)
• 24 hour
Units System
Use the Display Units screen to choose from the follow-
ing display units:
• SI
• Inch-Pounds (default)
Pressure Units
Use the Pressure Units screen to choose from the follow-
ing pressure units:
• kPaA (default if “SI” is chosen for display units)
• kPaG
• PSIA (default if “Inch-Pound” is chosen for display
units)
• PSIG
Number Format
• 1000000.0
• 1000000,0
Figure 59. Language Page
The language that is currently in use on the display is
expressed as the current value on the Language screen.
The button that displays the current value is shaded (see
the “English” buttonin Figure 59 as an example).
To change the language:
1. Touch the button that identifies the language you
prefer.
2. Touch Save to confirm your selection and to return to
the Settings screen.
Figure 60. Date and Time screen
The current date and time for the display is expressed as
the current value. The current value appears below the
center line on the screen.
Above the center line, the following date and time attri-
butes appear:
• Month
• Day
