Maintenance and Adjustment
108

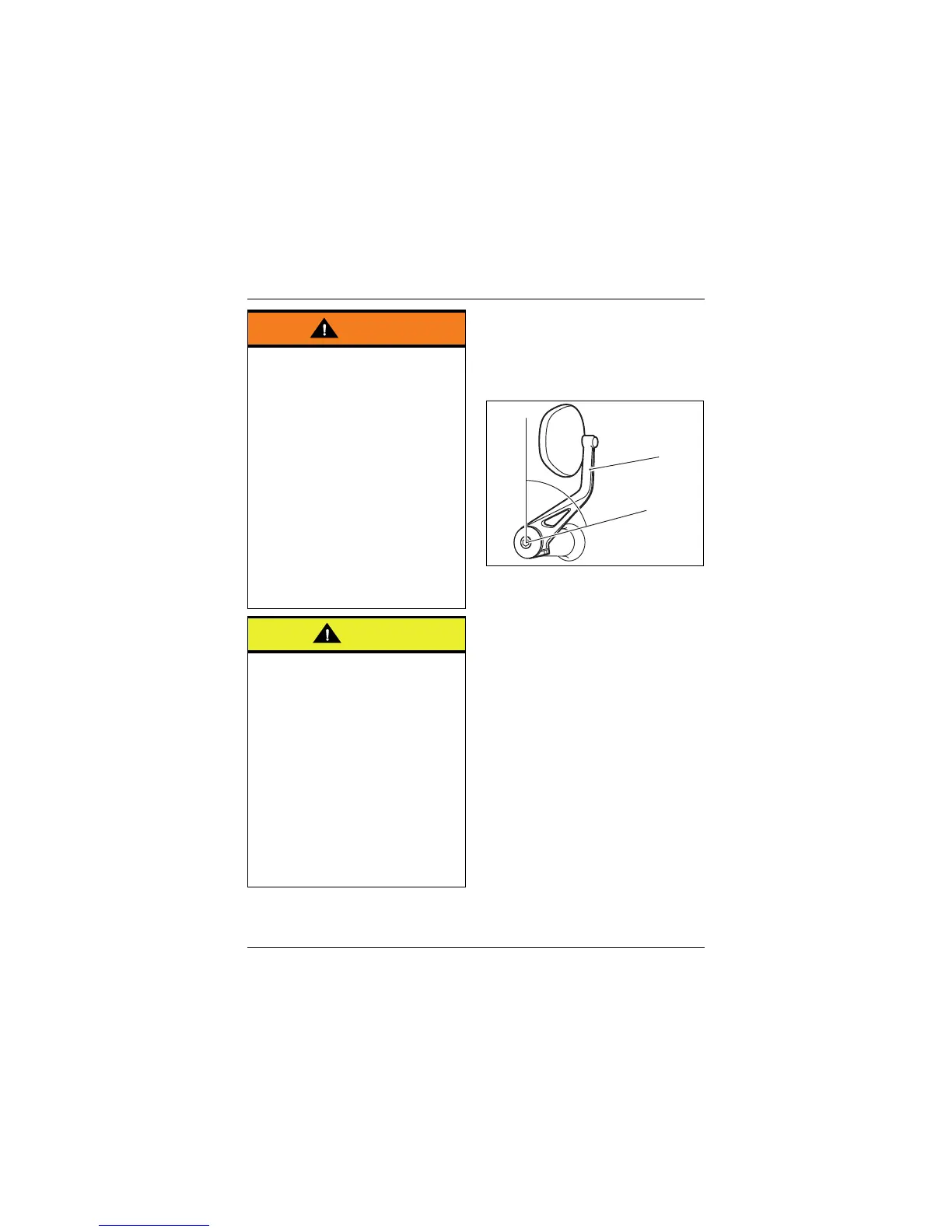

The bar end mirrors will be set by your
dealer and will not normally require any
adjustment. Should adjustment be
necessary, do not rotate the mirror
beyond 75°, measured from the vertical
section of the mirror arm.
1. Mirror arm vertical section
Incorrect adjustment of the bar end
mirrors may cause the mirror arm to
make contact with the fuel tank, brake
or clutch levers or other parts of the
motorcycle.
This will result in damage to the fuel
tank, screen or other parts of the
motorcycle, or restrict steering
movement resulting in loss of
motorcycle control and an accident.
Adjust the mirrors as required to
ensure they do not contact any part
of the motorcycle. After adjustment,
move the handlebar to the left and
right full lock while checking that the
mirrors do not contact the fuel tank,
brake or clutch levers or other parts
of the motorcycle.
Incorrect adjustment of the bar end
mirrors may cause the mirror arm to
make contact with the fuel tank, brake
or clutch levers or other parts of the
motorcycle.
This will result in damage to the fuel
tank, brake or clutch levers or other
parts of the motorcycle.
Adjust the mirrors as required to
ensure they do not contact any part
of the motorcycle. After adjustment,
move the handlebar to the left and
right full lock while checking that the
mirrors do not contact the fuel tank,
brake or clutch levers or other parts
of the motorcycle.
75°
1
