Triumph Thunderbird User Manual

37
General Information

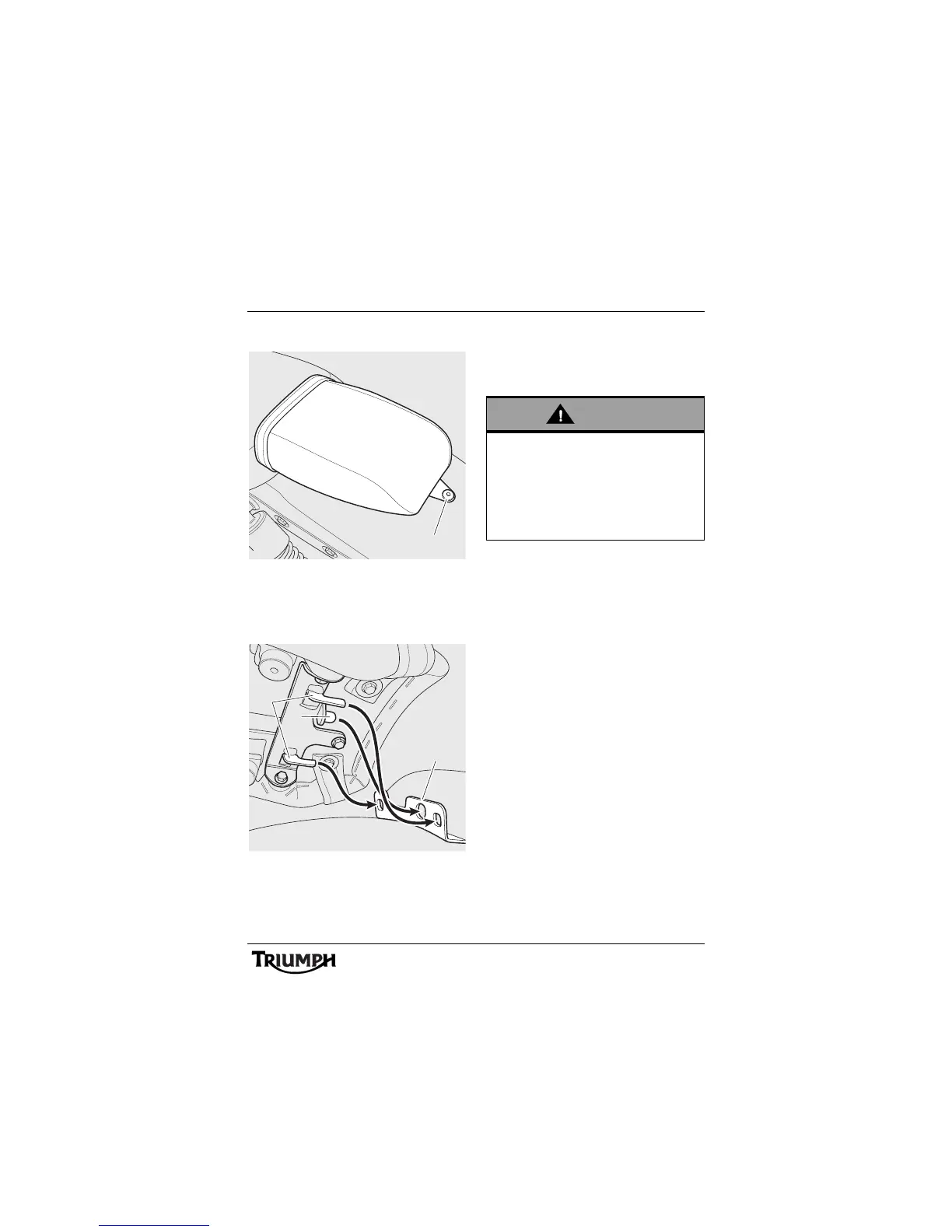

Pillion Seat Removal
1. Pillion seat fixing
To remove the pillion seat, remove the rear
fixing using the Allen key provided in the tool
kit (see page 35). Lift the seat up at the back
for complete removal from the motorcycle.
1. Pillion seat hooks
2. Location peg
3. Pillion seat bracket
To refit the seat, engage the seat’s two hooks
and location pin into the bracket behind the
rider’s seat. Fit and tighten the rear fixing to
10 N m .
cfbm
1
cfcn
1
2
3
Warning
To prevent detachment of the seat during
riding, after fitting always grasp the seat
and pull firmly upwards. If the seat is not
correctly secured it may detach from the
motorcycle. A loose or detached seat could
cause loss of motorcycle control and an
accident.

Triumph Thunderbird Specifications

General

Manufacturer	Triumph
Displacement	1699 cc
Bore x Stroke	107.1 mm x 94.3 mm
Compression Ratio	9.7:1
Clutch	Wet, multi-plate
Gearbox	6-speed
Frame	Tubular steel, twin spine
Front Tyre	120/70 R19
Rear Tyre	200/50 R17
Seat Height	700 mm
Fuel System	Fuel injection
Final Drive	Belt
Front Suspension	Telescopic forks
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 310mm floating discs
Rear Brakes	Brembo 2-piston caliper
Fuel Tank Capacity	22 L
Power	97 hp (72 kW) @ 5900 rpm
