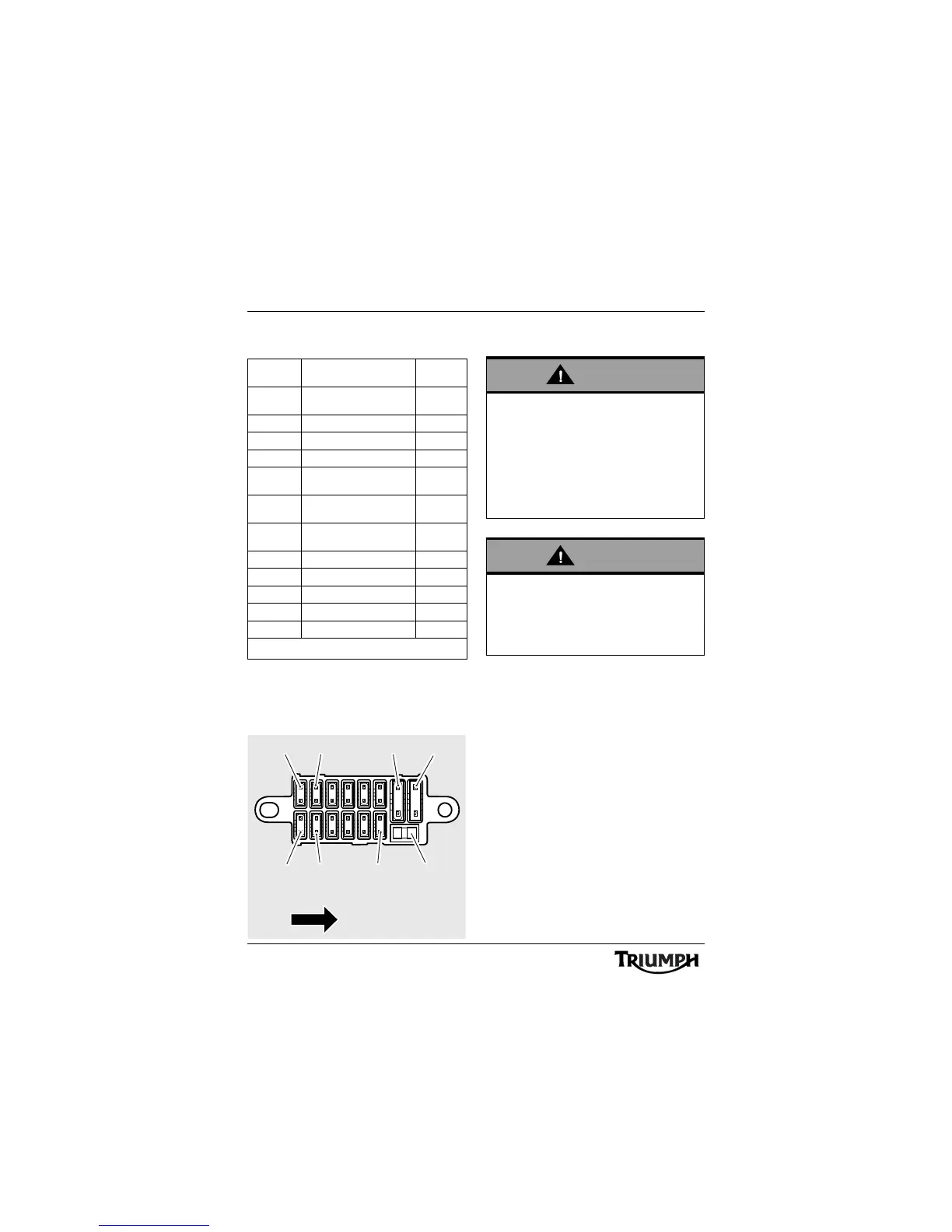

Triumph Thunderbird User Manual

94
Maintenance and Adjustment
Models fitted with ABS:
Note:
• Numbers shown in the diagram
below correspond to the fuse
numbers in the table above.
Headlights
Position Circuit Protected Rating
(Amps)
1 Dip and main headlight
beams, starter solenoid
15
2ABS 20
3 Auxiliary lights 5
4 Cooling fan 15
5 Engine management
system
20
6 Accessory socket,
accessory lights, fog lights
15 * o r
20*
7 Alarm, instruments,
heated grips
10
8ABS 20
9 Horn, brake switch 10
10 Ignition, starter circuit 10
11 Main fuse 30
12 S p a re 3 0
* Refer to the label in the fuse box cover
30
30
10 10 10 20 10
Front of
Motorcycle
15
20 15
5
20 15 15
11
1
5
Fuse
Puller
Spare
Spare
Spare
6
Warning
Adjust road speed to suit the visibility and
weather conditions in which the motorcycle
is being operated.
Ensure that the beam is adjusted to
illuminate the road surface sufficiently far
ahead without dazzling oncoming traffic.
An incorrectly adjusted headlight may
impair visibility causing an accident.
Warning
Never attempt to adjust a headlamp beam
when the motorcycle is in motion.
Any attempt to adjust a headlamp beam
when the motorcycle is in motion may
result in loss of control and an accident.

Triumph Thunderbird Specifications

General

Manufacturer	Triumph
Displacement	1699 cc
Bore x Stroke	107.1 mm x 94.3 mm
Compression Ratio	9.7:1
Clutch	Wet, multi-plate
Gearbox	6-speed
Frame	Tubular steel, twin spine
Front Tyre	120/70 R19
Rear Tyre	200/50 R17
Seat Height	700 mm
Fuel System	Fuel injection
Final Drive	Belt
Front Suspension	Telescopic forks
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 310mm floating discs
Rear Brakes	Brembo 2-piston caliper
Fuel Tank Capacity	22 L
Power	97 hp (72 kW) @ 5900 rpm
