Triumph Thunderbird - Maintenance and Adjustment; Headlight Vertical and Horizontal Adjustment

95
Maintenance and Adjustment

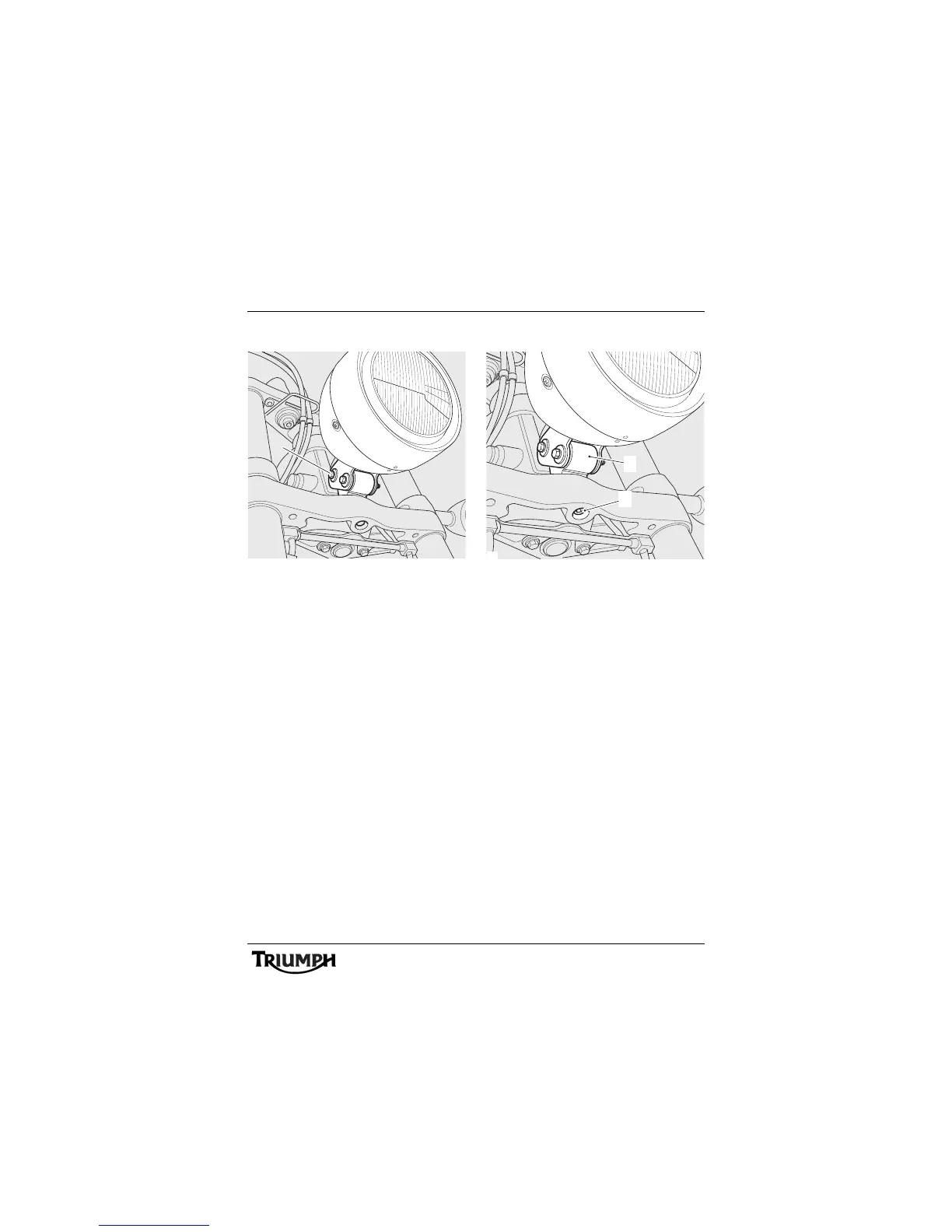

Headlight Vertical Adjustment
1. Vertical beam adjuster
Switch the headlight dipped beam on.
Slacken the clamp bolt sufficient to allow
restricted movement of the headlight.
Adjust the position of the headlight to give
the required beam setting.
Tighten the clamp bolt to 9Nm.
Re-check the headlight beam setting.
Switch the headlight off when the beam
setting is satisfactorily set.
Headlight Horizontal Adjustment
1. Horizontal beam adjuster
2. Headlight mounting bracket
Switch the headlight dipped beam on.
Slacken the headlight mounting bracket
fixing.
Adjust the horizontal position of the headlight
and mounting bracket to give the required
beam setting.
Tighten the headlight mounting bracket
fixing to 27 Nm.
Re-check the headlight beam settings.
Switch the headlight off when the beam
setting is satisfactorily set.
1
cfgy
1
fgy
2
