Maintenance and Adjustment

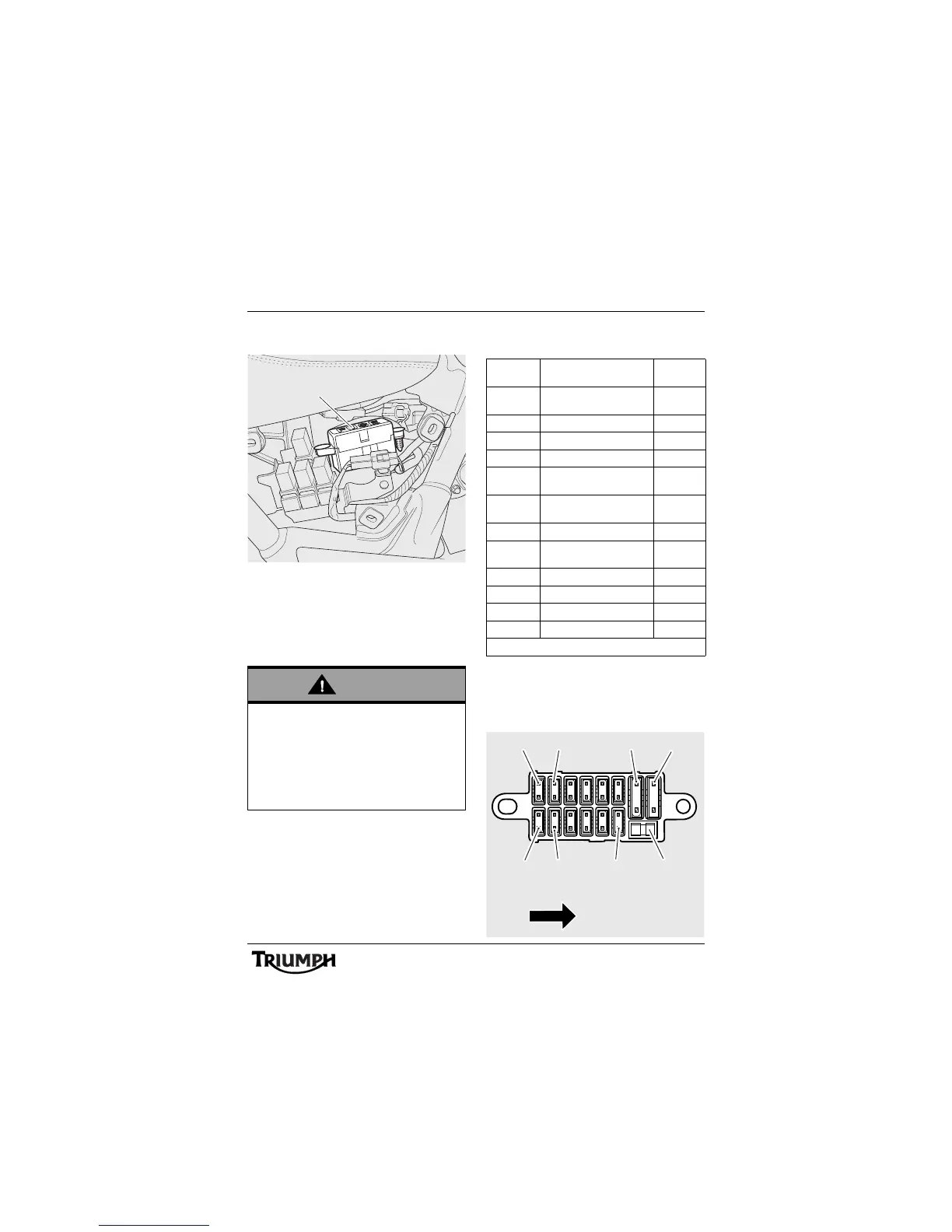

Fuse Box
1. F u s e b o x
The fuse box is located behind the right hand
side panel.
To allow access to the fuse box, the right
hand side panel must be removed (see
page 34).
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown
fuse, use the tables below to establish which
fuse has blown.
Models without ABS:
Note:
• Numbers shown in the diagram
below correspond to the fuse
numbers in the table above.
Warning
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
1
cfgp
Position Circuit Protected Rating
(Amps)
1 Dip and main headlight
beams, starter solenoid
15
2Spare 10
3 Auxiliary lights 5
4 Cooling fan 15
5 Engine management
system
20
6 Accessory socket, heated
grips
15
7 Alarm, instruments 10
8 Accessory lights, fog
lights
10 * o r
15 *
9 Horn, brake switch 10
10 Ignition, starter circuit 10
11 Main fuse 30
12 S p a r e 3 0
* Refer to the label in the fuse box cover
30
30
10 10 10 10 10
Front of
Motorcycle
15
20 15
5
10 15 15
11
1
5
Fuse
Puller
Spare
Spare
Spare
6

Triumph Thunderbird Specifications

General

Manufacturer	Triumph
Displacement	1699 cc
Bore x Stroke	107.1 mm x 94.3 mm
Compression Ratio	9.7:1
Clutch	Wet, multi-plate
Gearbox	6-speed
Frame	Tubular steel, twin spine
Front Tyre	120/70 R19
Rear Tyre	200/50 R17
Seat Height	700 mm
Fuel System	Fuel injection
Final Drive	Belt
Front Suspension	Telescopic forks
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 310mm floating discs
Rear Brakes	Brembo 2-piston caliper
Fuel Tank Capacity	22 L
Power	97 hp (72 kW) @ 5900 rpm
