Triumph XRX User Manual

Maintenance and Adjustment
118

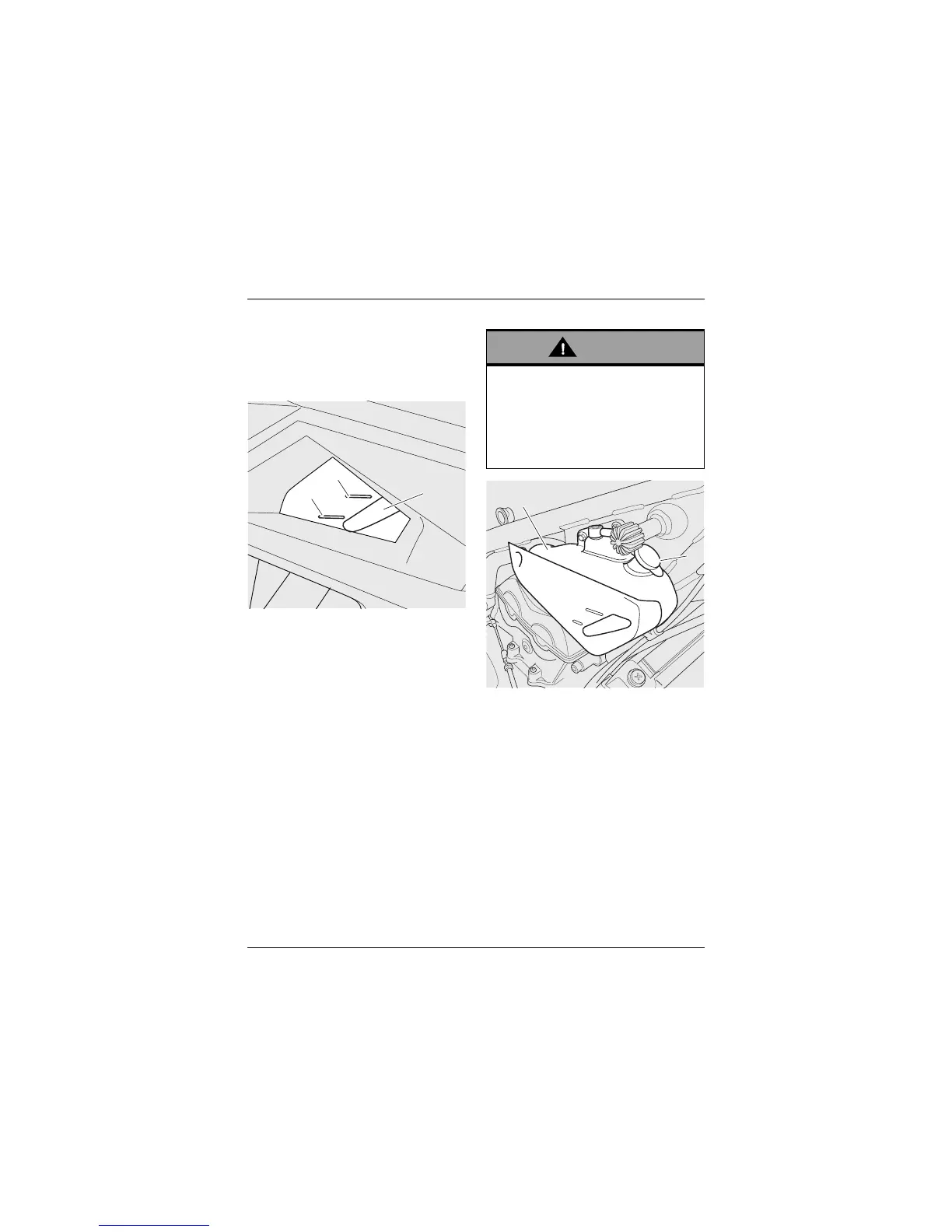

Coolant Level Inspection
Note:
• The coolant level should be checked
when the engine is cold (at room or
ambient temperature).
1. Expansion tank
2. MAX mark
3. MIN mark
Position the motorcycle on level ground
and in an upright position. The
expansion tank can be viewed from the
right hand side of the motorcycle, below
and towards the front of the fuel tank.
Check the coolant level in the expansion
tank. The coolant level must be between
the MAX and MIN marks. If the coolant is
below the minimum level, the coolant
level must be adjusted.
Coolant Level Adjustment
1. Expansion tank (fuel tank shown
removed for clarity)
2. Expansion tank cap
Allow the engine to cool.
The expansion tank cap can be removed
from the right hand side of the
motorcycle, between the front of the
fuel tank and the frame.
Remove the cap from the expansion
tank and add coolant mixture through
the filler opening until the level reaches
the MAX mark. Refit the cap.
1
2
3
Warning
Do not remove the expansion tank or
radiator pressure cap when the
engine is hot. When the engine is hot,
the coolant inside the radiator will be
hot and also under pressure. Contact
with this hot, pressurised coolant will
cause scalds and skin damage.
1
2
