Triumph XRX User Manual

General Information
84

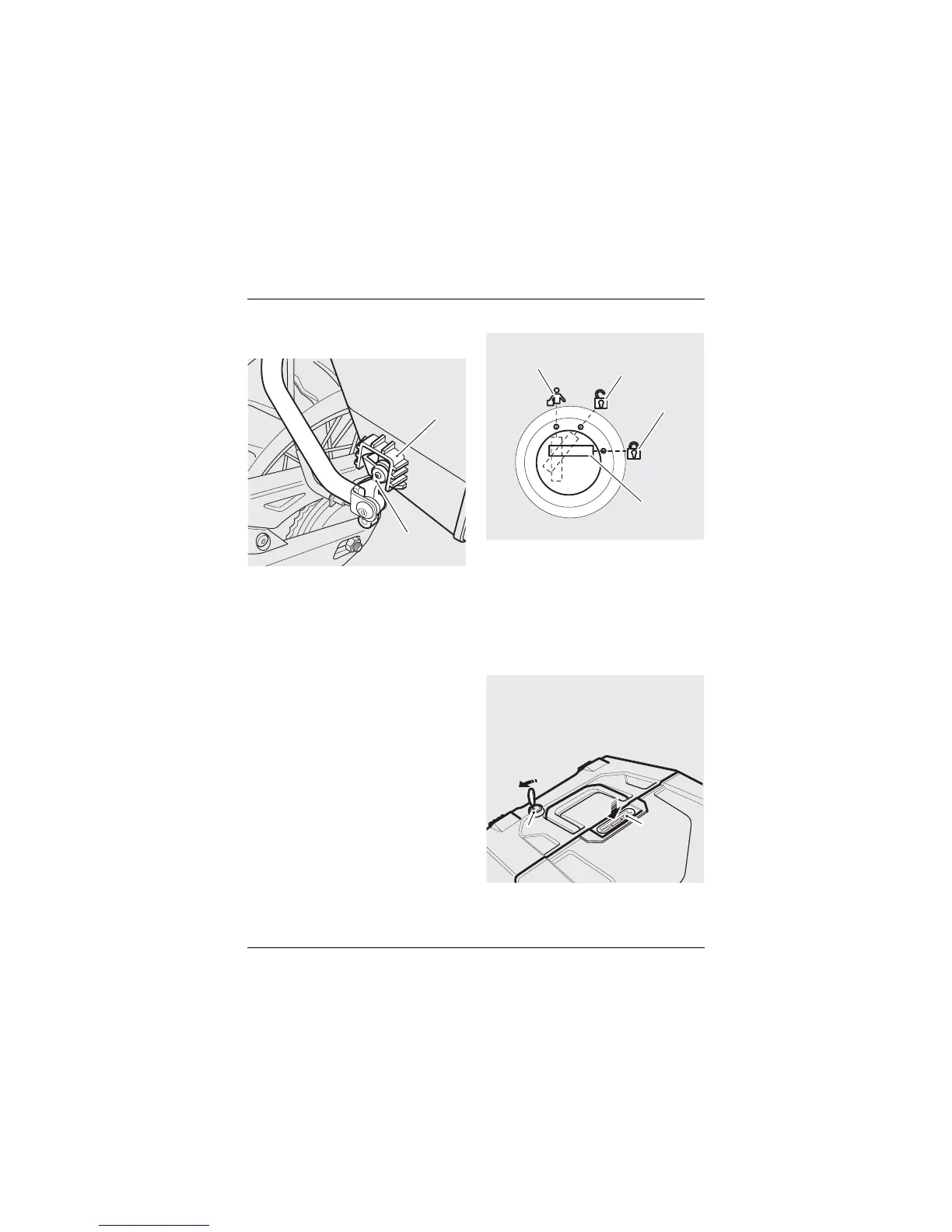

Ensure that the third mount rocker arm
fits into the locating cup moulded into
the front of the pannier.
1. Third mount rocker arm
2. Locating cup
Lock the pannier to the rail by pressing
the carrying handle to the fully closed
position whilst turning the key to the
LOCK position. Remove the key.
Pannier Operation
1. Key slot (shown in the LOCK position)
2. Lock position symbol
3. Unlock position symbol
4. Release position symbol
To unlock and open the pannier, insert
the key and turn it to the UNLOCK
position, then press down on the latch
plate. The lid can then be opened.
1. Lock
2. Latch plate
2
1
2
3
4
1
1
2
T0880

Triumph XRX Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, in-line 3-cylinder
Front Brake Calipers	Brembo Stylema 4 piston radial monobloc calipers
Rear Brake Calipers	Brembo single piston sliding caliper
Seat Height	830 mm (32.7 in)
Fuel System	Fuel injection
