Triumph XRX User Manual

Maintenance and Adjustment
146

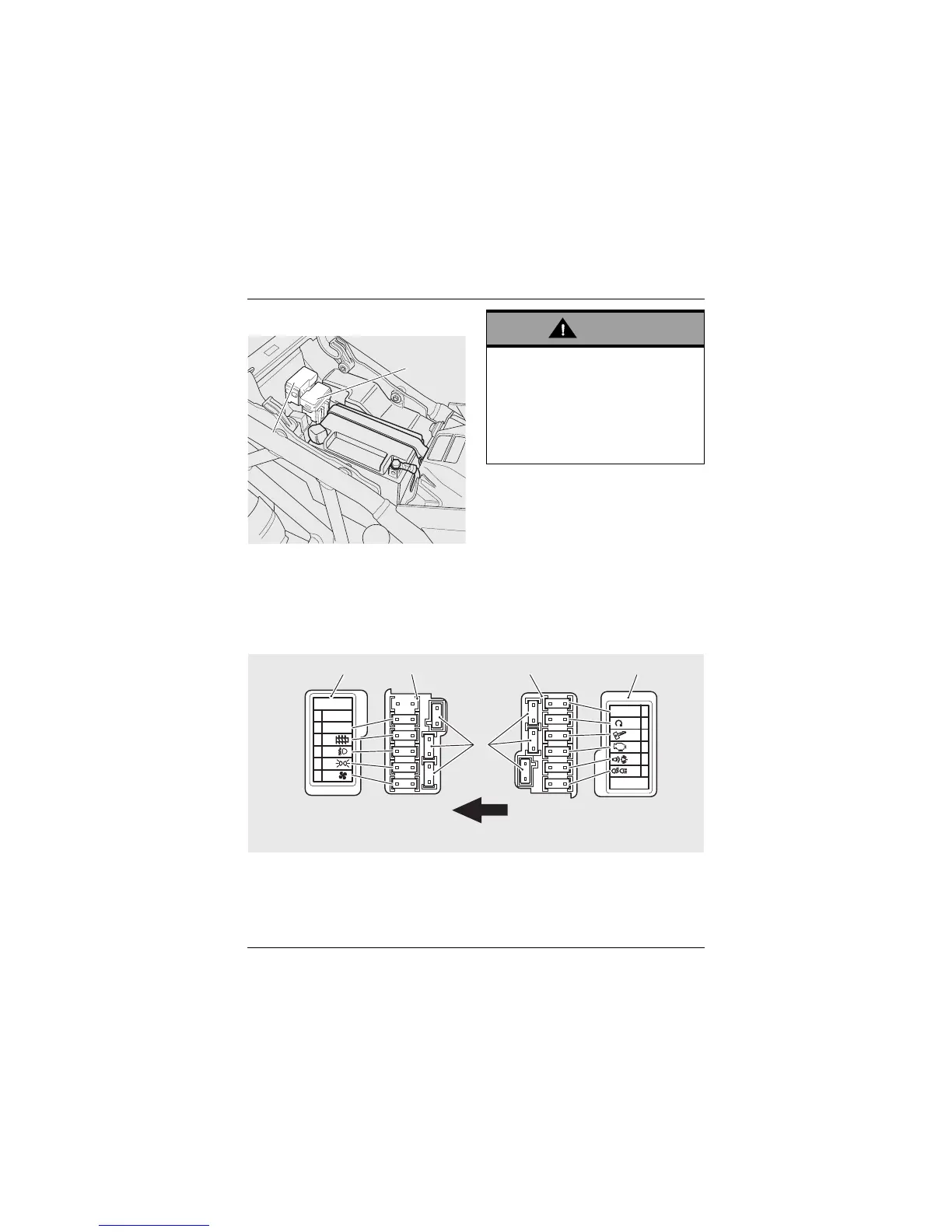

Fuse Boxes
1. Front fuse box
2. Rear fuse box
The fuse boxes are located beneath the
rider's seat.
To allow access to the fuse boxes, the
rider's seat must be removed.
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown
fuse, use the tables to establish which
fuse has blown.
The fuse identification numbers listed in
the tables correspond with those printed
on the fuse box covers, as shown below.
Spare fuses are located at right angles
to the main fuses and should be
replaced if used.
1. Front fuse box cover
2. Front fuse box
3. Spare fuses
4. Rear fuse box
5. Rear fuse box cover
cgjk
1
2
Warning
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover) and never use
a fuse of higher rating. Use of an
incorrect fuse could lead to an
electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
15
15
5
5
15
10
15
10
EMPTY
6
OPEN
15A
5
5A
4
10A
3
5A
2
15A 1
ACC
20
20
10
15
10
20
5
10
20A 1
OPEN
10A 2
15A 3
20A
4
10A
5
20A
6
20
ABS
21 45
3
cebw_3
Front of Motorcycle
