Maintenance and Adjustment
135
Rebound Damping Adjustment –
Tiger XC
X only

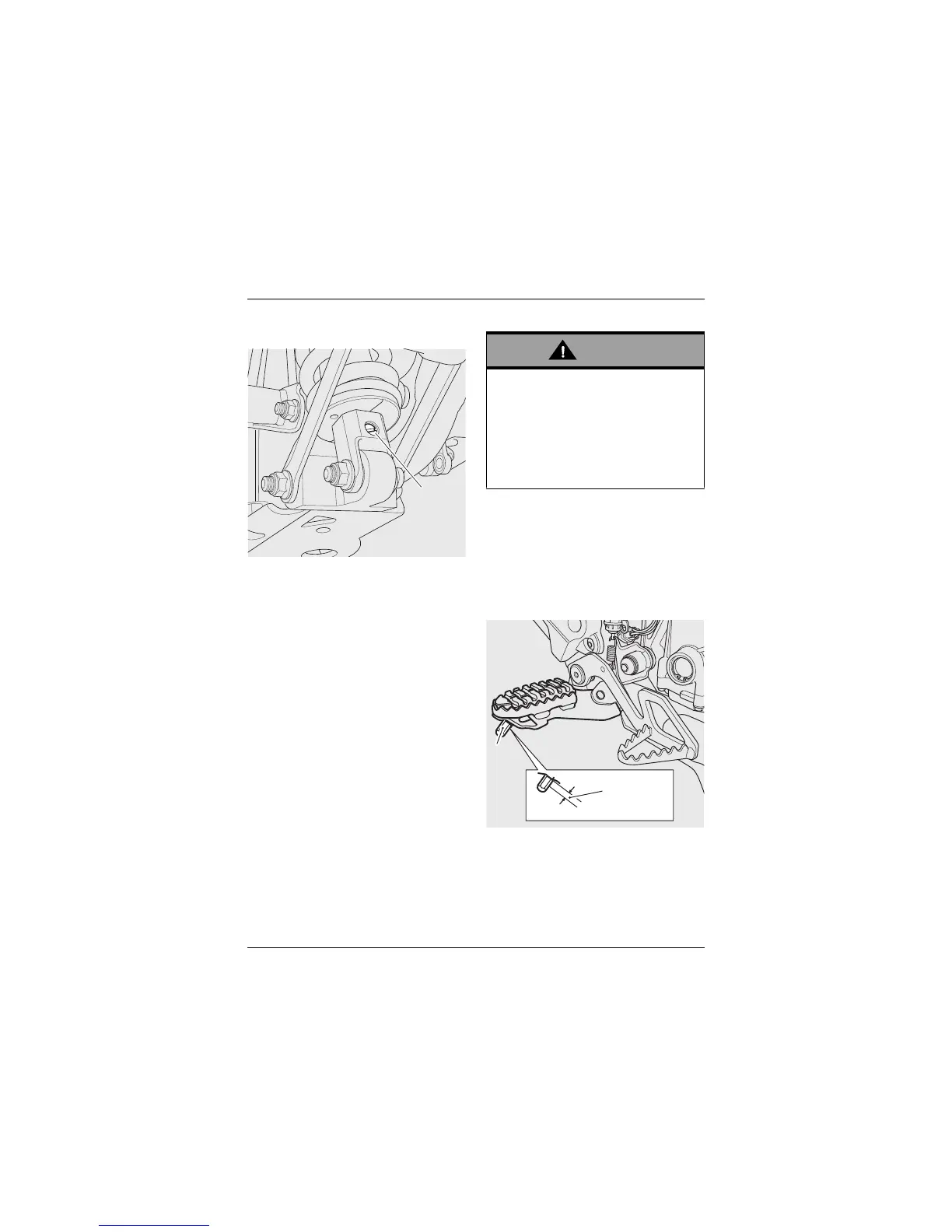

1. Rebound damping adjuster
The rebound damping adjuster is located
at the bottom of the RSU and is
accessible from either side of the
motorcycle.
To adjust the rebound damping setting,
rotate the slotted adjuster clockwise to
increase, and anticlockwise to decrease.
Note:
• The setting is measured as the
number of adjuster turns
anticlockwise from the fully
clockwise (closed) position.
•The TigerXC
X model is delivered
from the factory with the rebound
adjuster set at the Solo (normal)
riding settings, as shown in the
relevant suspension chart (see
page 133).
Bank Angle Indicators
Bank angle indicators are located on the
riders footrests.
Regularly check the bank angle
indicators for wear.
The bank angle indicators have reached
the maximum wear limit and should be
replaced when they have worn down to
a length of 20 mm.
1. Bank angle indicator
2. Wear limit measurement
Use of a motorcycle with bank angle
indicators worn beyond the maximum
limit (as described below) will allow the
motorcycle to be banked to an unsafe
angle.
Banking to an unsafe angle may cause
instability, loss of motorcycle control
and an accident.
