Headlight Adjustment Lever for
Loaded Conditions
1. Headlight adjuster lever (unloaded
position)
2. Headlight adjuster lever (loaded
position)
For normal (unloaded) conditions the
headlight adjuster lever should be set in
the horizontal position (1).
For loaded conditions rotate the
headlight adjuster downwards until it
stops (2). This will lower the headlight
beams by approximately 2°.
Headlight Bulb Replacement
It is not necessary to remove the
headlight when bulb replacement
becomes necessary.

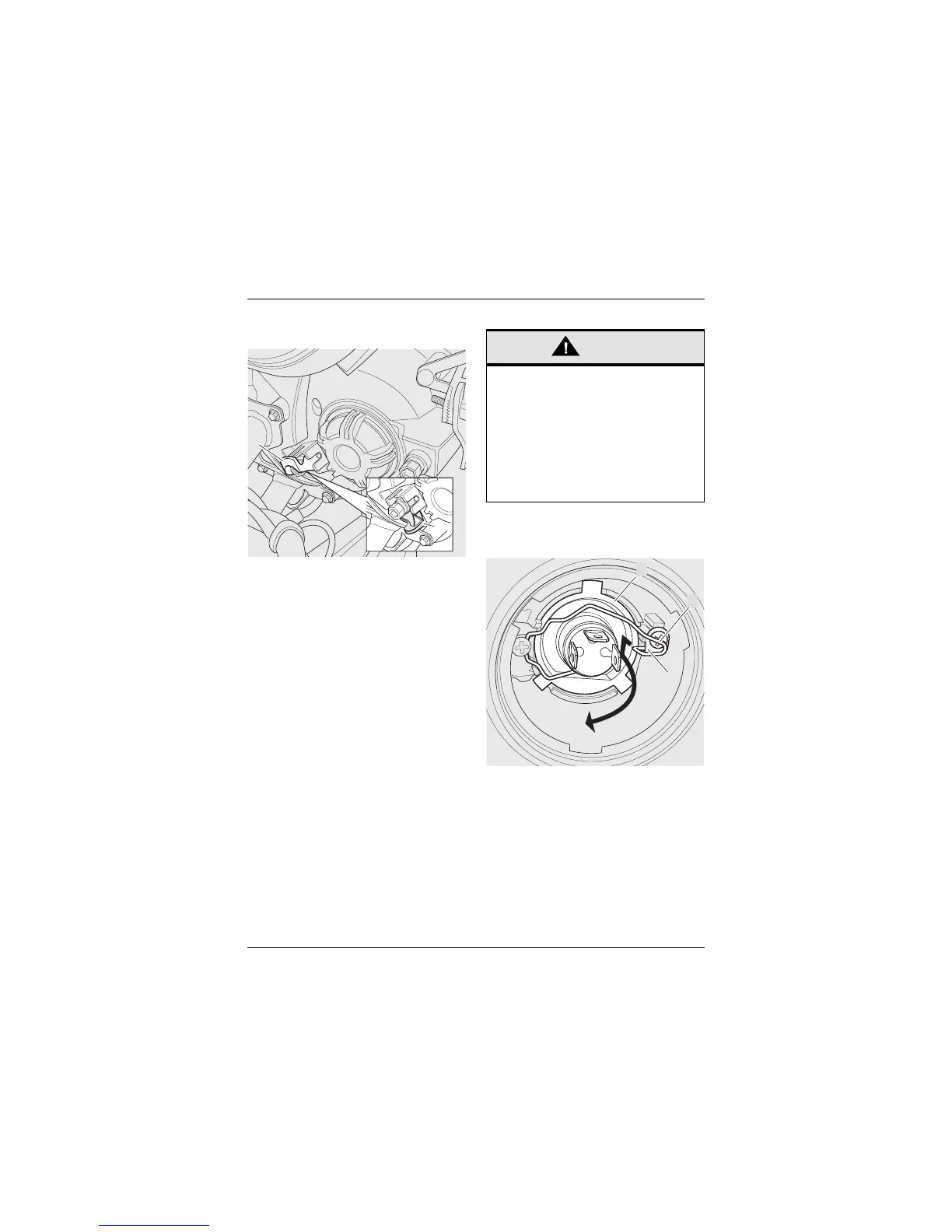

1. Bulb retainer (right hand shown)
2. Bulb retainer hook
3. Bulb
1
2
cgin
Caution
The use of non-approved headlight
bulbs may result in damage to the
headlight lens.
Use a genuine Triumph-supplied
headlight bulb as specified in the
Triumph Parts Catalogue.
Always have replacement headlight
bulbs installed by an authorised
Triumph dealer.
1
2
cgjn
3
