1.6 Specifications, Standards, and Firmware
The following list provides the features and specifications of the UBC1301-AA00.
Interfaces and Standards
Cable: F-Connector, female
USB: 1 USB 3.0 host port
LAN: (4) 10/100/1000 Mbps RJ45 ports
Tel ep ho n y : (2) RJ 11 p or ts, PacketCable 1.5/2.0 compatible
DOCSIS 3.1 certified
DOCSIS 1.0/1.1/2.0/3.0 certified
TEL2 Green
On – Telephony is enabled.
Off – Telephony is not provisioned.
Flashes– Call is in progress or EMTA is attempting to register.
MoCA Green
On – Device is connected to a MoCA network.
Off – Device is not connected to a MoCA network.
BATTERY Green
On – Battery is installed an AC power is on.
Off – No battery is installed.
Flashes– When battery power level is low (30 minutes or less remaining).
WPS White
When a user pushes the WPS button or triggers WPS via the web user interface, the WPS
LED flashes for 4 minutes until the PIN is entered from the wireless client. After a Wi-Fi
client attaches successfully, the LED remains on for 5 minutes, then turns off.

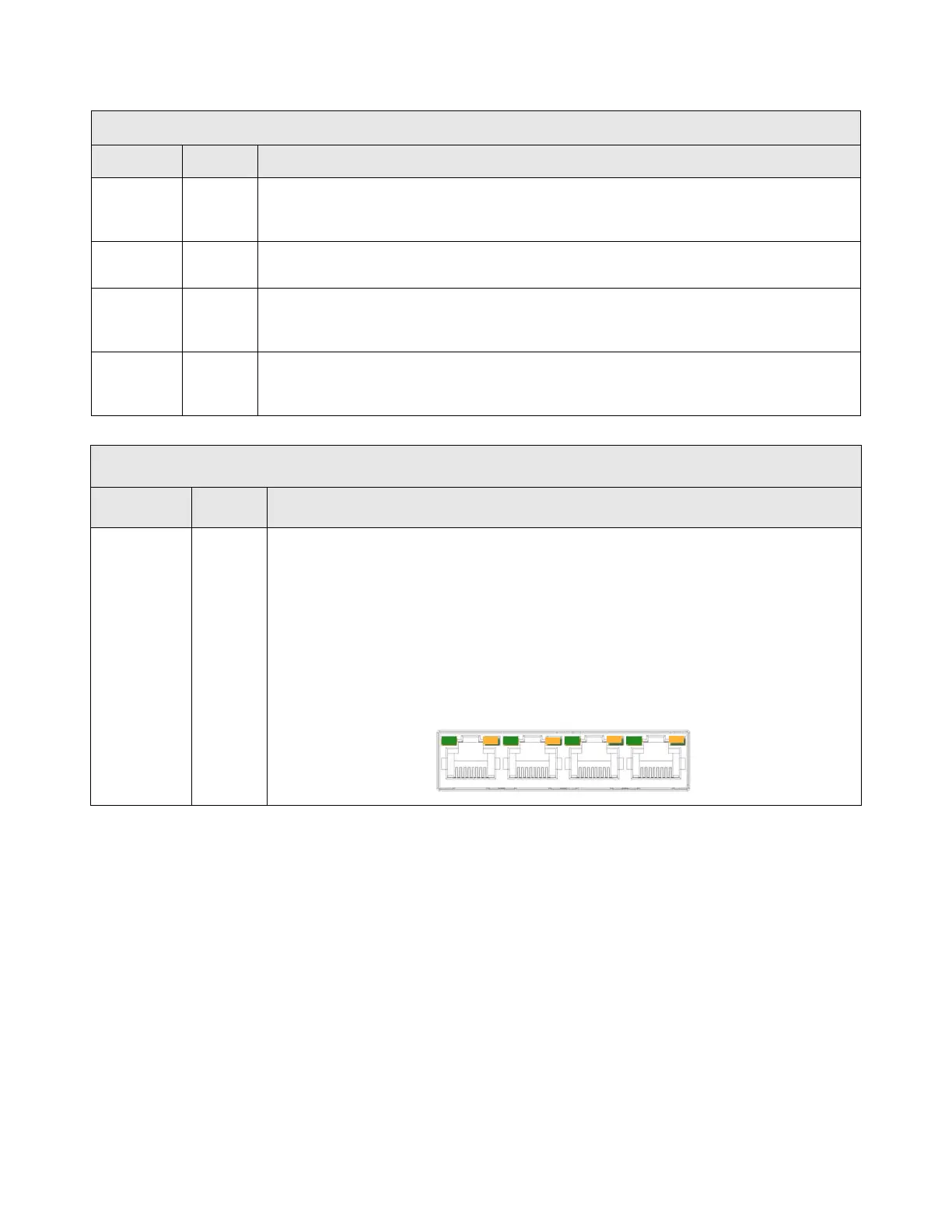

REAR PANEL
LED Color Description
ETHERNE
T 1-4
Green/
Orange
On Green – An Ethernet device is connected to the device at 1000 Mbps speeds (Gigabit
Ethernet).
On Orange – An Ethernet device is connected to the device at 10/100 Mbps speeds.
Flashes (in Green or Orange) – When data is being passed between the cable modem
and the connected device.
The Ethernet ports are used to connect Ethernet devices such as computers, gaming
consoles, and/or routers/hubs to the UBC1301-AA00 using RJ-45 cables. Each Ethernet
port on the back panel of the device has an LED to indicate its status when an Ethernet
device is connected.
FRONT PANEL
LED Color Description
