Ubee Interactive Using the Diagnostics Option
Ubee UBC1301-AA00 Advanced Wireless Voice Gateway Subscriber User Guide • March 2017 80

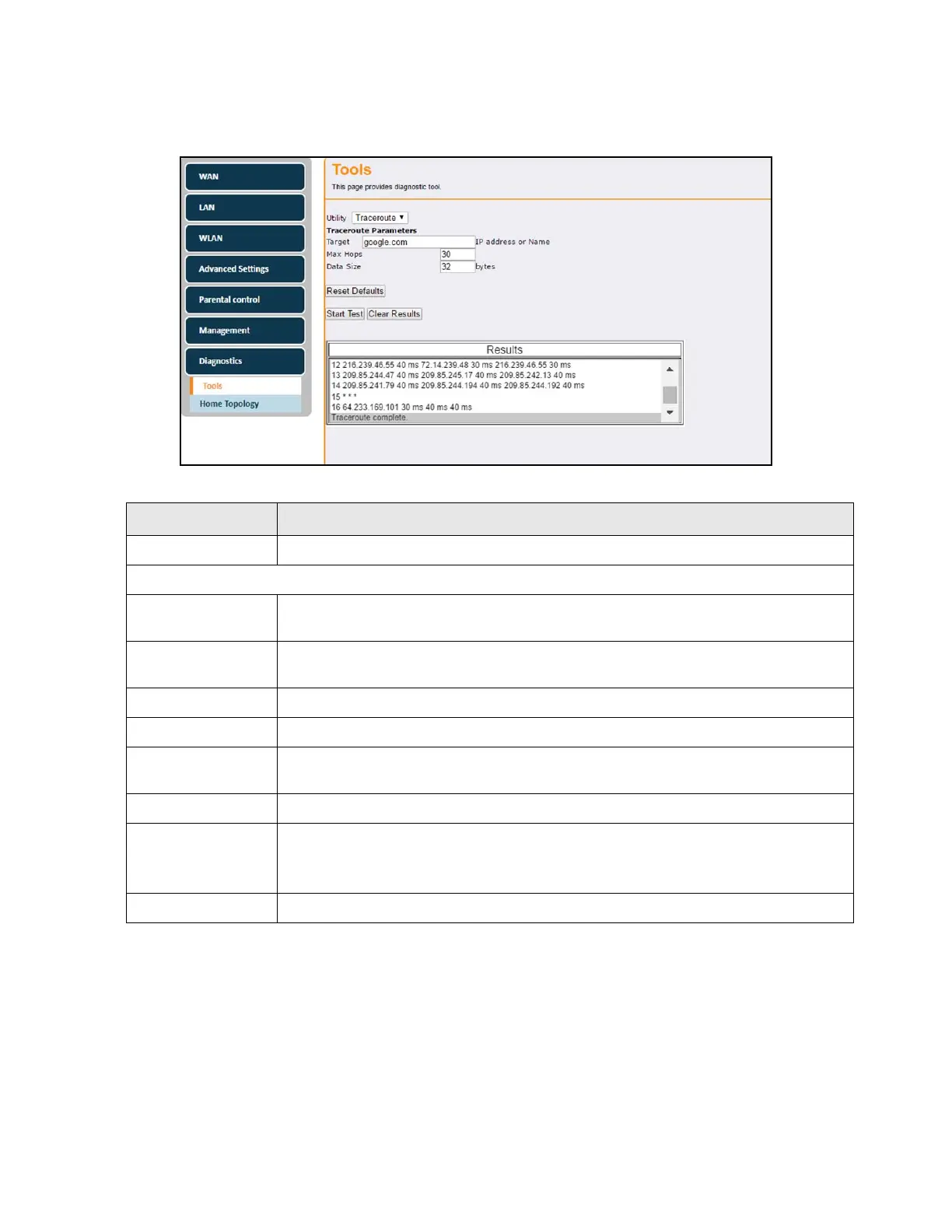

4. Click Start Test. Field descriptions are listed below the screen example.
6.7.2 Using the Home Topology Option
Use the Home Topology option to view the current wireless network connections for the
UBC1301-AA00 Advanced Wireless Voice Gateway.
In the following screen example:
 The BLUE node in the middle indicates the UBC1301-AA00.
Label Description
Utility Provides a drop-down menu to choose Ping or Traceroute.
Traceroute Parameters
Target
Defines the specific IP address or domain (for example, google.com) to which you want
to trace a route.
Max Hops
Defines the maximum number of hops. Hops are the number of routers the traceroute
traverses. Default is 255.
Data Size Defines the data size to send for the traceroute operation. Default is 32 bytes.
Base Port Defines the destination port number. Default is 33434.
Resolve Host
Enable (on) or disables (off) this option. When checked, traceroute tries to find the name
that matches the IP address. Default is Off.
Reset Defaults Resets the Traceroute Parameters to the default values.
Start Test Clear
Results
Defines what you want to do.
 Start Test begins the traceroute.
 Clear Results deletes previous test results in the Results table.
Results Displays the results of the trace.
