2-1
Section 2 NAMES OF PARTS

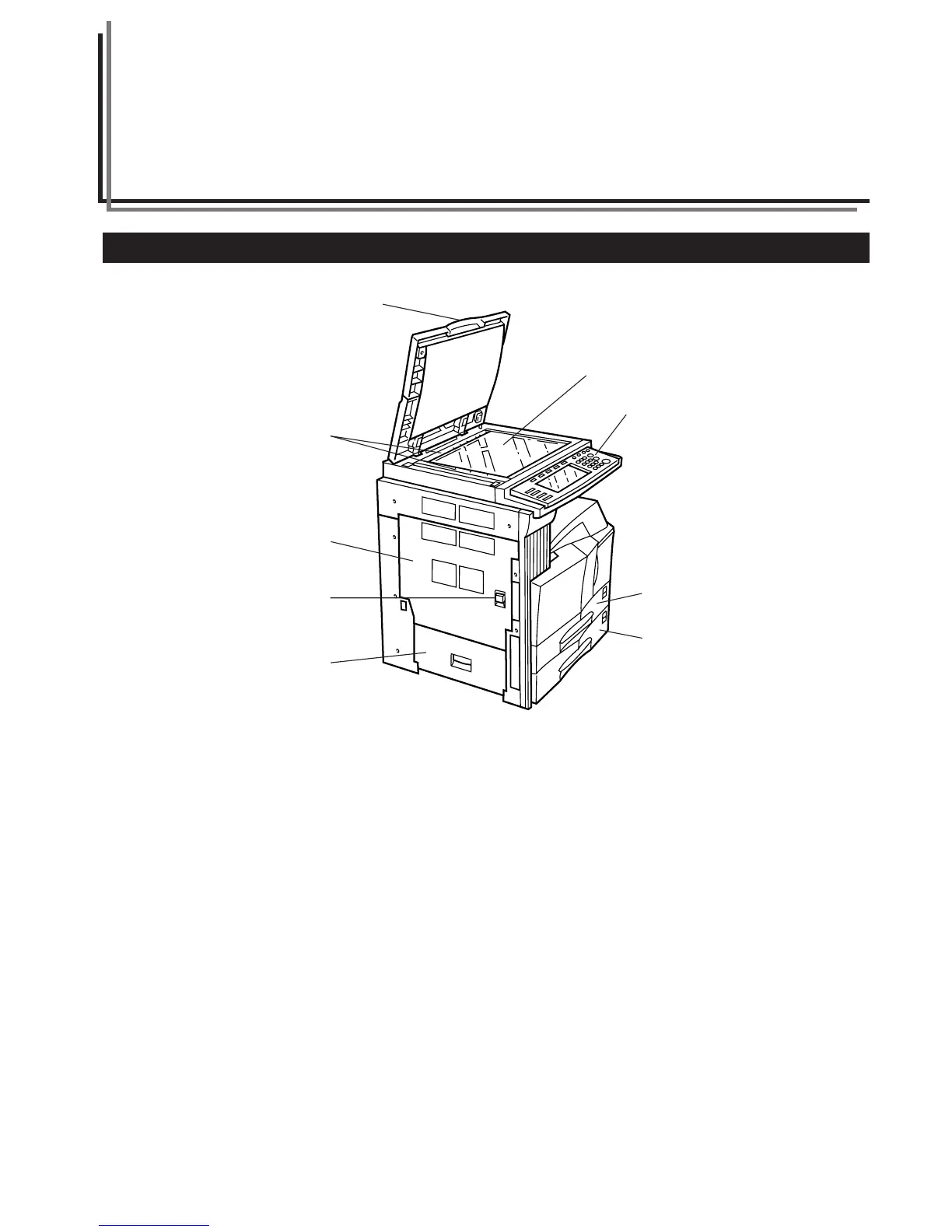

1. Main body
5
1
2
7
8
9
3
4
6
1 Original cover (Option)
(Open/close to set the original on the platen.)
2 Operation panel
(Contains the keys and indicators for operating the copier.)
3 Left cover 1 handle
(Pull up to open the left cover 1.)
4 Left cover 1
(Open when a paper misfeed occurs.)
5 Platen
(Set originals here for copying. Place originals face-down with the edges aligned with the size scales on the left and rear sides of the platen.)
6 Original size scales
(Be sure to align the original with these when setting the original on the platen.)
7 Drawer[Cassette] 1
(Holds up to 500 sheets of standard paper [standard paper specified by our company].)
8 Drawer[Cassette] 2
(Holds up to 500 sheets of standard paper [standard paper specified by our company].)
9 Left cover 2
(Open when a paper misfeed occurs inside the left cover 2.)

Utax CD 1030 Specifications

General

Brand	Utax
Model	CD 1030
Category	All in One Printer
Language	English
