3.3 Touch pad screen(LCD) overview
Below is a picture that shows and describes each unique mode in which relevant functions are
selected and some parameters are configured. To make a selection on the LCD, simply touch
the screen with finger on the text field or icons.

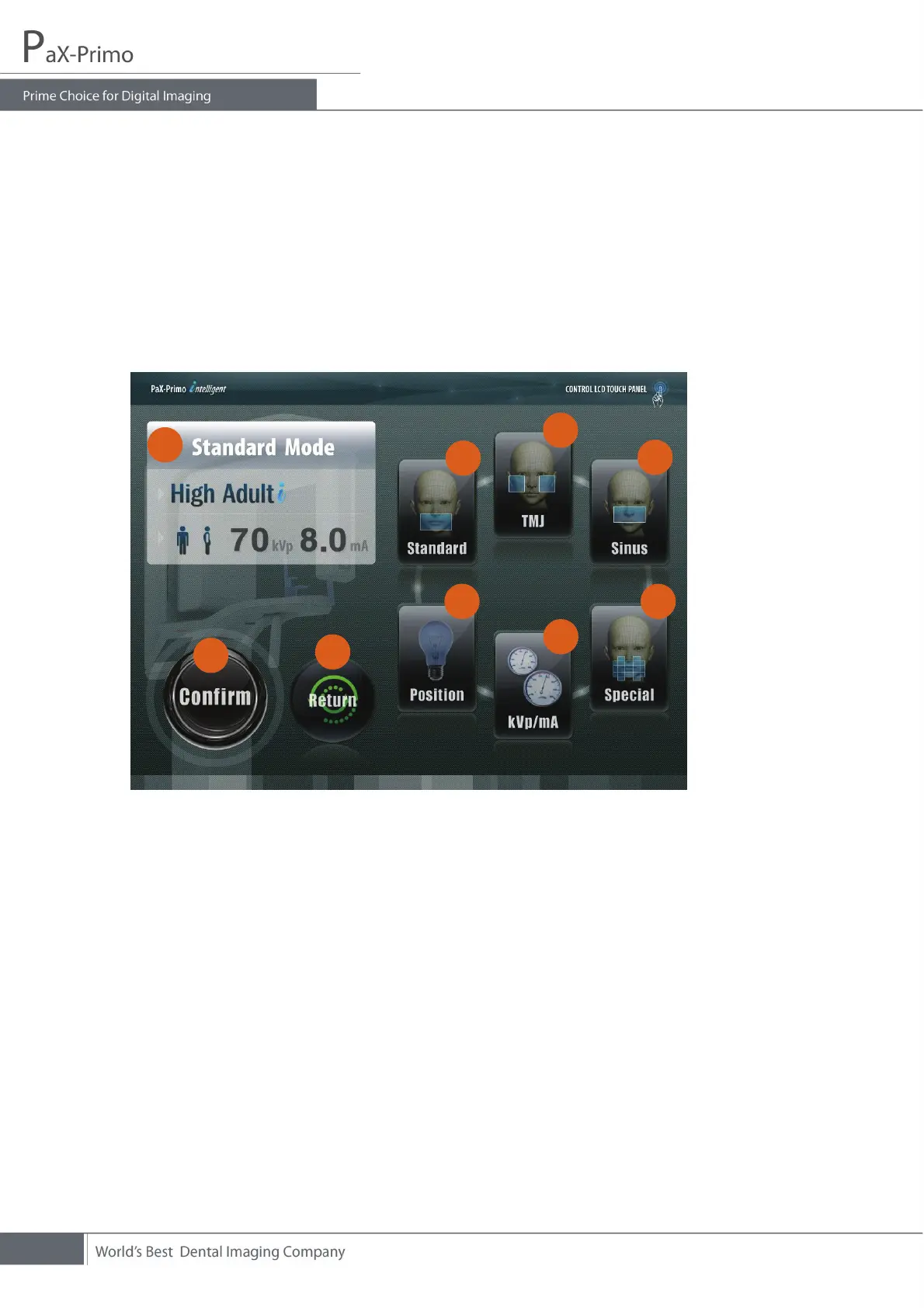

3.3.1 Main screen
① Mode selection information window:
Displays the currently selected information such as imaging mode, patient type, and X-
ray setting values set at each mode.
② Standard mode selection:
Select the standard imaging mode
③ TMJ mode selection:
Select the special imaging mode among Lateral Open, PA Open, Lateral Close, and
PA Close.
z Lateral Open: will take image in a projection view from the side of patient with the
mouth opened
1
2
3
4
7
6
5
9
8
