63
5.4 Acquiring Special Panoramic image
Before acquiring image, make sure that you have:
z Reset a rotating unit of equipment to starting position for new entry.
z Selected the patient record you have created.
z Accessed the main program on touch pad screen to control the equipment.
z Have the imaging capture software on PC.
5.4.1 Preparing the unit and setting the acquisition parameters
From the touch pad panel, do the following procedures to prepare the parameters for a specific
patient and mode.
1. Touch Special button from main screen.

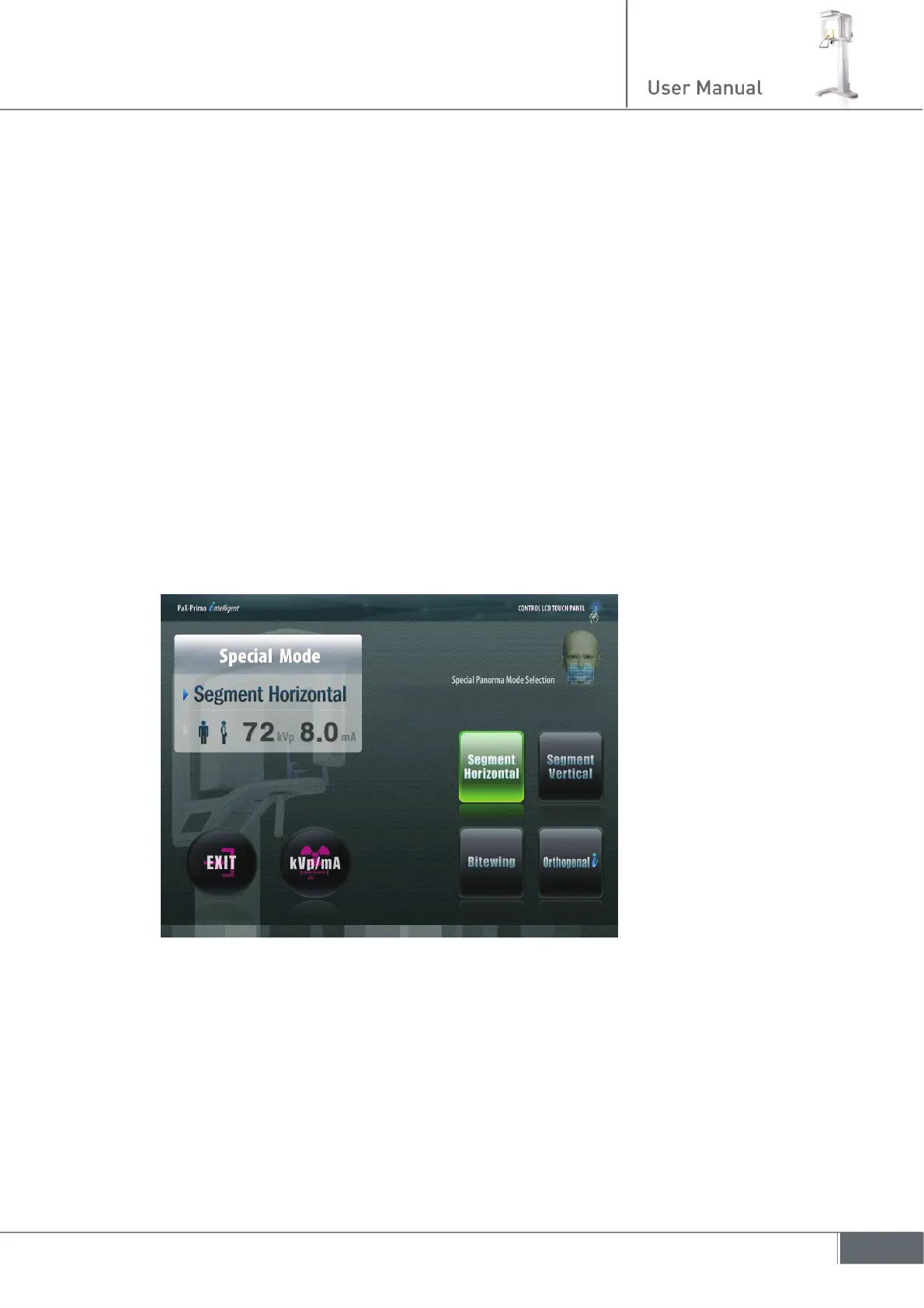

Then the following figure will appear.
2. Select the mode of your choice from 4 different modes.
3. If necessary, adjust kVp and mA for the finer tuning different from default.
4. Touch the EXIT button to return to the main screen.
