89
8.2.2
High volt
age generator
z
T
ube voltage:
50 to 80kV constant potential
z
T
ube current:
2 to 10 mA
direct current
8.2.3 X-Ray
generation
controller
z
Focal spot length to Sensor:
678 mm
z
Exposure
time:
20sec.
z
Cooling:
1
min.
cooling
time
z
X-Ray generation limit:
50 to 90 kV and 2 to 10 mA

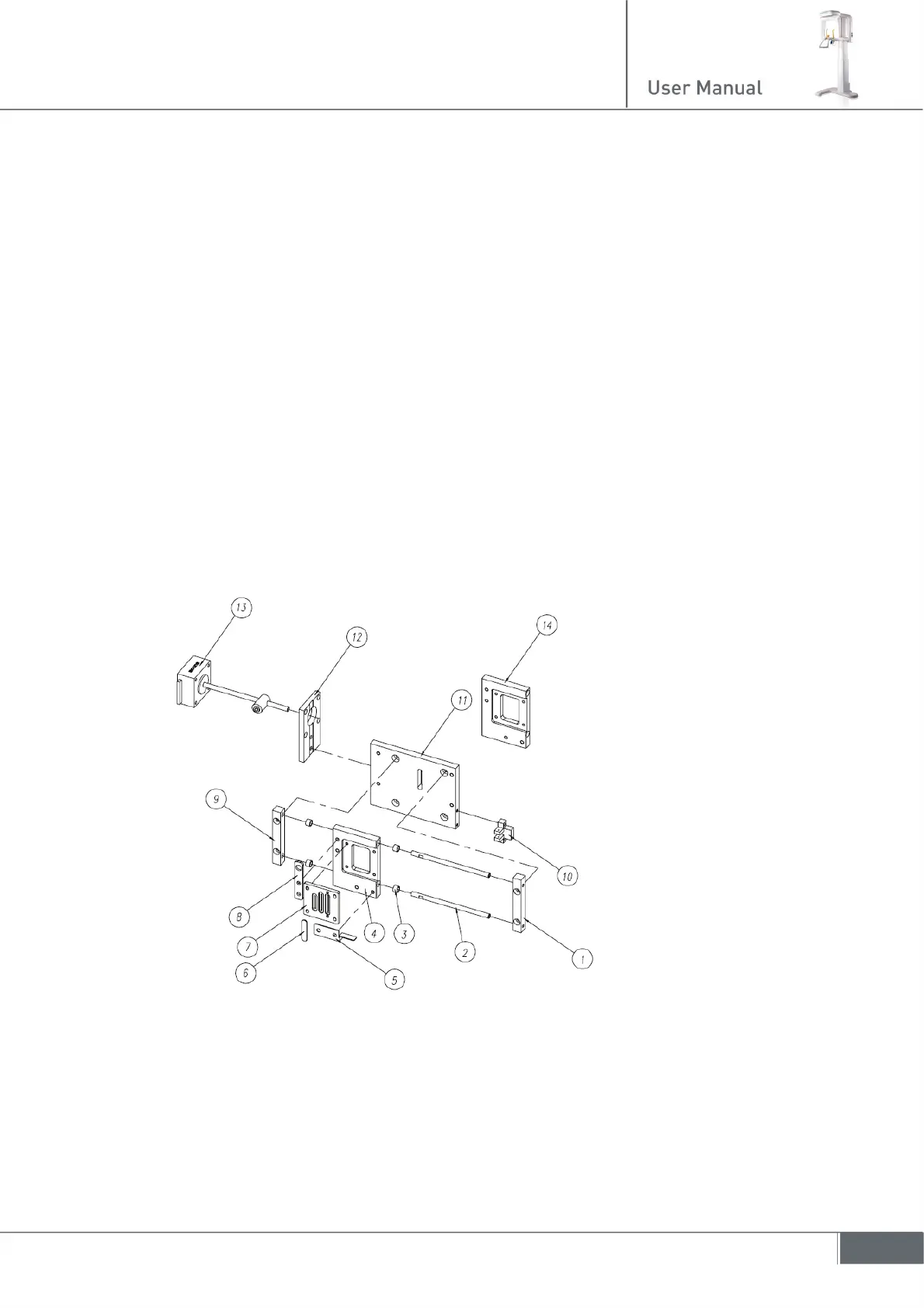

8.2.4
Beam limiter and
it
s dismantled view
z
Whole size:
35mm x38 mm x4mm
z
Hole size:
0.87 mm x 18.48 mm x 2
.5 mm
z
Material
used:
Lead
(Pb)
90
92
Table of Contents
Default Chapter
3
Table of Contents
3
Chapter 1 Introduction
7
Conventions in this Guide
7
Note to the User
7
Warning and Safety Instructions
8
Chapter 2 Pax-Primo I Imaging System Overview
10
System Features
10
Analytical Programs Supported
12
Imaging System Construction
13
Entering the Specific, Capturing Mode
15
Functional Distribution of Roles
17
General View of the Pax-Primo I
18
Exposure Switch
19
Replacement Parts and Positioning Accessories
20
Chapter 3 Imaging Software Overview
21
PC System Requirements
21
Software Overview
22
Touch Pad Screen(LCD) Overview
24
Main Screen
24
Standard Mode
26
Special Mode
27
TMJ Mode
28
Sinus Mode
29
Setting Mode
30
Exposure Time for each Mode
31
Chapter 4 Getting Started
32
Starting the Image Viewer Software
32
Creating a Patient Record
32
Turing on the Pax-Primo I
33
Calling the Imaging Software
34
Selecting the Medium for the Image Transfer
35
Chapter 5 Acquiring Images
36
Acquiring Standard Panoramic Image
36
Preparing the Unit and Setting the Acquisition Parameters
36
Preparing and Positioning the Patient
37
Preparing for Launch of X-Ray
42
Launching the Exposure
44
Post-Processing on the PC
46
Acquiring TMJ(Temporomandibular Joint )Image
48
Preparing the Unit and Setting the Acquisition Parameters
48
Preparing and Positioning the Patient
49
Preparing for Launch of X-Ray
54
Launching the Exposure
54
Post-Processing Image on the PC
55
Acquiring Sinus Image
57
Preparing the Unit and Setting the Acquisition Parameters
57
Preparing and Positioning the Patient
58
Preparing for Launch of X-Ray
63
Launching the Exposure
63
Post-Processing Image on the PC
63
Acquiring Special Panoramic Image
65
Preparing the Unit and Setting the Acquisition Parameters
65
Preparing and Positioning the Patient
66
Preparing for Launch of X-Ray
71
Launching the Exposure
71
Post-Processing Image on the PC
71
Sample Images of Special Mode
73
Chapter 6 Upgrading to the Imaging System with Auto-Focusing Capability
75
The Imaging Modes with the AUTO FOCUSING Implementation Supported
75
How the AUTO FOCUSING(AF) Mode Works
76
Reconstructing Procedures
76
Graphical Explanation
77
Typical Example
78
Comparisons between Standard and AUTO FOCUSING Imaging
79
Chapter 7 Maintenance
82
Storage and Transportation
82
Sterilization and Disinfection
82
Regular Maintenance and Treatment
82
Regular Checkup
82
General Notes
83
Preoperational Stage
83
In-Use Stage
83
X-Ray Generation and Warning
83
Daily Maintenance Tasks
84
Chapter 8 Technical Specifications
85
Unit Technical Specifications
85
General Information
85
X-Ray Generator
86
X-Ray Tube(Toshiba D-051)
86
Electrical Characteristics
86
Dimension of Beam Limiting Device: Collimator
87
Environmental Characteristics
87
Dimension of the Unit
88
Focal Spot Distance
89
X-Ray Generator Technical Specifications
90
X-Ray Tube Specification
90
High Voltage Generator
91
X-Ray Generation Controller
91
Beam Limiter and Its Dismantled View
91
Classification
92
Standards
92
Marks & Graphic Symbols
92
Chapter 9 Service
93
Chapter 10 Disposal of the Unit
93
Chapter 11 Emergency Measures
94
Chapter 12 Recommended X-Ray Exposure Table
95
12.1 Pano Standard
95
12.2 Pano Special
95
