26

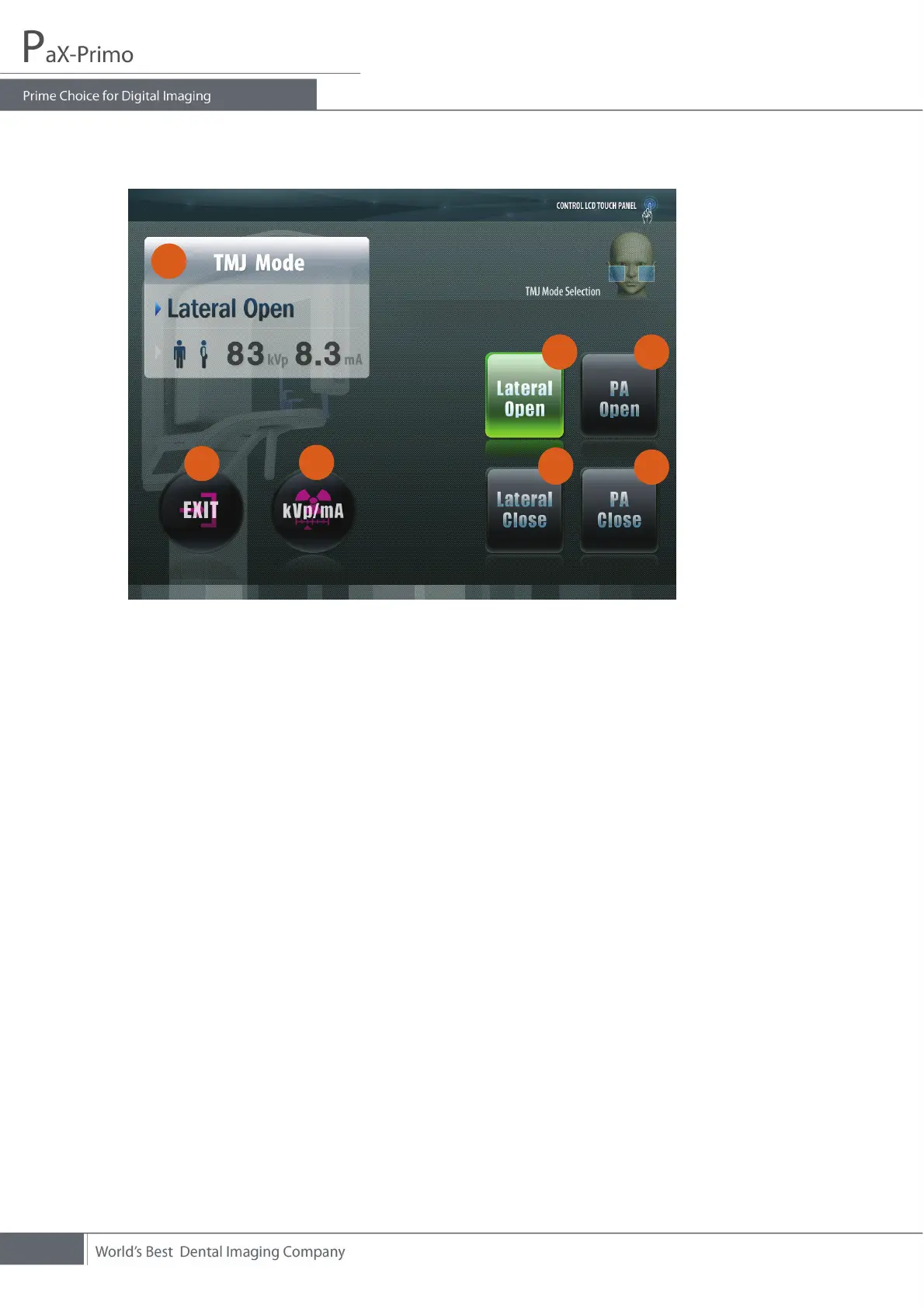

3.3.4 TMJ Mode
① Mode information window
Displays the currently selected information such as imaging mode, patient type, and X-
ray setting values set at each mode.
② Lateral Open
Produces open TMJ images in lateral view.
③ Lateral Close
Produces closed TMJ images in lateral view.
④ PA Open
Produces open TMJ images in posterior-anterior view.
⑤ PA Close
Produces closed TMJ images in posterior-anterior view.
⑥ kVp/mA
Touch “kVp/mA” and adjust tube voltage and current that can generate the best image
for the arch of patient. This adjustment has 1 volt of resolution when changing.
⑦ EXIT
Return to the main screen.
1
7
5
6
3 2
4
To Next Page
