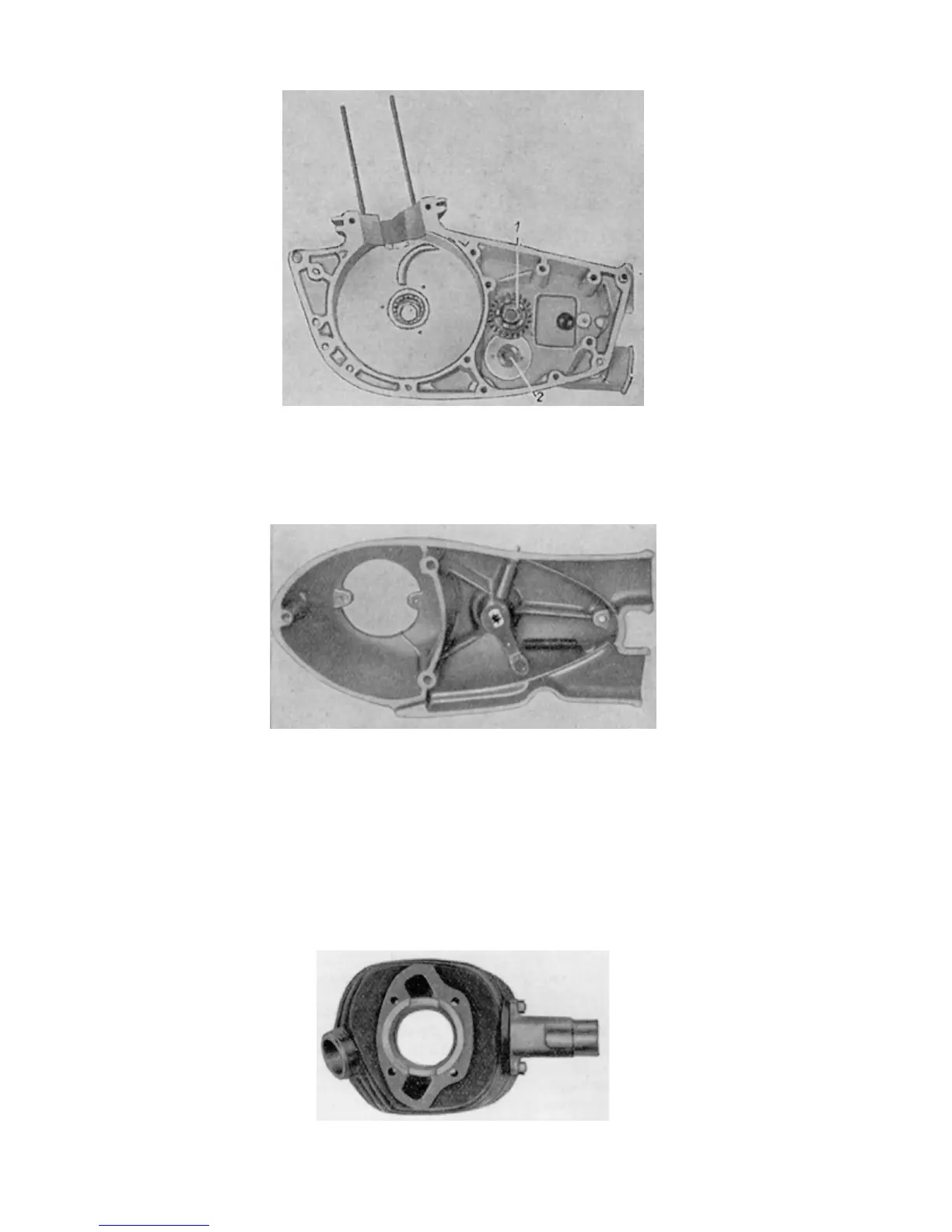

Image 9. Crankcase section
(1)Ratchet
(2)Bushing for countershaft
The main transmission of power including the clutch can be found in the left area while the
alternator and the clutch access are installed in right side, well protected from dirt.
Image 10. Lightmetal lid, right side
2.14
Cylinder and Cylinderhead
The cylinder is made of special grey cast iron and is covered with large scaled cooling fins.
Together with the cylinderhead which is also equipped with cooling fins, it is frimly screwed onto the
crankcase using four long special screws. At the foot of the cylinder a paper seal supplies the
necessary sealing.
Image 11. Cylinder
