3 Operating instructions
3.1 Orientation and intention of the control elements

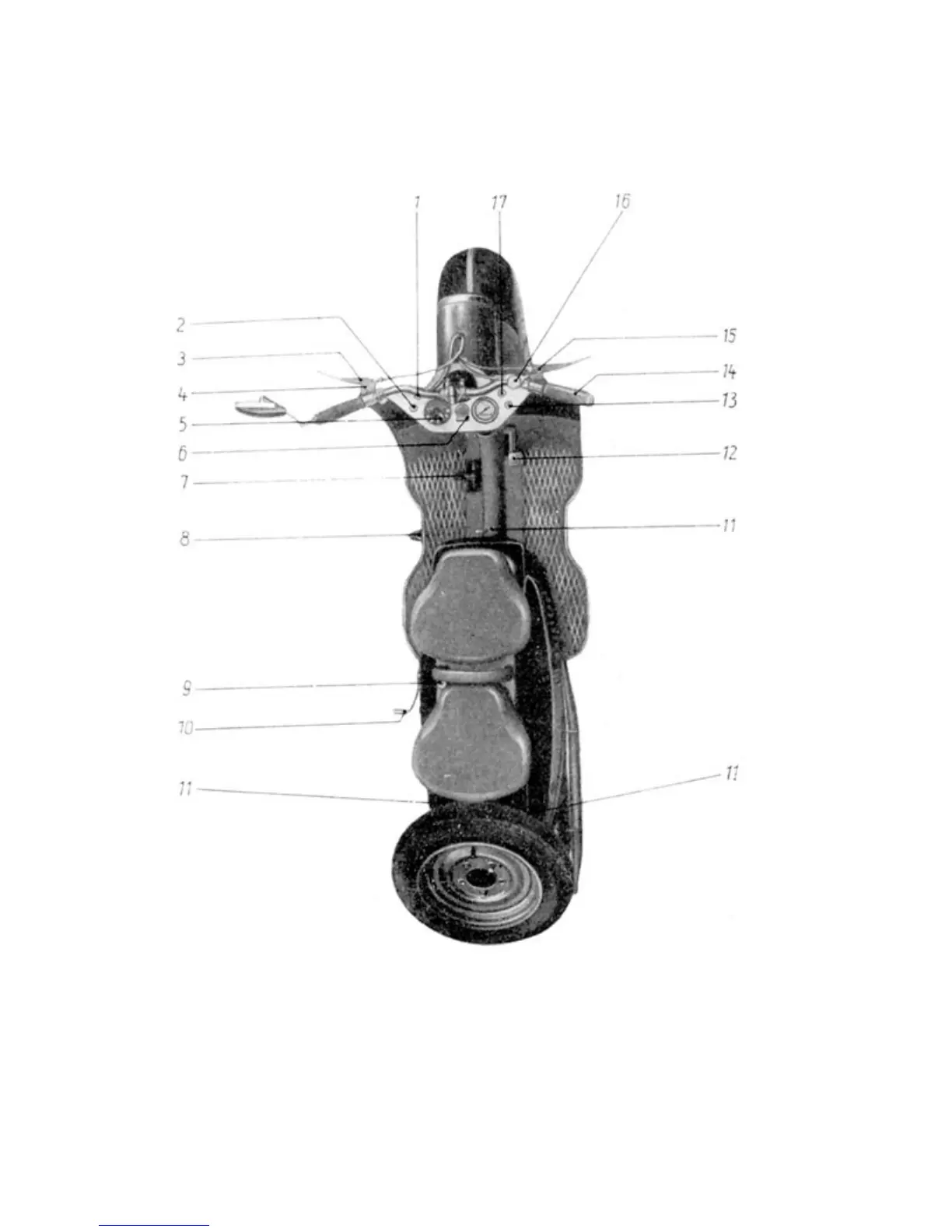

Image 50. Orientation of the control elements
(1) Neutral gear pilot light, (2) Charging status light, (3) Clutch lever, (4) low beam switch and signal
switch, (5) Ignition and light switch, (6) Theft protection, (7) foot gear switch , (8) Sidestand, (9)
Security lock, (10) Kickstart, (11) hood mount (12) foot brake lever (13) Supercharger pilot light (14)
Throttle (15) Hand controlled brake (16) Choke lever (17) Blind pilot light
