3.104 Dipswitch (Low beam switch)
Th dipswitch on the left hand side of the handlebar is mounted for convenient access by the left
hand´s thumb. It can be switched up and down to toggle between hi and low beam.
3.105 Clutch lever
The clutch lever is also found on the left hand side of the handlebar. When actuated (pulled in) the
clutch separates the power train between motor and gear box. The clutch lever must always have a
„dead gear“ of 2-3mm.

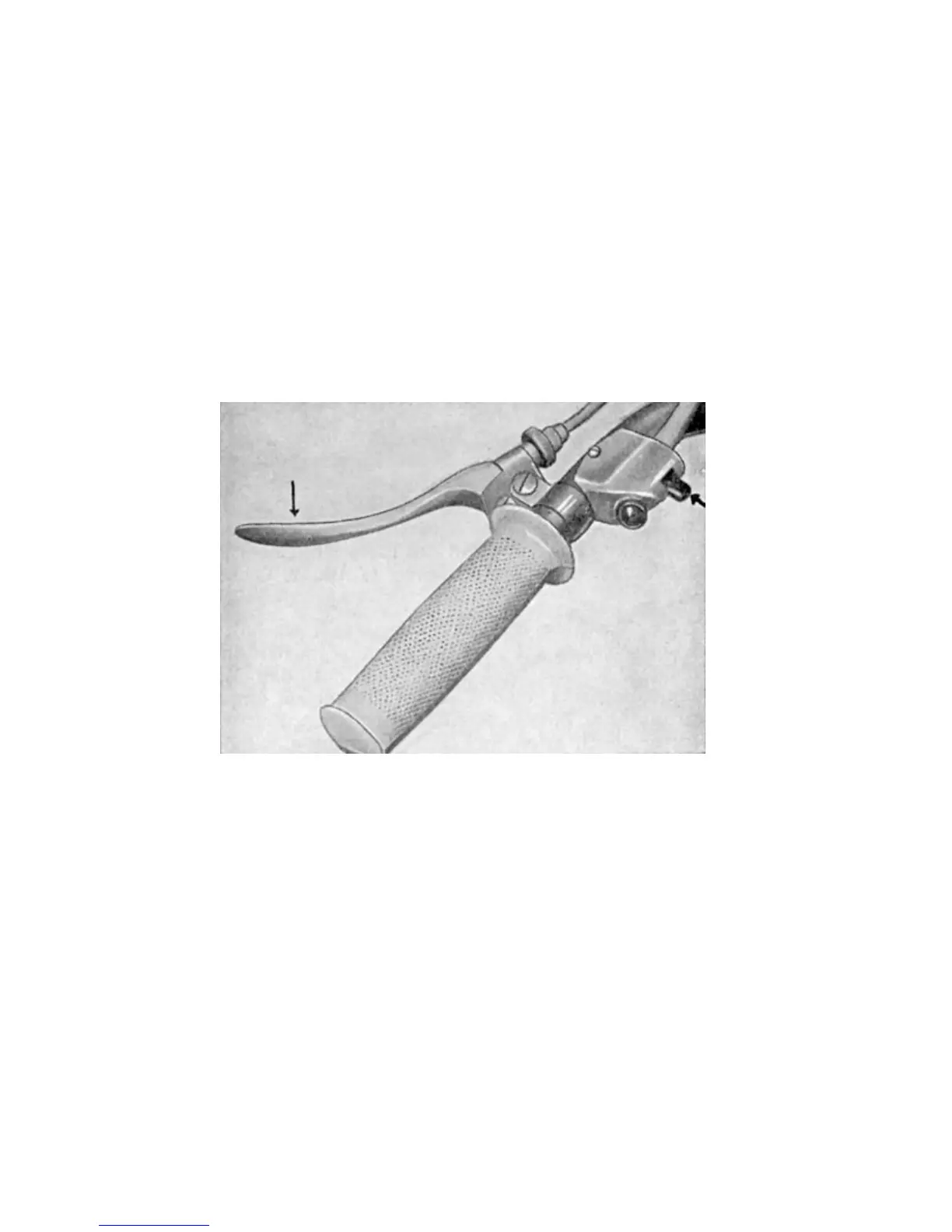

Image 54. dipswitch and clutch lever
By applying force to the lever with your hand, the transition from „dead gear“ to active gear can be
felt. Adjusting the „dead gear“ is done by either a little little pressure screw that is located at the
right hand side of the engine housing or the ring nut located at the clutch lever. (See section 2.211).
The clutch lever must never be released at once, but instead gradually and efficiently, because
otherwise engine and power train would be unecessarily strained. Also when starting up, the
scooter would propably stall.
