that are secured against contortion, are the link between handlebar and steering column. The
handlebar can be put into tha most convenient position for the driver, by simply loosening the upper
clamping bolt.
2.321 Disassembling the balance beam fork
1. Remove speedometer spring and brake cable.
2. Remove axle nuts and take out front wheel.

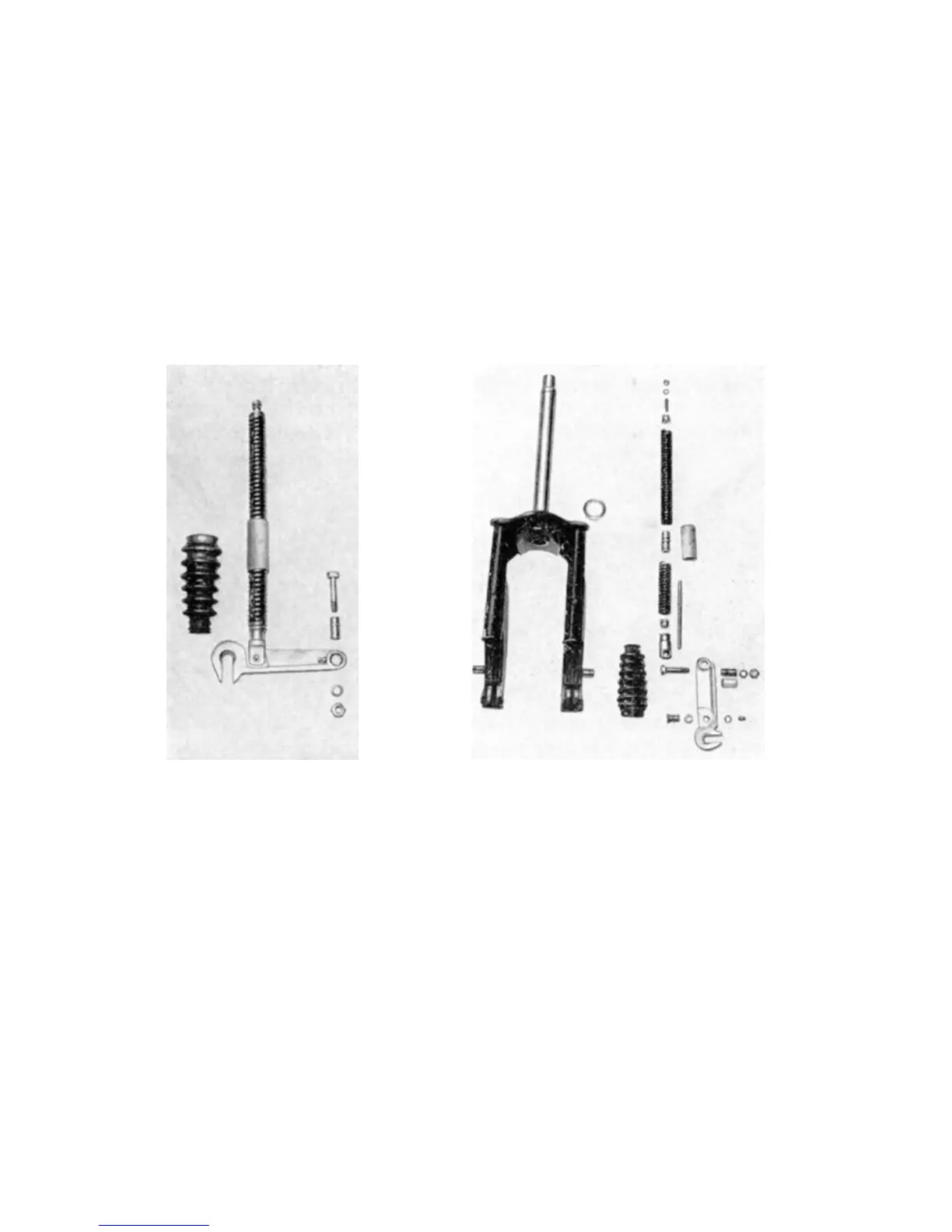

Image 34 and 35. Disassembled front suspenion
3. Loosen steering clamp and remove handlebar from steering column.
4. Remove sleeve from steering column and unscrew counter nuts.
5. Remove front fork including front fender from steering shaft.
6. The fender can be removed, by unscrewing the two fender screws on the sides of the
fender.
7. Push sleeves out of fork pipes.
8. Unscrew both screws fom the fork bridge.
9. After having removed the swinging arm bolts, the entire suspension including
swinging arm can be pulled out.
10. Swinging ar can be seperated from suspension pickup and connecting rod by first
removing the connecting rod´s bolt.
