2.34 Brakes
Mechanical brakes are installed in the front and the rear wheels.

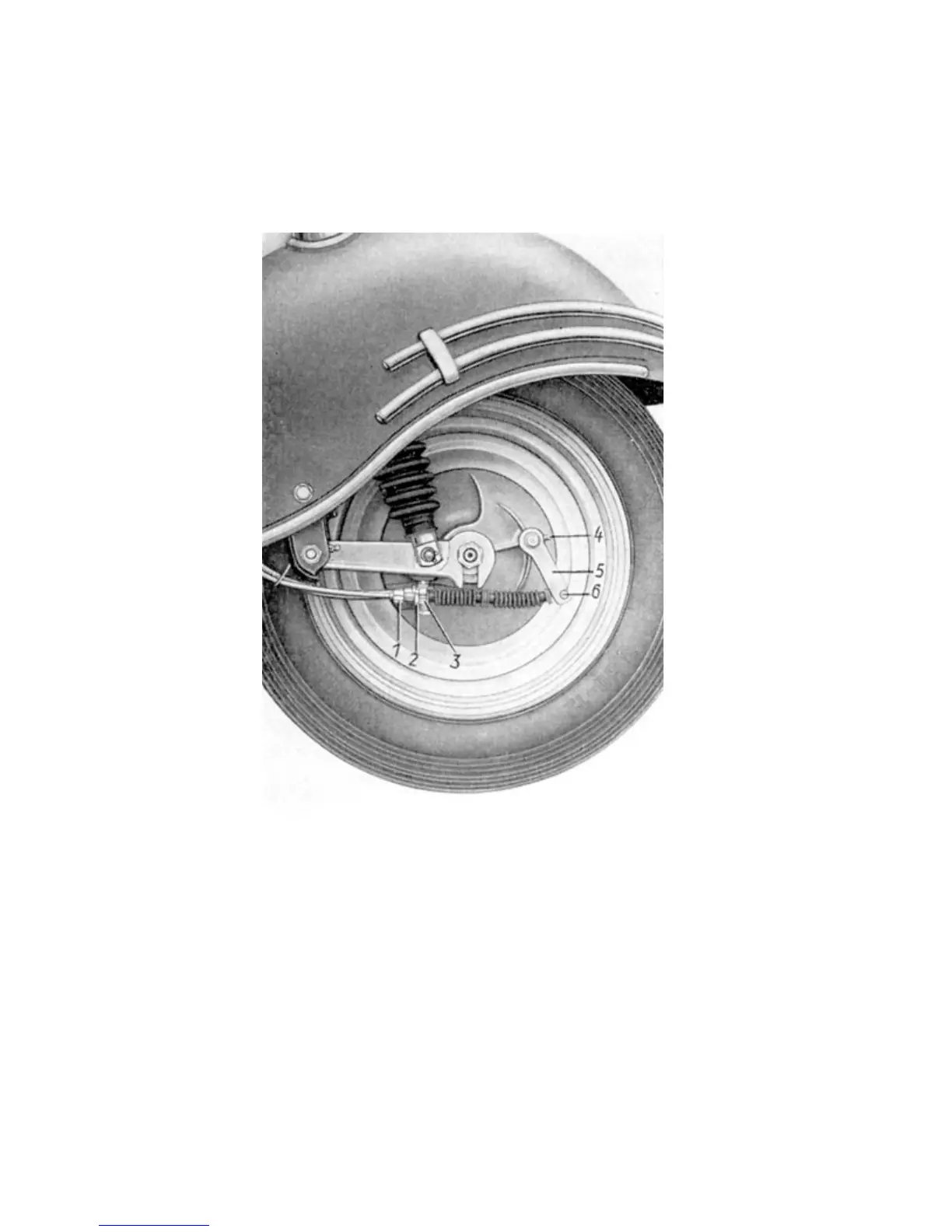

Image 38. Front brake
(1) Adjusting screw (4) Lubrication nipple
(2) Counter nut (5) Brake lever
(3) Break anchor cam (6) Brake cable nipple
The front wheel can be adjusted, at the cable jacket on the handlebar or at the hub. The rear wheel
brake is adjusted by turning a hexagonal nut, that is sitting on the thread at the end of the brake
cable.
The bearings for the brake key shafts are equipped with lubricating elements to ensure smooth
running of the brakes, by keeping the bearings constantly lubricated.
